S-3602D 2-ch Panasonic VW-VBD and CGA series Charger and Adaptor

›  Charger for SWIT S-8D58/8D98 battery

›  Charger for SWIT S-8D62 battery

›  Compatible with Panasonic VW-VBD58

›  Compatible with Panasonic AG-VBR59

›  Compatible with Panasonic D54/D28

›  2-ch simultaneous charging

›  2 DC adapting output sockets

›  4-level LED charging indicators

Features

Panasonic DV battery Charger

For VW-VBD58, AG-VBR59 and CGA-D54/D28

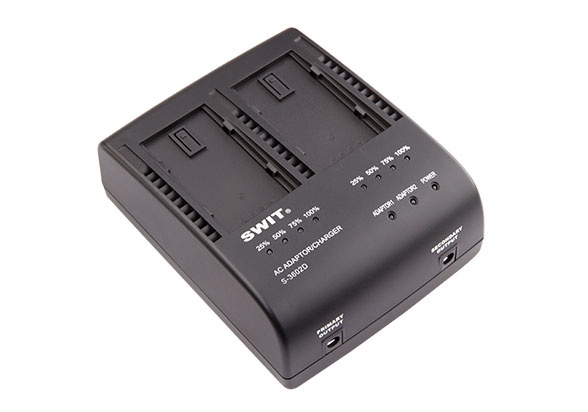

S-3602D is a dual channel charger for SWIT S-8D98, S-8D58 and S-8D62, and compatible with Panasonic VW-VBD58, AG-VBR59 and CGA series D54, D28 DV batteries.

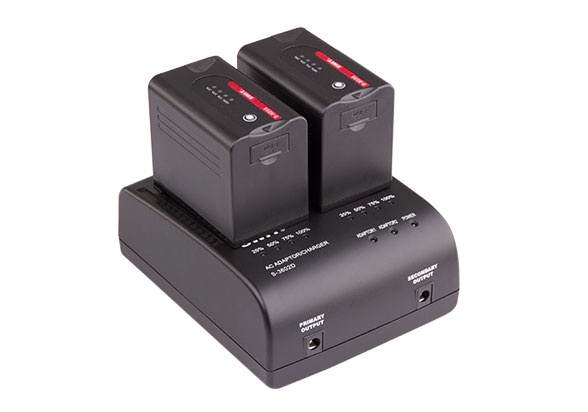

Dual Channel Simultaneous Charging

S-3602D has 2 charging channels, with DC 8.4V, 1.8A charging output for each channel, and can charge 2 batteries simultaneously. The 4-level LED charging indicators are provided for each channel, which indicate the real time capacity by percentage when charging.

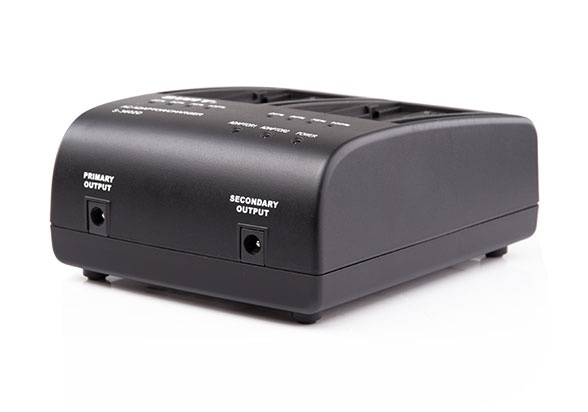

AC-DC Adapting Output

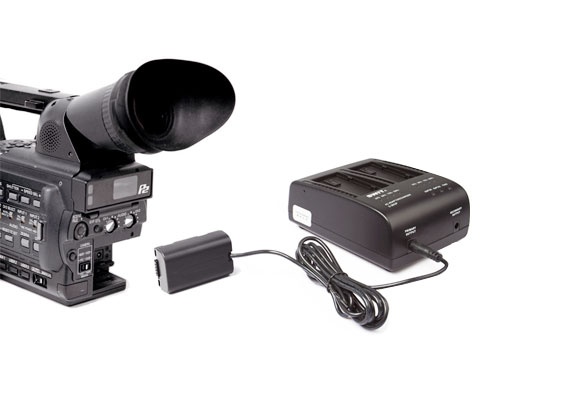

S-3602D has 2x 5.5mm/2.1mm pole sockets for DC adapting output. The DC outputs work simultaneously and provides DC 8.4V, 3.5A in total. Optional accessory: S-7500P dummy Panasonic CGA series battery adaptor for adapting Panasonic DV cameras that use VW-VBD58, AG-VBR59 or CGA-D54/D28 series batteries, or the equipments with the above battery mounts.

Power input

AC 100V-240V 50/60Hz

Charging output

DC 7-8.4V, 1.8A×2

Adapting output

DC 8.4V, 3.5A

Applicable battery

SWIT S-8D98, S-8D58, S-8D62

Panasonic VW-VBD58, AG-VBR59, CGA D54S/D28S

Dimensions

136×110×47mm

Net weight

Net 0.36kg; With package 0.65kg
Basic Package

MSRP

$8222

MSRP

$8222

MSRP

$8222

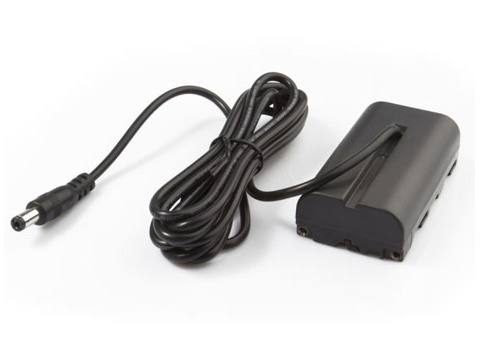

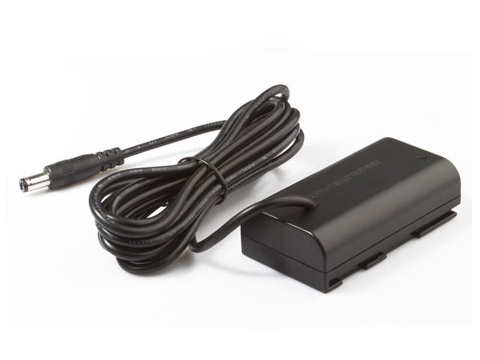

  • S-7500F

    SONY NP-F Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, SONY NP-F970/770 fit

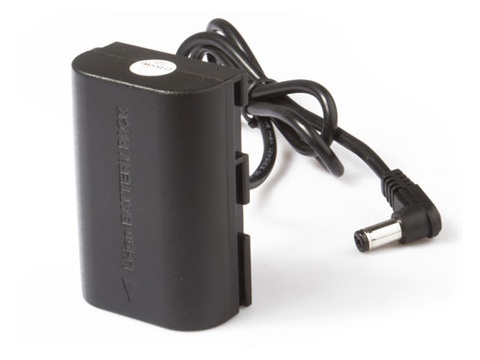

  • S-7500E

    Canon LP-E6 Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Canon LP-E6 fit

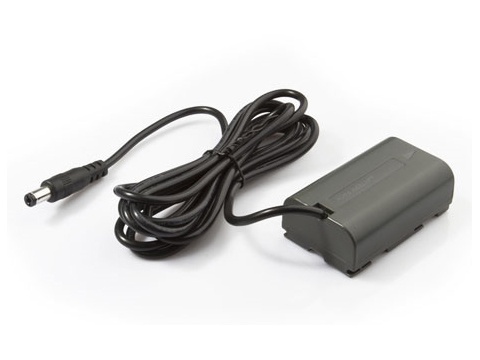

  • S-7500P

    Panasonic Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Panasonic CGA-D54, VW-VBD58, AG-VBR59 fit

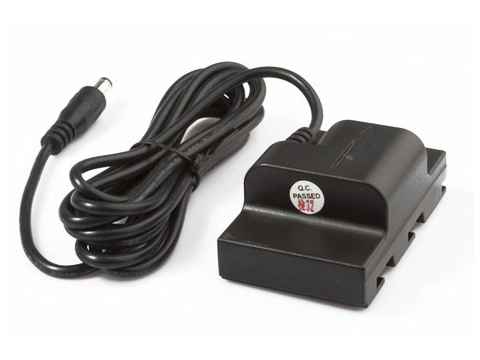

  • S-7500C

    Canon BP Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Canon BP-945 BP-970G fit
  • S-7500i

    JVC SSL Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, SSL-JVC50 type fit
