› Li-ion, 14.4V, 73Wh capacity
› NP-1 Type
› 2x D-tap DC output socket
› 4-level LED power indicator
› Not restricted by IATA
› Multiple circuit protections

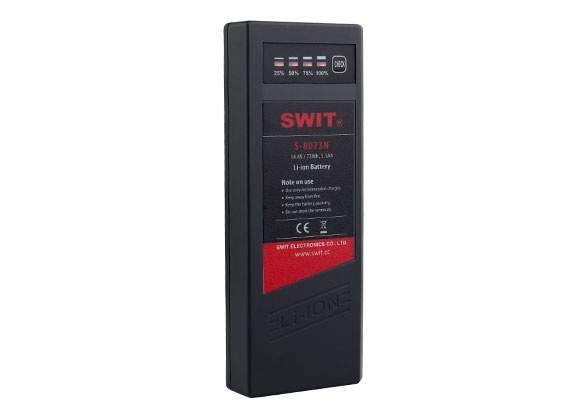

NP-1 Type Camera Battery
S-8073N is the NP-1 type rechargeable
Li-ion battery pack for professional video
cameras, as well as the audio mixers of
NP-1 battery connection.
73Wh / 5.1Ah High Capacity
Consists of 8pcs 18650 battery cells, and reach 73Wh / 5.1Ah high
capacity, not restricted by IATA air transportation regulations.
Constant 66W, 5.5A output.

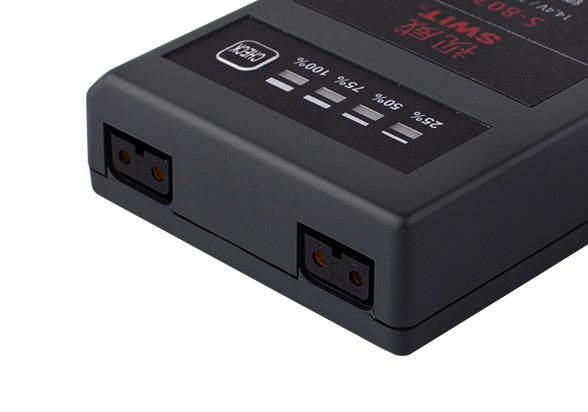

2x D-tap DC output socket
S-8073N has two D-tap DC output sockets, with max
50W, 3.5A output per socket.
You can also charge S-8073N via the D-tap socket by
SWIT portable single channel charger PC-U130B/B2.

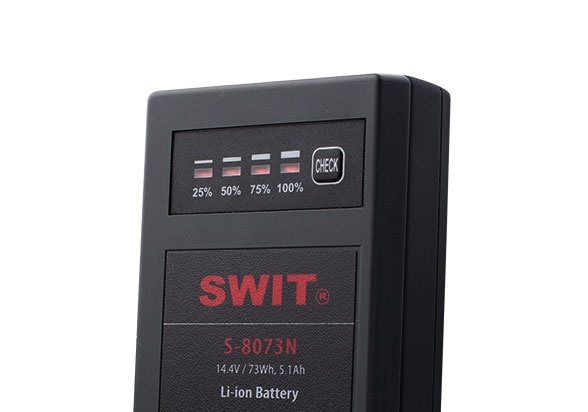

4-level LED Power Indicator
On the front of the battery, there’re 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of
capacity before using.
Charging via D-tap
You can use SWIT PC-U130B2 to charge S-8073N via D-tap socket. It takes 4 hours to fully charge 2x S-8073N, quick and convenient.
Nominal Voltage | 14.4V |
Capacity | 73Wh/5.1Ah |
Max output power | In total:66W |
| Electrodes:66W,5.5A | |
| D-tap:66W,5.5A | |

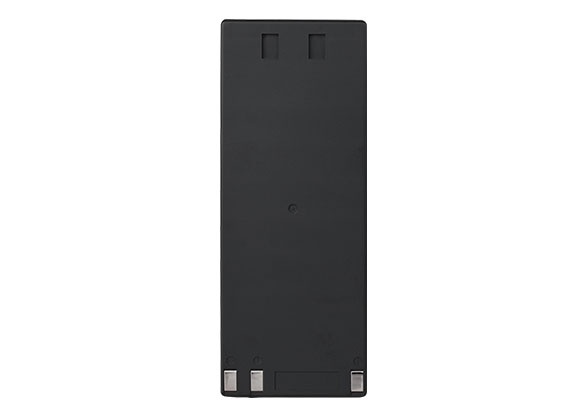

Mount Type | NP-1 |
Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C（Capacity and Max Load may decrease when operating below 0°） |
Net weight | Approx 0.45kg |
Dimensions | 185×72×25mm |
