› Li-ion, 14.4V, 130Wh capacity
› D-tap output socket
› 100W/8A power output
› 4-level LED power indicator
› V-mount connection
› Multiple circuit protections

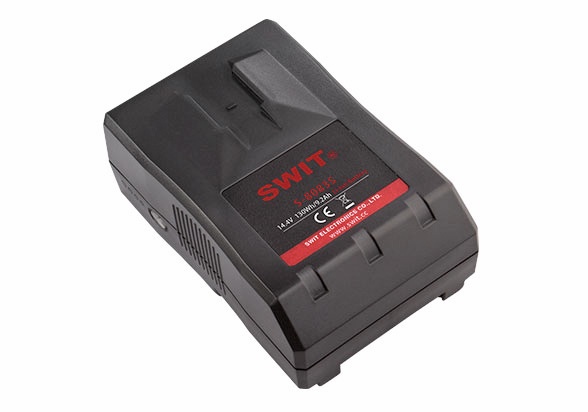

V-mount Camera Battery
S-8083S is the V-mount rechargeable Li-ion battery
pack for professional video cameras. It’s compact
design, smaller in size.
130Wh / 9.2Ah Capacity
Consists of 12pcs 18650 battery cells, and reaches
130Wh/9.2Ah high capacity.
Run approx 4 hours for normal 30W ENG cameras.

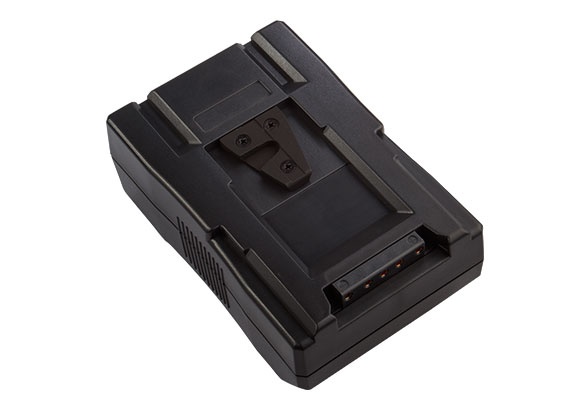

Reliable V-mount Connection
S-8083S is the standard V-mount
connection and we adopt the high quality
fiber glass V-wedge that ensures the reliable
mounting.

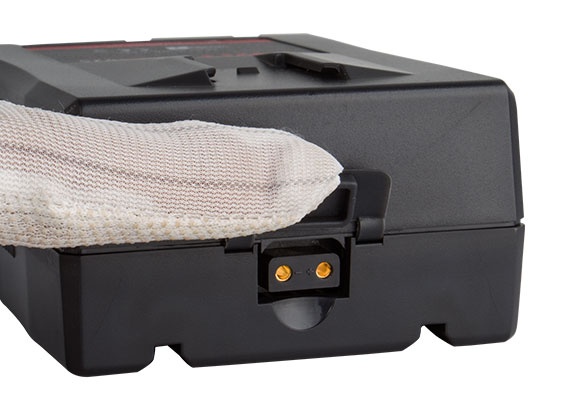

Build-in D-tap DC Output Socket
D-tap DC output socket is equipped on the top side of S-8083S
battery, for DC14.4V (Nominate) connection, such as on-camera
lights, monitors, wireless transmitter, etc.
The Max Power from D-tap is 100W, 8A.

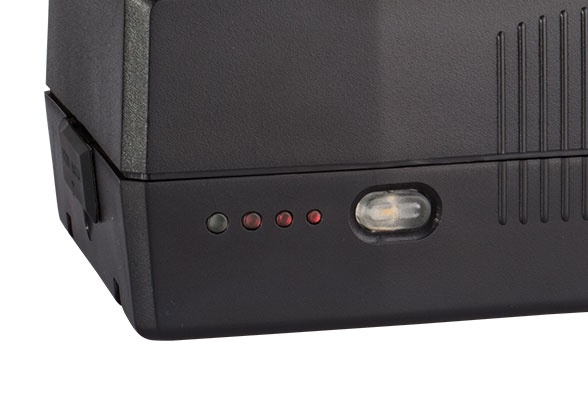

4-level LED Power Indicator
On the side of the battery, there’re 4-level LED power indicators to check the
battery remaining capacity. You can get a quick view of capacity before using.
Nominal Voltage | 14.4V |
Capacity | 130Wh/9.2Ah |
Max output power | In total:200W |
| Electrodes:200W,16A | |
| D-tap:120W,10A | |
Mount Type | V-mount |
Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C（Capacity and Max Load may decrease when operating below 0°） |
Net weight | Approx 0.8kg |
Dimensions | 134×88×52mm |
