› Mini size GaN charger
› 2x USB-C and 2x USB-A simultaneous
› Max 120W power output
› Charge camera batteries with USB-C ports
› Charge Laptops, Tablets and Smart devices
› Provide 2x USB-C to C cables
› EU and UK standard for option
Mini Size 120W GaN Charger
UC-2120 is a GaN (Gallium Nitride) charger which is
physically smaller and lighter weight than regular
silicon chargers, and able to conduct far higher
power and keeps heat to a minimum.
The USB-C power delivery could charge majority of
Laptops, Tablets, Smart phones devices, and camera
batteries with USB-C ports.

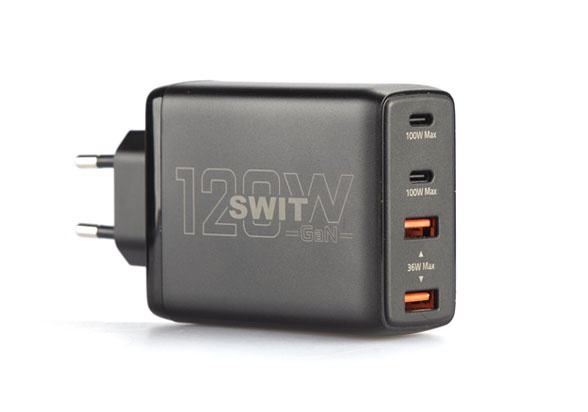

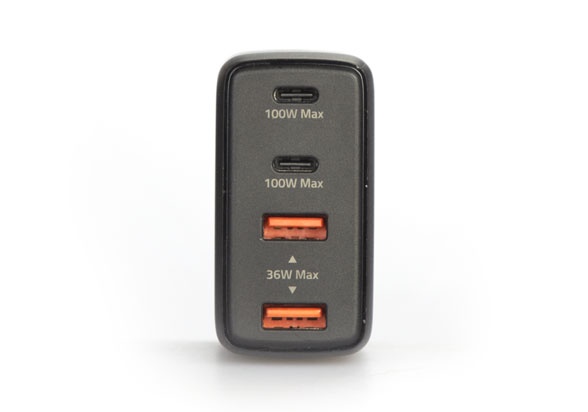

2x USB-C + 2x USB-A Simultaneous
UC-2120 GaN charger provides 2x USB-C and 2x USB-A ports
simultaneous out. The power output of each port would be limited if
multiple ports are used together, Max 120W output.
Single USB-C out: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A; (100W)
Dual USB-C out: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A; (60W×2)
Charge Camera Batteries
The camera batteries with USB-C port can be charged at fast speed:
SWIT V-mount battery MINO-S70 (70Wh): 2 hours fully charge
SWIT V-mount battery MINO-S140 (140Wh): 3 hours fully charge
SWIT V-mount battery MINO-S210 (210Wh): 4.5 hours fully charge
SWIT B-mount battery HB-A290B (290Wh): 4.8 hours fully charge
Charge Camera Batteries
The camera batteries with USB-C port can be charged at fast speed:
SWIT BP-U battery LB-SU90C (90Wh): 2 hours fully charge
SWIT BP-A battery LB-CA90C (90Wh): 2 hours fully charge
SWIT NP-F battery LB-SF65C (65Wh): 2.5 hours fully charge
SWIT VBR59 battery LB-PD65C (65Wh): 2.5 hours fully charge
Charge Laptops and Smart Devices
You can charge high power laptops or tablets via USB-C port, and
lower power smartphones, earphones by USB-A port together,
for travel carrying convenience.

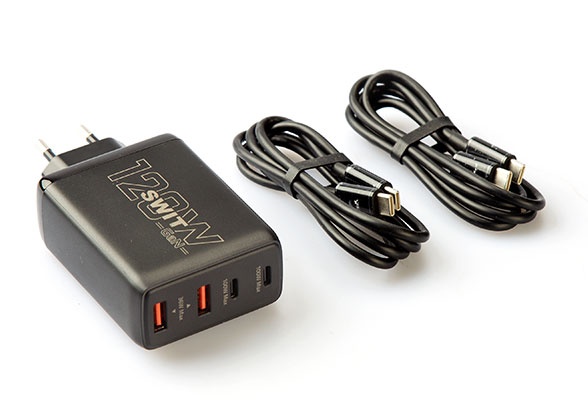

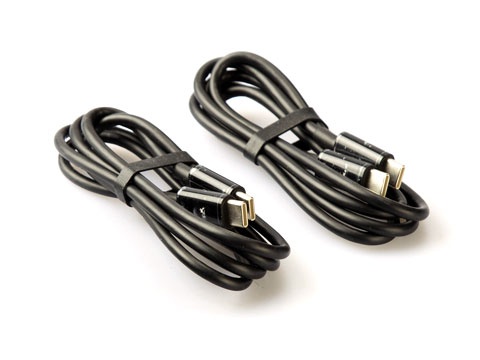

Provide 2x USB-C to C Cables
The UC-2120 package provides 2x USB-C to USB-C
cables for charging 2x batteries together.

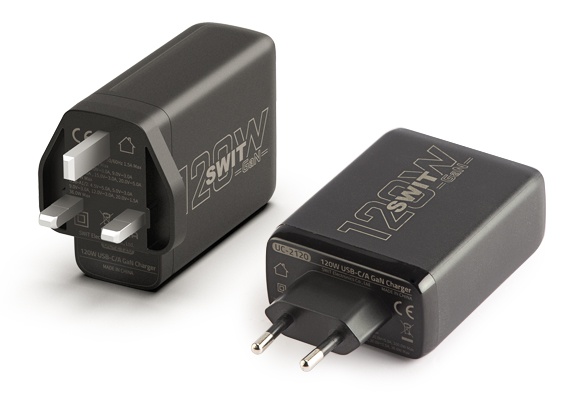

EU and UK Standard for Option
You can select EU power plug Type C (SKU: UC-2120E) or UK power plug Type G (SKU: UC-2120U) for option, CE and UKCA certificated.
Input Voltage (Nominal) | AC100V-240V, 50/60Hz |
Voltage Range | AC 90V-264V |
Output power | 120W Max |
USB-C only | USB-C: PD 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, Max 100W |
USB-A only | USB-A: 4.5V/5A, 5V/3A, 9V/3A, 12V/3A, 20V/1.5A, Max 36W |
USB-C + C | USB-C: PD 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A, Max 60W+60W |
USB-A + A | USB-A: 5V/3A, Max 15W in total |
USB-C + A | USB-C: PD 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A USB-A: 5V/3A, 9V/2A, 12V/1.5A Max 100W+18W |
USB-C + C + A | USB-C: PD 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A USB-A: 5V/3A, 9V/2A, 12V/1.5A Max 45W+45W+18W |
USB-C + A + A | USB-C: PD 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A USB-A: 5V/3A Max 100W+15W |
USB-C + C + A + A | USB-C: PD 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A USB-A: 5V/3A Max 45W+45W+15W |
Working Environment | Temp -10°C to 40°C; Humidity 10%RH to 90% RH |
Storage Environment | Temp -10°C to 85°C; Humidity 10%RH to 90% RH |
Dimension | 77.3mm × 60.5mm × 31.5mm |
Weight | 255g |
