› 小さなVマウントバッテリー、ポケットフィット
› RED V-Raptorのインストールをサポート
› 70Wh/4.9Ah高容量
› 100W/8A一定電力負荷
› 1x Dタップ出力および充電入力
› 1x USB-A 5V/2A出力
› 1x USB-C 35W入力および65W出力
›4ステップLED電源指示器
ソニーとレッドの両方の電源情報
› 無線内部技術
›強い1.2メートルの落下証明
› 複数回路保護

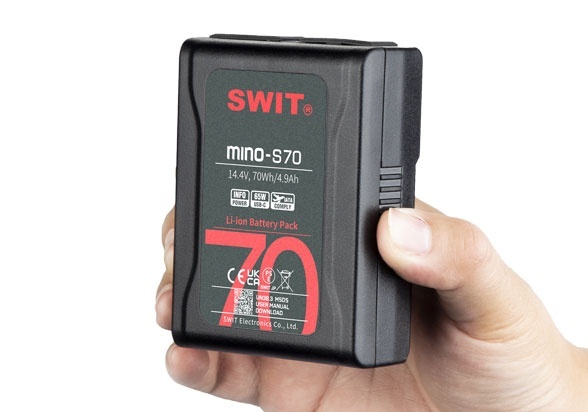

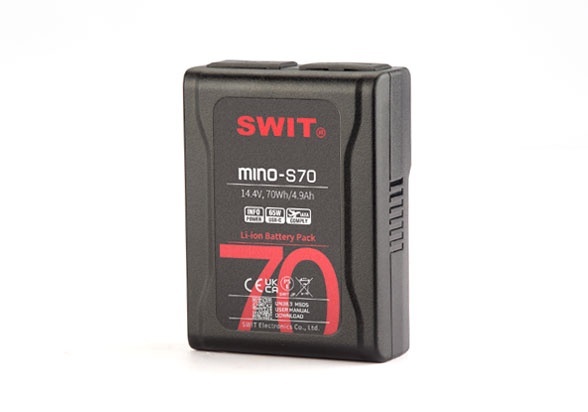

Tiny Size 70Wh V-mount
MINO-S70 is a pocket fit tiny size V-mount battery
for handheld cameras, monitors and other camera
gears. It powers RED V-raptor for at least 1 hour
and offers minimum weight for stablizer installation.
Thinner and Light Weight

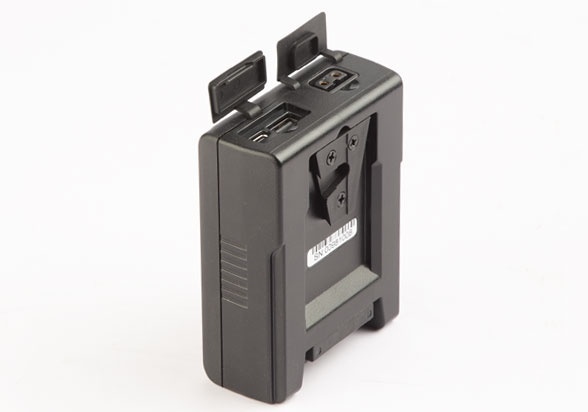

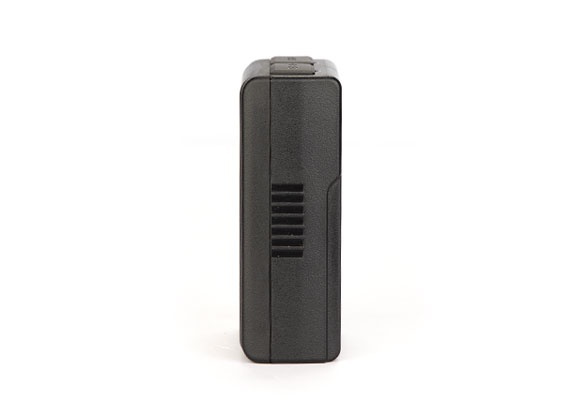

The MINO-S70 is 37mm thickness, standard
V-mount connector, and only 419g light weight
for handheld camera gears.
70Wh, 100W/8A Load
MINO-S70 consists of 4 high capacity cells, with
70Wh/4.9Ah high capacity, and support at least
100W/8A constant high load output.
D-tap, USB-A and USB-C
The tiny size MINO-S70 didn't compromize on DC sockets.
D-tap x1 - 100W/8A load (Support charging input)
USB-A x1 - 5V/2A output
USB-C x1 - 65W output and 35W charging input
USB-C 35W Charging Input
MINO-S70 battery can be charged by USB-C charger,
supports PD 5V/9V/12V/15V/20V(Max) 1.75A, 35W charging
input, which means you can fully charge the 70Wh battery
within 2.5 hours.
USB-C 65W Power Output
You can power laptop via USB-C by MINO-S70 battery on the filmset.
Supports 5V 3.25A, 9V 3.25A, 12V 3.25A, 15V 3.25A and Max 20V
3.25A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols.
(For Macbook Air/13, Macbook Pro 13/15/16, Huawei Matebook
E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and almost all laptops with
USB-C ports)
Wire-Free Internal Tech
MINO-S70 has innovative “Wire-Free” internal technic.
All the cells, D-tap, USB-A, USB-C, power indicator
devices are directly soldered onto PCB, no connecting
wires, to reduce internal resistance effectively, and
make the circuit stable, safe, and reliable.
Battery plate | V-mount |
Nominal voltage | 14.4V |
Capacity | 70Wh, 4.9Ah |
Power IN&OUT | Electrodes: 100W 8A out, 16.8V 3A in |
D-tap: 100W 8A out, 16.8V 3A in | |
| USB-A: 10W, 5V/2A out | |
USB-C: Max 65W out, 5V/9V/12V/15V/20V(Max) 3.25A BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP Max 35W in, 5V/9V/12V/15V/20V(Max) 1.75A | |
Dimension | 105×79.6×37mm (Fit RED Raptor) |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
Net weight | Net 0.41kg; With package0.45kg |
