› 28.8V（22-33.6V）高電圧
› 標準Vマウント接続
> 420Whの大容量
› 500W一定的な高負荷、650Wピーク負荷
› 33.6V 100W高速充電サポート
› 5-LEDデジタルパワーインジケーター
› 複数回路保護
Huge V-mount Battery for Lights

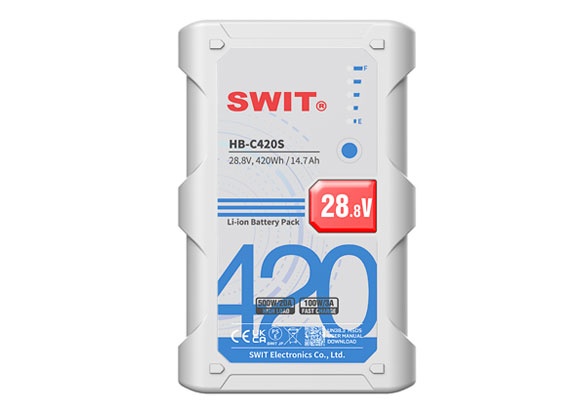

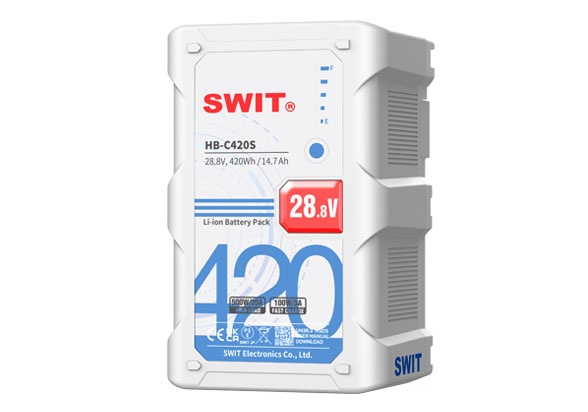

HB-C420S provides the world’s largest capacity: 420Wh of
handheld V-mount battery, and the world’s largest constant
power load: 500W, to drive high power cine lights at longest
time.
For example, 2x HB-C420S could power Aputure LS 600C PRO
at 100% output, and at least 1.2 hours.
28.8V, 420Wh, 500W Load
HB-C420S consists of 24pcs Li-ion cells, 28.8V
(22-33.6V) high voltage, 420Wh large capacity,
500W constant load.
Please do not use the battery on the device that
doesn’t support 22-33.6V input.
500W Constant High Load
HB-C420S outputs at least 500W high load even at
1% capacity (Peak load up to 650W), to drive high
power gears like the cines lights.
48V 750W Power Solution
Use SWIT dual batteries light stand adaptor
TD-R230S, 2x HB-C420S could output 48V
750W to power cine lights like Skypanel
S30/60/120, Orbiter, Creamsource Vortex 4
& Vortex 8, Aputure Nova P300/P600 etc.
Creamsource Vortex 8 Power
2x HB-C420S and TD-R230S power adaptor could
output 48V 750W DC to full power drive Creamsource
Vortex 8 light which requires 650W power.
The 2 batteries totally have 840Wh capacity,
comparable with a large floor battery but it’s attached
on light stand for easy movement, and will power the
Vortex 8 for at least 1hr 20min.
100W Fast Charging
HB-C420S supports DC 33.6V 100W fast
charging by PC-P461S charger, to save
more than 60% charging time. The 420Wh
battery can be charged from 0 to 80%
after 3.9 hours, and fully charged within
5.3 hours.
Nominal Voltage | 28.8V |
Capacity | 420Wh/14.6Ah |
Power Load | 500W constant, 650W peak |
Charging | DC 33.6V, 3A |
Mount Type | V-mount |
Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
Net weight | Net 2.07kg; With package2.15kg |
Dimensions | 155×101×80mm |
