› 14.4V/28.8V バイ電圧 B マウント
› 196Wh高容量
›200W一定的な高負荷
› 33.6V 100W高速充電
› Dタップ11-16.8V出力×2
› OLED 電源情報ディスプレイ
› 内蔵LEDトーチ
›強い1.2mのドロップオフの証拠
› 複数回路保護

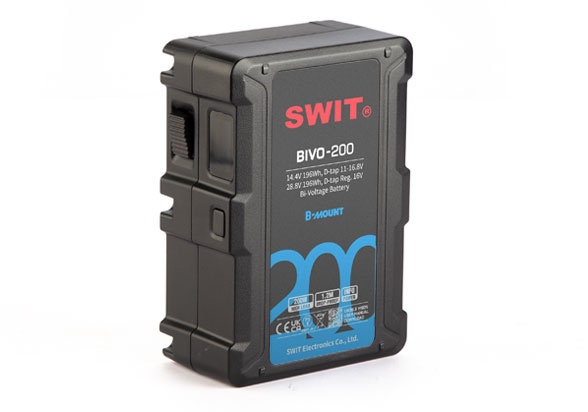

14.4V/28.8V Bi-Voltage
B-mount Battery
BIVO-200 is a 14.4V(10.8-16.8V) and 28.8V
(22-33.6V) Bi-voltage B-mount battery, for
ARRI/BMD cameras and various compatible with
regular voltage cameras and cinegears.
The battery will recognize the ID pin resistor
value of the B-mount plate, and then output
14.4V or 28.8V, without any misuse risks.
196Wh Capacity, 200W Load
BIVO-200 battery has 196Wh large capacity, run
more than 2 hours on ARRI ALEXA 35 camera.
The battery provides at least 200W constant high
load for cine cameras and devices.

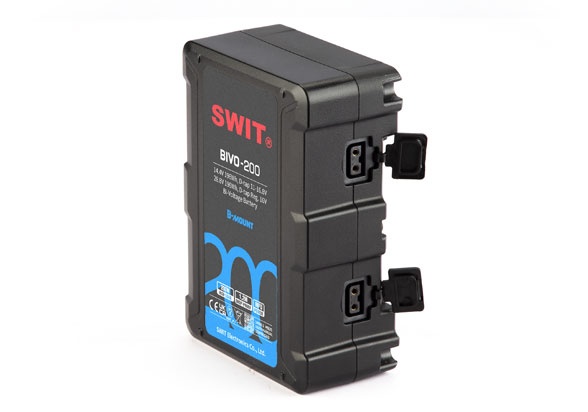

2x D-tap Power Output
BIVO-200 provides with 2x D-tap power sockets.
When the battery works at 14.4V voltage,
the D-tap outputs 11-16.8V;
When the battery works at 28.8V voltage,
the D-tap output regulated 16V,
to power all kinds of camera-top devices.
BIVO Series Family
The BIVO series Bi-voltage B-mount battery famaily has 98Wh, 160Wh, 196Wh, 290Wh, the
different sizes and capacities, for stablizer handheld light weight or long time power selection.

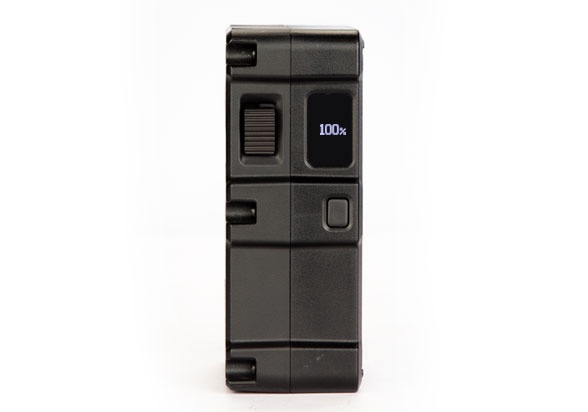

OLED Power Info Display
BIVO-200 battery provides an OLED screen to display battery status and power
information, includes output voltage, power percentage, remaining running time,
and protection warning code if any abnormal detected.
100W Super Fast Charging
You can charge 4x BIVO-200 simultaneously on
SWIT PC-P461B B-mount charger, at 33.6V 3A,
100W super fast charging. The charger will take
approx. 3 hours to fully charge 4x BIVO-200
batteries.
LED Torch
You can double press the Power Check button to switch on LED
torch on the rear side of the battery, to help you to find B-mount
plate in dark production environment.
Double press the Power Check button again to switch the light
off, and it will be automatically switched off after 30 seconds
1.2 meters Drop-off Proof
BIVO-200 battery can survive from 1.2 meters
drop-off at any angles, strong and reliable for
filmmakers.
Voltage | 28.8V (21.6-33.6V) & 14.4V (10.8-16.8V) |
Capacity | 196Wh |
Constant load | (28.8V) 200W, 8A (14.4V) 200W, 16A |
Charging | 33.6V 100W fast charging |
Mount Type | B-mount |
D-tap ×2 | 14.4V status: 10.8-16.8V out, 200W load |
Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
Net weight | Net 1.1kg; With package1.15kg |
Dimensions | 144×100×54mm |
