› 2x 28.8V Vマウント電池をインストール
› SWIT HB-C420S電池をサポート
› SWIT PB-H290S電池をサポート
›Neutrik 3ピンXLR 48V調節、750W出力
›Neutrik SpeakON 22-33.6V、750W出力
›各電池の電源指示器
›25-45mmライトスタンドの取付け

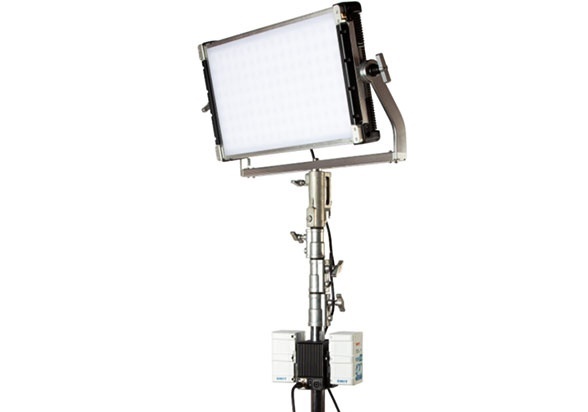

Cine Lights Portable Power
TD-R230S light stand power adaptor is particularly to power the high draw cine lights up to 750W, by only 2x V-mount batteries hooked on light stand, portable and convenient for moving the light fixtures on set.
48V 750W High Output
100% Power Vortex 8, Skypanel, Orbitor etc
TD-R230S supports 2 of 28.8V V-mount batteries install, and by SWIT HB-C420S batteries, the TD-R230S adaptor could output 48V 750W and 22-33.6V 750W high power for cine lights like Creamsources Vortex 8, ARRI Skypanel S60/S120, ARRI Orbitor, Aputure Nova P600C, etc.
Run Time Chart By 2x HB-C420S batteries

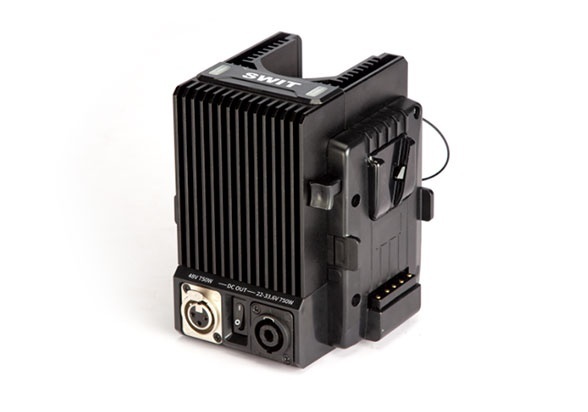

DC Output Sockets
TD-R230S provides 3-pin XLR regulated 48V DC output of 750W load, and Neutrik SpeakON 22-33.6V DC output of 750W load. The system draws 2 batteries one-by-one or simultaneously according to the real time power load. The top indicators display the discharging status of each battery.

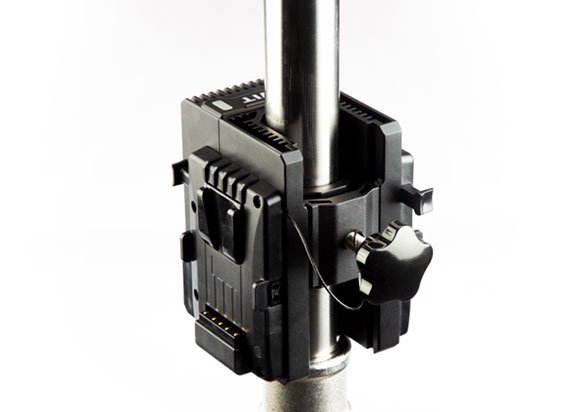

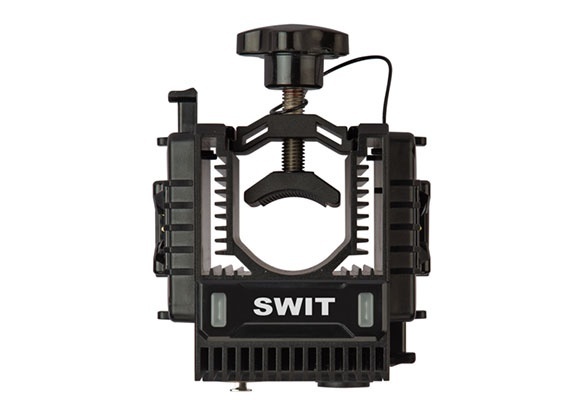

Easy Install on Light Stands
TD-R230S has extremely compact size without fans, and fits on 25mm-45mm diameter light stand. It’s balanced with 2 batteries and reliable locker.
Model | TD-R230S |
DC output | 1× 48V Reg. 3-pin XLR 1× 22-33.6V SpeakON |
Battery type | 2x 28.8V high voltage V-mount batteries |
Max Load (by 2x 28.8V batteries) | 750W each output |
Working temp | -20°C - 40°C |
Dimensions | 146×123×110mm |
weight | Net 1.3kg; With package 1.55kg |
