› 14.4V Vマウントホットスワップ
› 43Wh、200Wの一定した負荷セルの内部
›少なくとも2分の走行時間
› カウントダウン秒表示
›D-tapx2、2ピンLEMO、USB出力
› 発電所ホットスワップ用8ピンLEMO入力
› SONY & RED デジタルパワー情報
› アルミニウムCNCユニボディハウジング
›サポート15mm棒クランプの取付け
› 複数回路保護

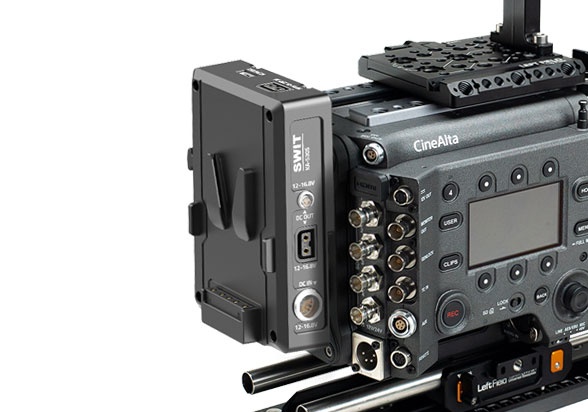

V-mount Hot-Swap Plate
KA-S30S is a V-mount extended plate with battery
cells inside, and when you changing battery, the
plate will take over the power supply until a new
battery is mounted on. So you don’ t need to
switch off the cameras with this hot-swap plate.
At least 2mins at 200W load
KA-S30S has CNC alluminum housing, 4 battery cells
inside, 14.4V nominal voltage, 43Wh capacity, 200W
constant high load.
The full capacity plate will ensure at least 2 minutes
at 200W load even after 1000 cycle times.

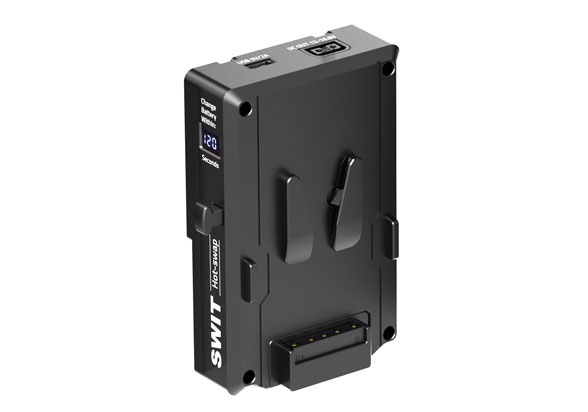

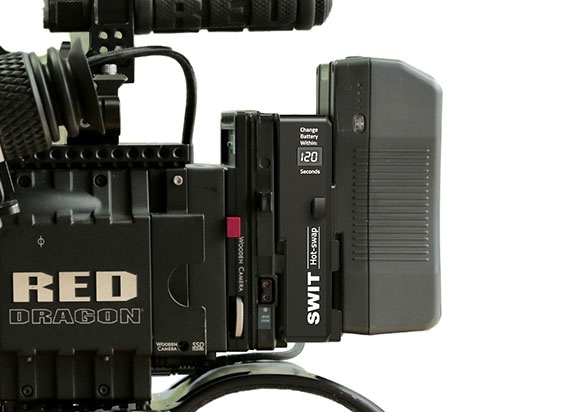

120 Seconds Countdown Display
The hotswap plate provides an LCD screen to display
countdown seconds when changing battery.
When battery is removed, the screen will countdown from
120s. You just need to put on a new battery before it count
down to 0.
The new battery will charge the hotswap plate as well. You
can see the countdown seconds will go back to 120s after a
period of time.

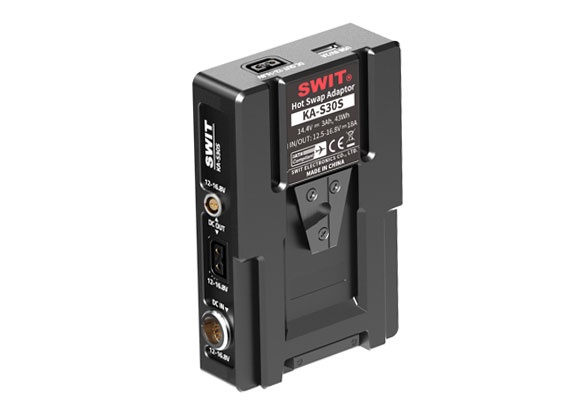

Power Interfaces
KA-S30S provides:
1x 2-pin LEMO 12-16.8V 38W/3A out
2x D-tap 12-16.8V 125W/10A out
1x USB-A 5V/2A output
1x 8-pin LEMO 12-16.8V input (For power station hotswap)
15mm Rod Adaptor
KA-S30S provides with a free 15mm Rod
Adaptor in the package, to install on 15mm
rig systems to power the cameras without
V-mount plate.
Inner battery voltage | 14.4V nominal, 12-16.8V |
Inner battery capacity | 43Wh/3Ah |
Power load | 200W/16A constant high load |
D-tap output x2 | 12-16.8V, 125W/10A each, 200W/16A in total |
2-pin LEMO output | 12-16.8V, 38W/3A |
USB-A output | 5V, 10W/2A |
8-pin LEMO input | 12-16.8V |
Dimensions | 93×143×42mm |
Net weight | Net 691g; With package0.85kg |
