› 8チャンネル同時高速充電
›14.4Vおよび28.8VVマウントバッテリーの両方を充電
› SWIT 14.4V & ≥160Wh電池のための100W/6A
› SWIT 28.8V & ≥160Wh電池のための100W/3A
›他の電池のための50W/3A
› 2×3.5インチカラーLCD情報ディスプレイ
› バッテリーサイクル時間表示
› 大型LED充電指示器
›壁取付けまたは19インチラックの取付け

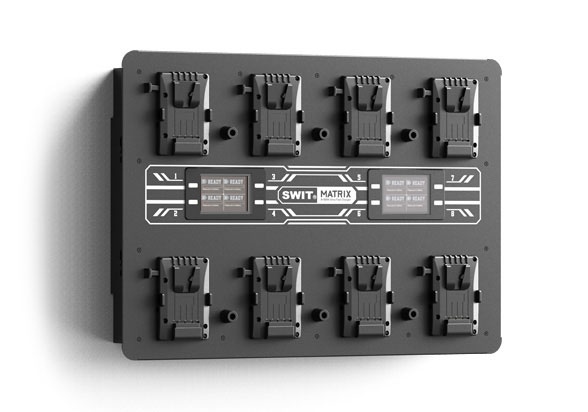

8x100W Ultra Fast Wall Charger

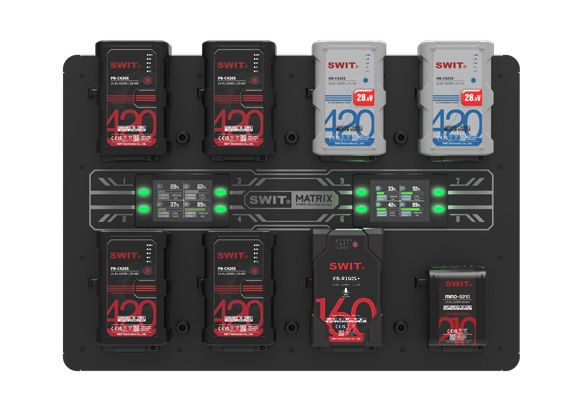

MATRIX-S8 is an 8-ch simultaneous V-mount wall charger
with 100W ultra fast charging speed each channel, save up
to 60% charging time comparing to normal chargers,
supports both 14.4V and 28.8V batteries, for TV stations
and rental houses installation.
Charging time comparation

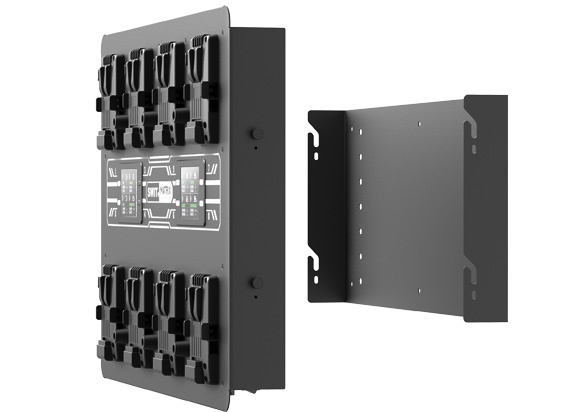

Flexible Wall Mounting Plate
MATRIX-S8 provides with a wall mounting plate on the
backside, to be screwed onto the wall, or mounting to
standard 19-inch rack bracket.
You can even install the mounting plate onto storage
rack or DIT cart.

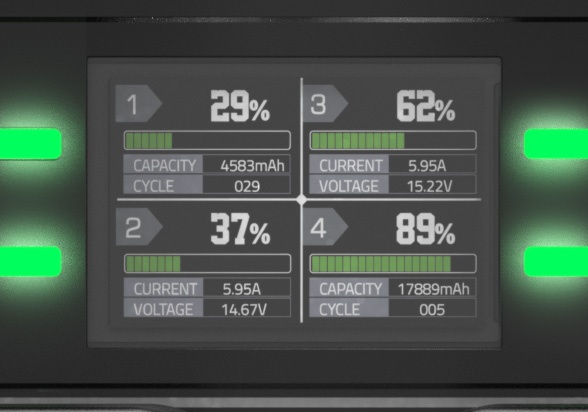

3.5-inch Color LCD and Indicators
MATRIX-S8 provides 2x 3.5-inch color LCD to display charging
progress, charging current, voltage, battery cycle times for each
channel.You can also check the charging status by large charging
indicators from a distance.
Power | Max 900W |
Input | AC100V-240V 50/60Hz |
Output | DC 16.8V, 6A 100Wx8 (SWIT 14.4V & ≥160Wh batteries) DC 33.6V, 3A 100W×8 (SWIT 28.8V & ≥160Wh batteries) DC 16.8V, 3A 50W×8 (Other batteries) |
Applicable battery | V-mount battery |
Dimensions | 630×436×89mm |
Net weight | Net 10.6kg; With package 15.5kg |
