› 8チャンネル同時Bマウント高速充電
› DC33.6V、3A、≥160Wh電池のための100W
› DC33.6V、1.3A、<160Wh電池のための44W
› 2×3.5インチカラーLCD情報ディスプレイ
› バッテリーサイクル時間表示
› 大型LED充電指示器
›壁取付けまたは19インチラックの取付け

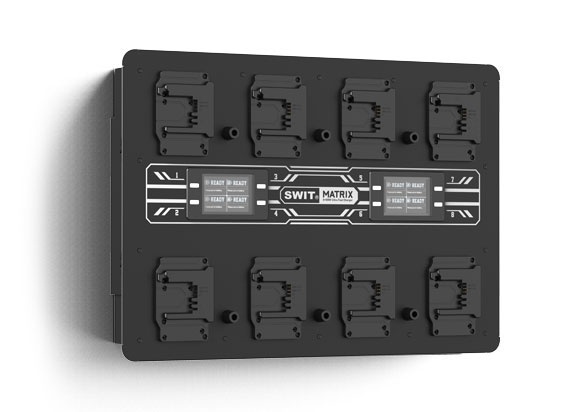

8x100W Ultra Fast Wall Charger

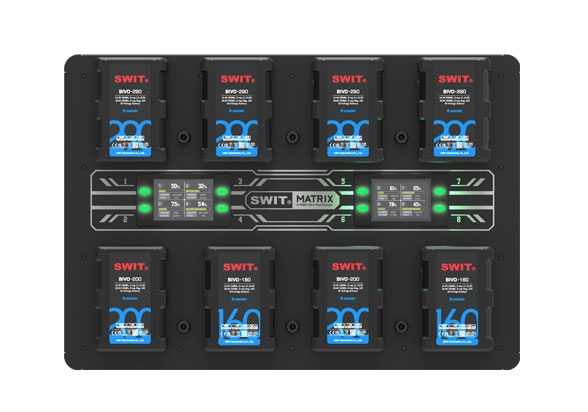

MATRIX-B8 is an 8-ch simultaneous B-mount wall charger with 33.6V 100W ultra fast charging speed each channel, charging SWIT HB-A290B, BIVO series, and compatible with other B-mount batteries that support 33.6V charging voltage like CoreSWX.
Charging Time Chart

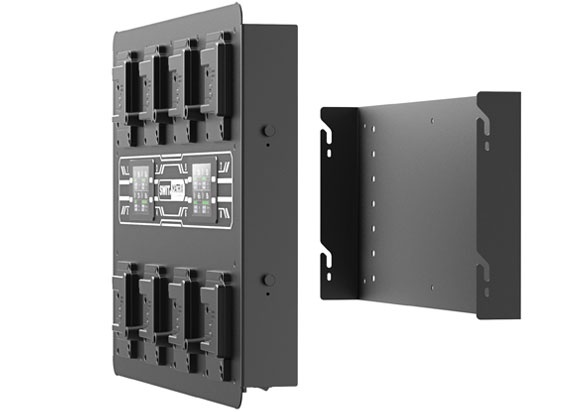

Flexible Wall Mounting Plate
MATRIX-B8 provides with a wall mounting plate on the backside, to be screwed onto the wall, or mounting to standard 19-inch rack bracket.
You can even install the mounting plate onto storage
rack or DIT cart.

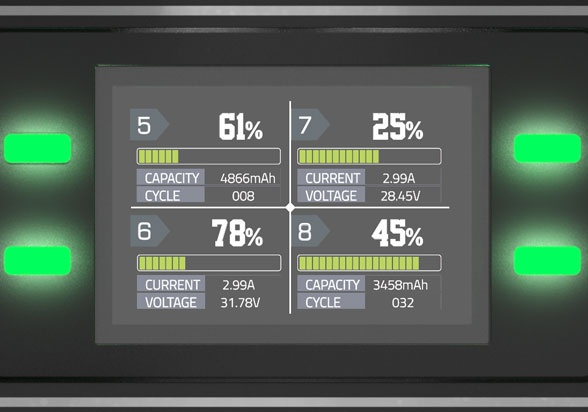

3.5-inch Color LCD and Indicators
MATRIX-B8 provides 2x 3.5-inch color LCD to display charging progress, charging current, voltage, battery cycle times for each channel.You can also check the charging status by large charging indicators from a distance.
Power | Max 900W |
Input | AC100V-240V 50/60Hz |
Output | DC 33.6V, 3A 100Wx8 (≥160Wh B-mount batteries) DC 33.6V, 1.3A 44W×8 (<160Wh B-mount batteries) |
Applicable battery | B-mount battery |
Dimensions | 630×436×89mm |
Net weight | Net 10.6kg; With package 15.5kg |
