Close to the Ceiling Install

The regular 2×1’size panel will encroach too much height spaces when installed in low ceiling studios, and interfere with camera lens framing.
While the PL-S150L 3×0.5’ long ratio light will minimize the height occupancy, maintain an inconspicuous presence, maximize the shooting angles for small-space studios.

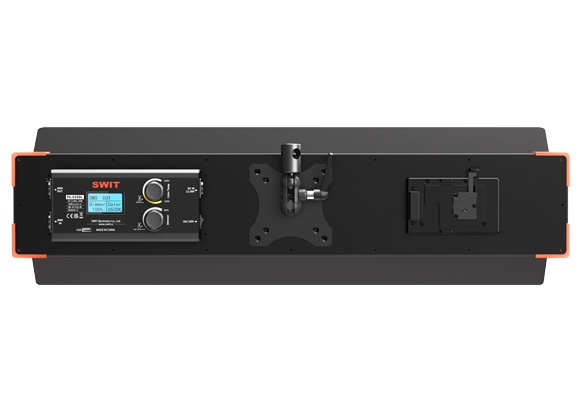

Pantilt Free Adjustable Bracket

The PL-S150L provides a 360° pan and tilt ball head bracket, which allows for convenient and free adjustment of the installation angle.

4,800Lux @ 1m High Bright and Soft

The 150W soft light produces high illuminace of 4,800Lux @1m, 69° half-peak, can be applied as head light, key light, or background light in studios, comference hall, etc.

Exponential Dimming Curve

To produce smooth light output when dimming at low intensity range, PL-S150L provides a non-linear exponential dimming curver, and the 1% dimmer equals to only 0.3% of the full intensity, to match with the sensitivity of human eyes.

IEC 62471 Photobiological Safe Certificated

The light has been tested and certificated as “Exempt - No Photobiological Hazard” by the IEC 62471:2008 standard, without the risk of ultraviolet radiation, high energy blue light, flicking. In specific locations such as churches, museums, and ancient buildings, using this lighting fixture can effectively prevent the fading and peeling of mural artifacts, thereby protecting cultural heritage.

No Fan, No Noise

In low-ceiling studios, any fan noise is unacceptable. SWIT advanced heat dissipation design enables full-power operation without fans and ensuring absolute silence, to guarantee a quiet environment for audio recording in small-space studios.

2700K-6500K Continuously Adjustment

PL-S150L consists of 150W of 2700K LED and 150W of 6500K LED, and outputs 150W power at any color temperature from 2700K to 6500K.

CRI 97; TLCI 99; SSL(D55)73

PL-S150L adopts high end surface mounted LEDs with super high Color Rendering Index (CRI) Ra 97, Television Lighting Consistency Index (TLCI) 99, and CIE D55 (comparing with sunlight) SSI scores 73. Objects will keep their original colors exactly under the light.

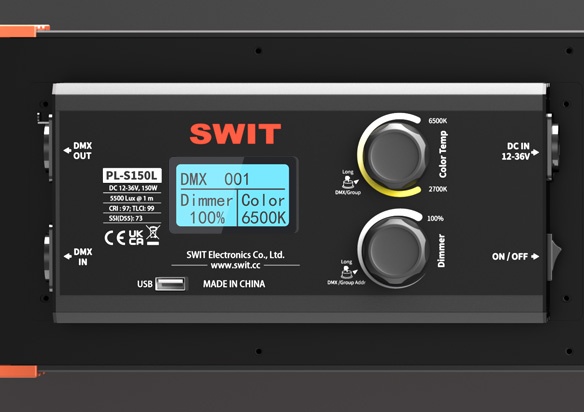

Control and Display

The rear LCD screen can display dimmer percentage, color temperature, DMX address and Group channel. Long press dimmer knob to set DMX address, and long press color temp knob to switch between DMX consoler mode and Group interactive control mode.

3-Pin XLR DC12-36V In

PL-S150L supports 3-pin XLR DC 12-36V wide range input, and an on-board V-mount plate to power by batteries. The standard package provides an AC-DC adaptor and can be fixed to the V-mount plate.

Optional Pole-Operated Yoke

PL-S150L provides a 2 control cups pan and tilt Pole-operated Yoke for opional purchase, 5/8" baby-pin female & 1-1/8" junior pin male head.
