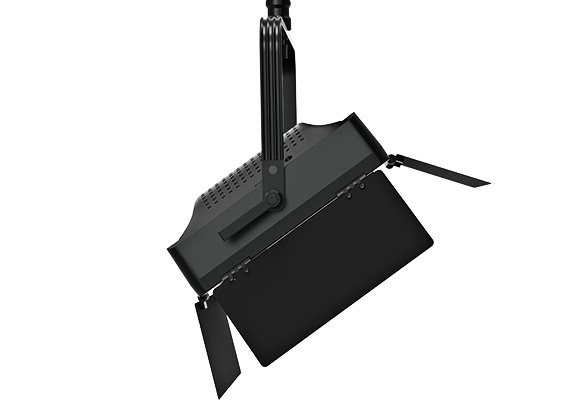

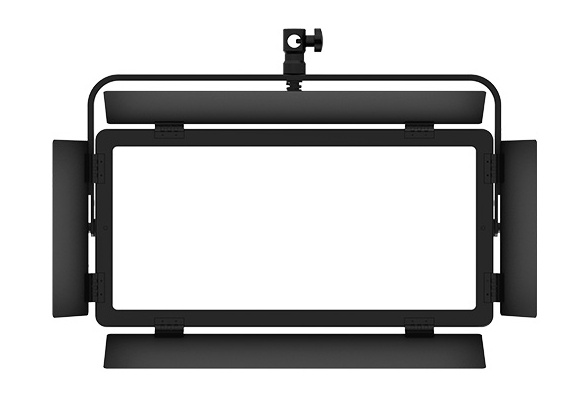

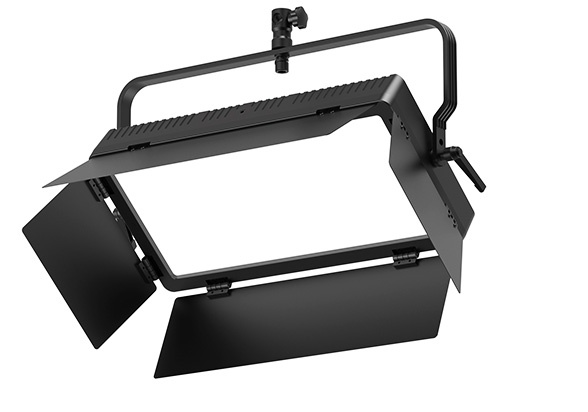

100W Studio Panel LED Light

Brighter, softer, wider beam angle

CL-100 is a 100W 2:1 SMD LED panel light of daylight color temperature, with DMX control, high CRI/TLCI and accurate color performance, for broadcast studio, mobile studio, live streaming studio install applications.

3300 Lux @ 1 meter

CL-100 has 720pcs long life SMD LEDs, outputs 100W power, feeds 3300Lux luminance at 1 meter distance (center), supports 0 to 100% PWM digital dimming, smoothly and non-flickering.
The SMD LEDs featured high uniformity of illuminance, soft and bright, an ideal light source for Broadcast studios, green keyer, live streaming etc.

Wider Beam Angle

The CL-100 SMD LEDs have wider beam angle comparing to the traditional DIP LED bulbs. It will generate an equally spread area light from center to edge, instead of a glaring light spot that suddenly declined from center to edge. The wider angle equally spread light produces a nature light environment in studio.

IEC 62471 Photobiological Safe Certificated

The light has been tested and certificated as “Exempt - No Photobiological Hazard” by the IEC 62471:2008 standard, without the risk of ultraviolet radiation, high energy blue light, flicking. In specific locations such as churches, museums, and ancient buildings, using this lighting fixture can effectively prevent the fading and peeling of mural artifacts, thereby protecting cultural heritage.

5600K Daylight Color Temp

CL-100 adopts 4-step MacAdam Ellipse SMD-LEDs, outputs accruate 5600K color temperature for daylight studio application.

Accurate Color Render

CRI 97; TLCI 99

CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the color reveal ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while CL-100 offers the super high CRI at 97 and TLCI at 99, and will not lose the object original colors.

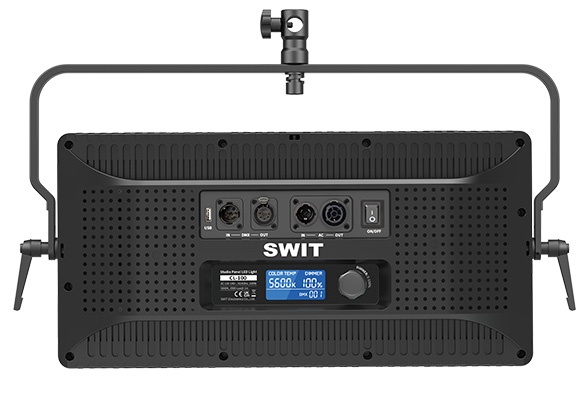

DMX, AC IN & LOOP

CL-100 provides 5-pin XLR DMX512 in and out, with a 5V USB-A socket to power wireless DMX receiver. For convenient studio installation, the CL-100 provides PowerCON True 1 AC in and loop out sockets, which will loop through more than 25x CL-100 lights under 220V AC voltage, and 13x CL-100 lights under 110V voltage.

Optional Honeycomb

CL-100 provides a 40° metal honeycomb plate for optional purchase. The honeycomb can be used together with barndoors.
Honeycomb Part number: LA-G100
