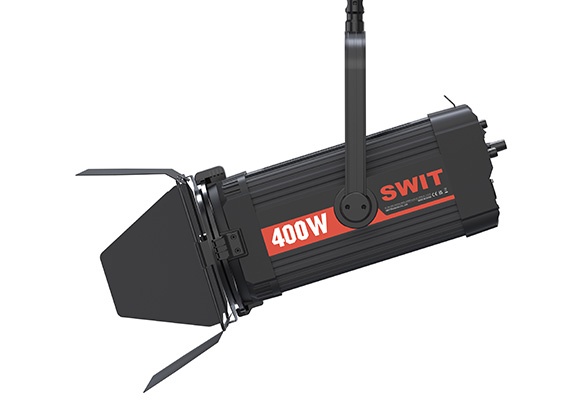

400W COB-LED Fresnel Light

High intensity 130,000Lux @ 1m

FL-C400D is a 400W Bi-color COB-LED fresnel light, 130,000Lux @1m high bright, with DMX control, high CRI/TLCI and accurate color performance, for broadcast studio, theatre, film set install applications.

15°-50° Spot/Flood Adjust

FL-C400D outputs 15°- 50° beam angle by adjusting position of LED board internally, 0 to 100% PWM digital dimming, smoothly and non-flickering.

Fresnel and Fly's Eye Lens

FL-C400D is equipped with double side compound lens - front fresnel rings to converge the lights and rear fly's eye array to eliminate yellow halo, and get an even distributed spot light.

2700K-6500K Continuous

FL-C400D COB-LED includes 400W 2700K and 400W 6500K LED, and can be continuously adjusted between 2700K and 6500K. The light outputs 400W at any color temperature.

IEC 62471 Photobiological Safe Certificated

The light has been tested and certificated as “Exempt - No Photobiological Hazard” by the IEC 62471:2008 standard, without the risk of ultraviolet radiation, high energy blue light, flicking. In specific locations such as churches, museums, and ancient buildings, using this lighting fixture can effectively prevent the fading and peeling of mural artifacts, thereby protecting cultural heritage.

Accurate Color Render

CRI 97; TLCI 99

CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the color reveal ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while FL-C400D offers the ultra high CRI at 97 and TLCI at 99, and will not lose the object original colors.

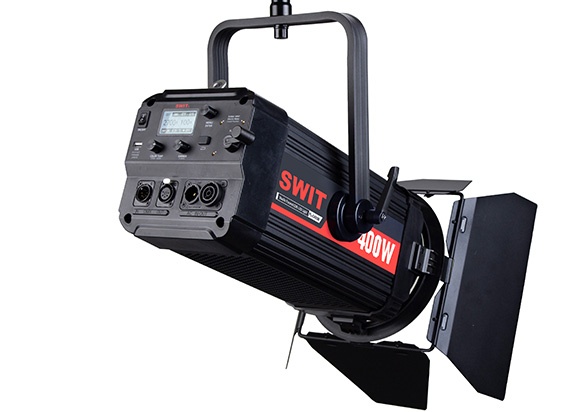

DMX, AC IN & LOOP

FL-C400D provides 5-pin XLR DMX512 in and out, with a 5V USB-A socket to power wireless DMX receiver, and support PowerCon True1 AC input and loop output for easy cable works when building studio.

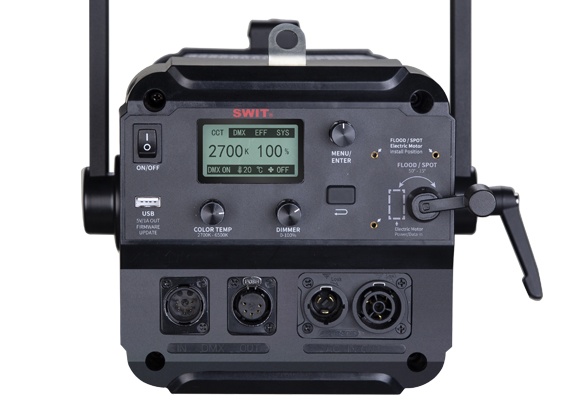

Menu Operating System

Optional Spot Angle E-motor

FL-C400D supports external electro-motor installed to adjust the spot/flood angle by Menu knob or by DMX control. The optional E-motor is easily user installed (Part number LA-M50).
You can also order the light with factory pre-installed E-motor, SKU model FL-C400DM.

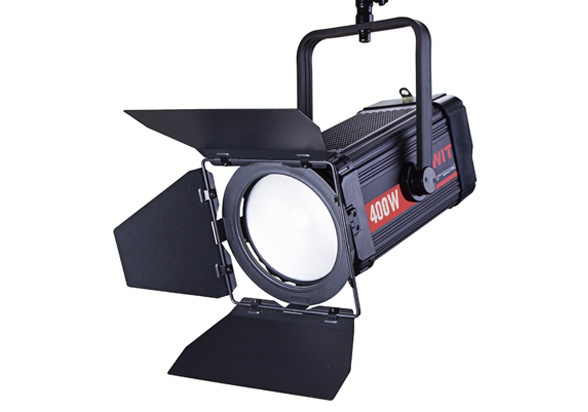

4-leaf Metal Barn Door

FL-C400D is equipped with 4-leaf metal barn doors, dismountable and rotatable.
