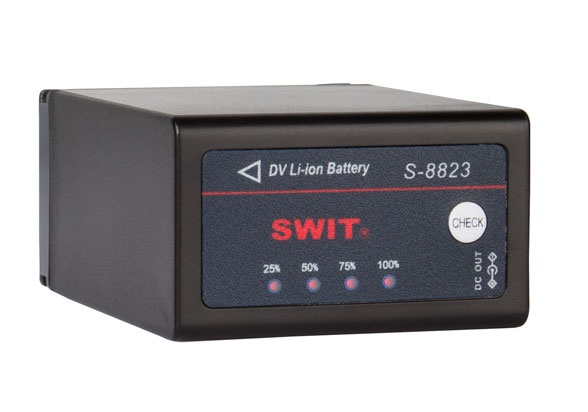

S-8823 JVC HM100 DV Camcorder Battery Pack
› Li-ion battery pack of 7.2V nominal voltage
› Comparable to JVC BN-VF823 DV battery
› Display remaining power info on camera viewfinder
› 18Wh / 2.5Ah capacity
› 4-level LED power indicator
› 7.2V Pole-tap DC output
› Multiple circuit protections
JVC BN-VF823 Comparable Battery
Display remaining power info

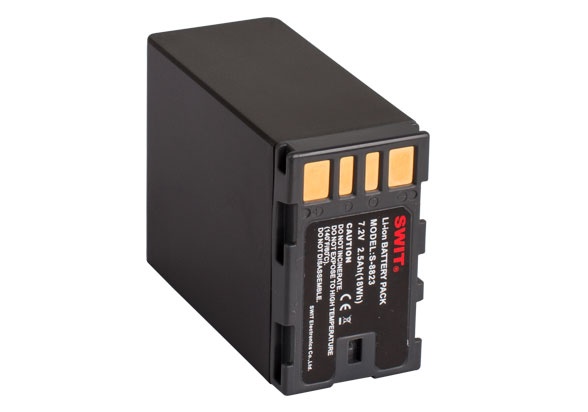

S-8823 is the replacement battery for JVC BN-VF823, compatible with JVC
GY-HM100/101 series camcorder. S-8823 can exchange digital info with the
cameras, and display remaining power info on the camera viewfinder.
18Wh / 2.5Ah Capacity
With 7.2V nominal voltage, the S-8823 has 18Wh / 2.5Ah capacity,
and can run approx 2 hours on JVC GY-HM100 camcorder when
LCD monitor is on.
Build-in Pole-tap DC Output Socket
A 5.5/2.1mm pole-tap DC output socket is equipped on the side of S-8823 battery, for
DC 7.2V (Nominate) connection. You can connect on-camera LED light, monitor or
wireless transmitter on the pole-tap socket, and get power simultaneously with camera.
The Max power from the pole-tap is 15W, 2A.

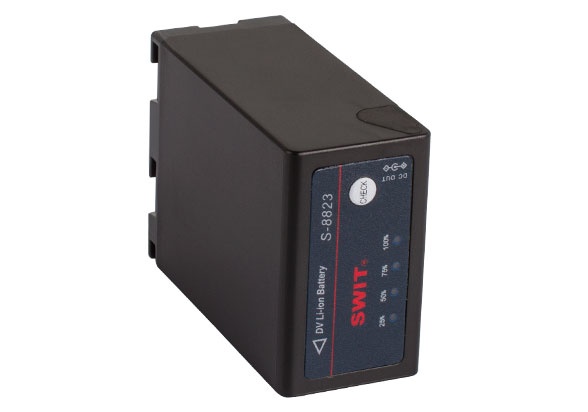

4-level LED Power Indicator
The S-8823 battery has the 4-level LED power indicators to check
the battery remaining capacity. You can get a quick view of capacity
before using.
Easy Charging

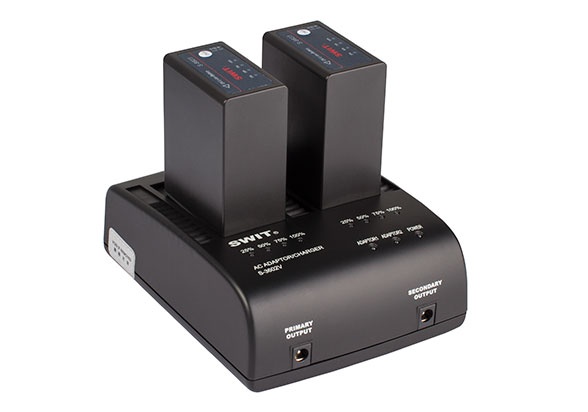

The S-8823 can be charged on SWIT Dual channel charger S-3602V or SWIT 4-ch charger LC-D421. It
takes about 2 hours to charge from empty to 100%.
Nominal Voltage | 7.2V |
Capacity | 18Wh,2.5Ah |
Max output power | Total: 18W,2.5A |
Pins: 15W,2A | |
| Pole-tap: 15W,2A | |
Compatible cameras | JVC GY-HM100/101 |
Dimension | 53×32×72mm |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C（Capacity and Max Load may decrease when operating below 0°） |
Net weight | Approx 130g |
