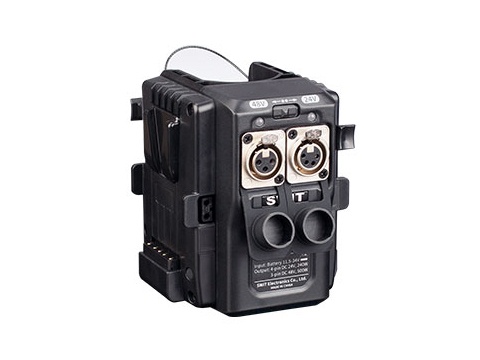

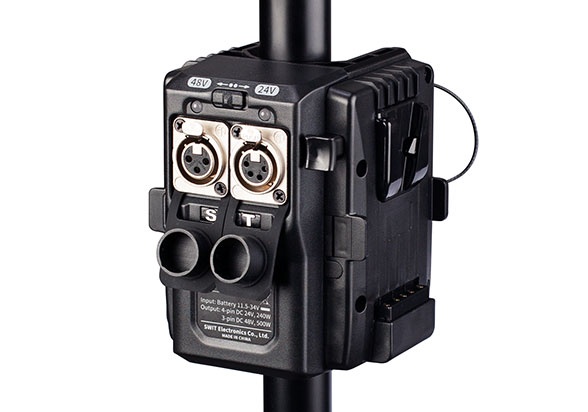

TD-R210S 24V/48V Light Stand Power Adaptor

›  Install 2x V-mount batteries

›  4pin Regulated 24V out, Max 240W

›  3pin Regulated 48V out, Max 500W

›  48V 500W by SWIT PB-H or HB- series batteries

›  For Skypanel S60/S120 100% output

›  Neutrik XLR connectors

›  25-45mm light stand install

Features

For High Power Cine Lights

By 2 Batteries, Regulated 24V/48V out

The high power lights usually use 24V or even 48V high voltage input. And TD-R210S is a solution to drive these high power lights with only 2x V-mount batteries, outputs regulated 24V or 48V, high load, ortable and easily to be mounted on C-stand.

Output Description

Max 48V 500W Load

Installed with 2x V-mount batteries, the TD-R210S can output 4pin XLR regulated 24V or 3pin XLR regulated 48V DC power. By normal 14.4V batteries, the Max load is 240W; By SWIT 14.4V/28.8V Bi-voltage batteries, the Max load under 48V can reach 500W, to support high power lights like ARRI Orbiter, Skypanel S60-C / S120-C 100% light output.

Orbiter/Skypanel Power Solution

Orbiter, S60-C / S120-C 100% light output

ARRI Orbiter and SkyPanel S60-C / S120-C consume more than 400W power, and can output 100% light only input 48V DC. Use 2x SWIT high load bi-voltage PB-H260S with the TD-R210S adaptor, will output 48V 500W for Orbiter and Skypanel S60-C / S120-C.

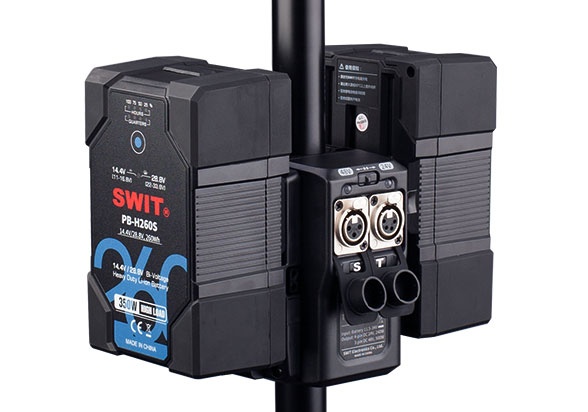

Compact & Balanced

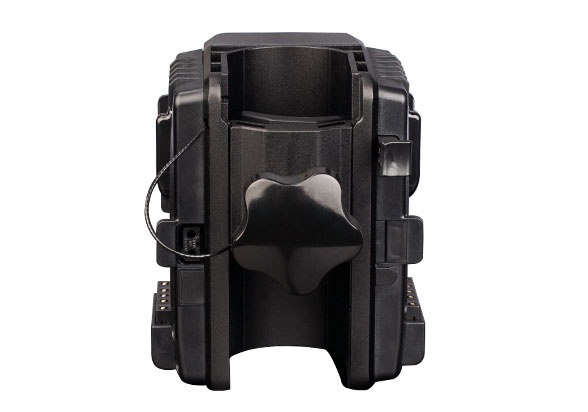

25-45mm diameter light stand install

TD-R210S has extremely compact size without fans, and fits on 25mm-45mm diameter light stand – all most all stands. It’s balanced with 2 batteries and reliable locker.

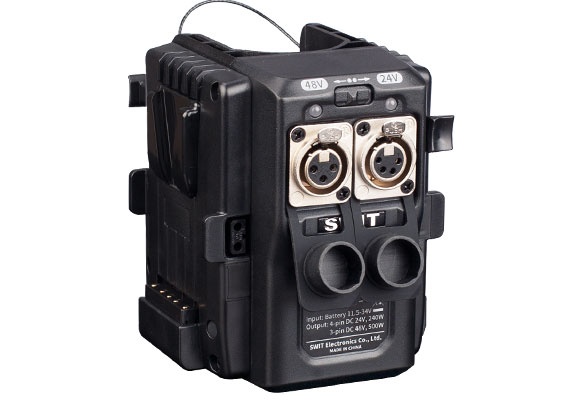

Neutrik XLR Socket

To ensure stable high current output, the TD-R210S adaptor uses Neutrik 3-pin & 4-pin XLR sockets, reliable and safe.

Model

TD-R210S

DC output

3-pin XLRx1; 4-pin XLR x1

Battery type

2x V-mount batteries

Max Load (by 2x 28.8V batteries)

3-pin XLR: 48V/10.4A, 500W
4-pin XLR: 24V/10A, 240W

Max Load (by 2x 14.4V batteries)

3-pin XLR: 48V/5A, 240W
4-pin XLR: 24V/10A, 240W

Working temp

-20°C - 40°C

Dimensions

127×104×93mm

weight

Net 0.9kg; With package 1.2kg
Basic Package

Single Unit Package

MSRP

$8222

Prince Rental Package

MSRP

$8222

MSRP

$8222

  • TD-R210S

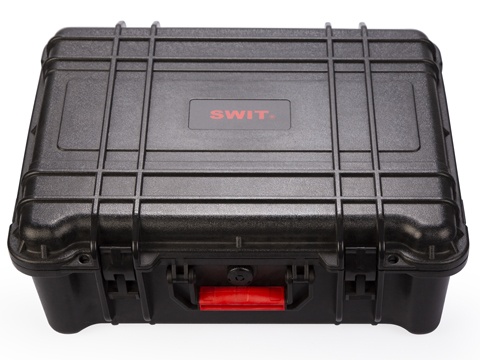

  • Carrying case

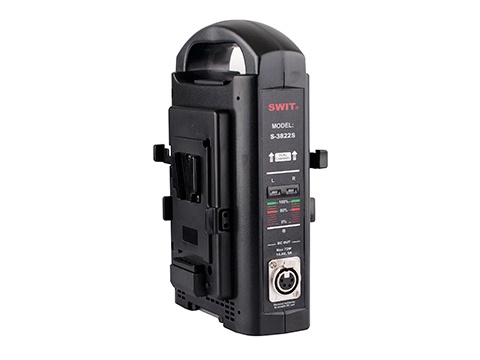

  • S-3822S charger x1

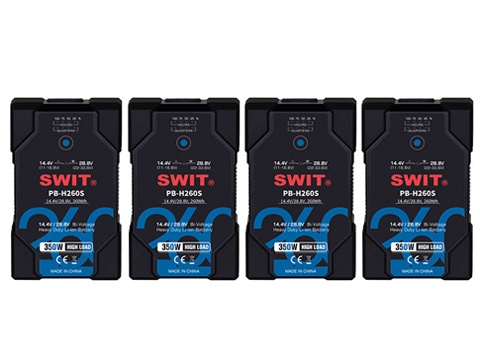

  • PB-H260S battery x4

  • TD-R210S x1

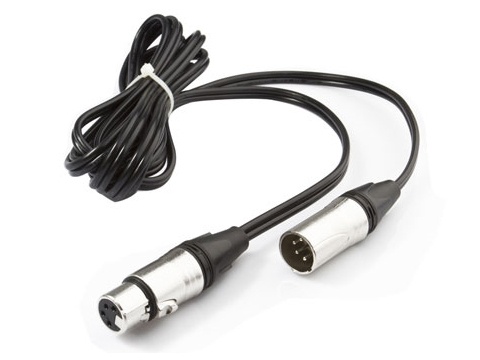

  • S-7102

    4-pin XLR female to male cable, for 4-pin XLR DC adapting output.
  • PB-H290S

    290Whインテリジェントバイボルテージバッテリーパック

    14.4V/28.8V 自動認識および切り替え、Alexa LF および他のすべての通常のカメラおよび充電器用、6A 高速充電、250W 高負荷、1.5m ドロップオフプルーフ

    $8222
  • TD-R210A

    24V/48V Light Stand Power Adaptor

    Output regulated 24V or 48V with 2x Gold-mount batteries, Max 500W load, for 25-45mm diameter light stand

    $8222
