› Charging V-mount batteries
› 2-ch simultaneous charging
› 3A charging current per channel
› LED charging indicators
› Support AC to 4-pin XLR output
› Light weight and portable

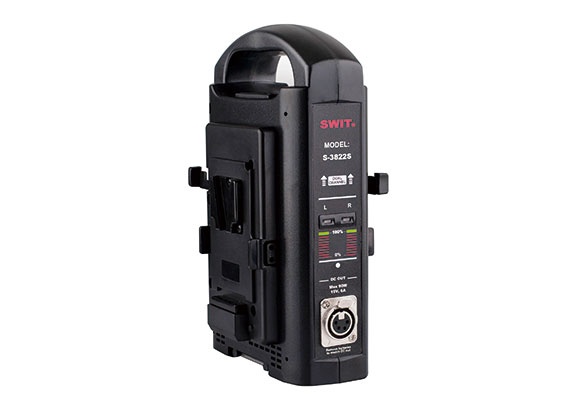

2-ch Simultaneous Charger
Charging current: 3A per channel

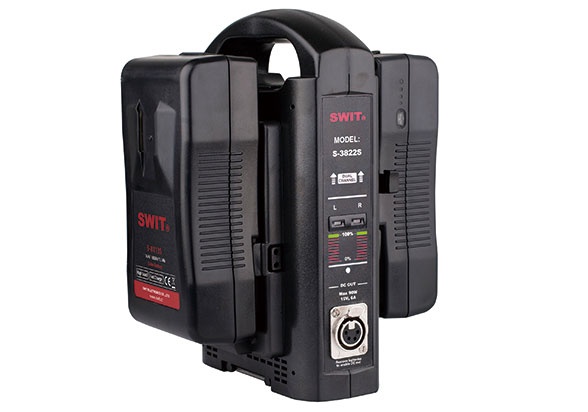

The portable charger S-3822S can charge 2 V-mount batteries simulta-
neously. The charging output is DC 16.8V, 3A×2

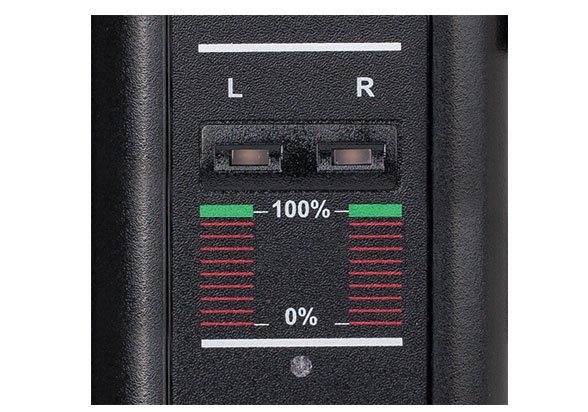

LED Charging Indicators
S-3822S has LED charging indicators on the front panel,
indicates the real time capacity of each channel by different colors:
Red: the battery capacity is below 100%
Green: fully charged
Red flash: the charging may have problem

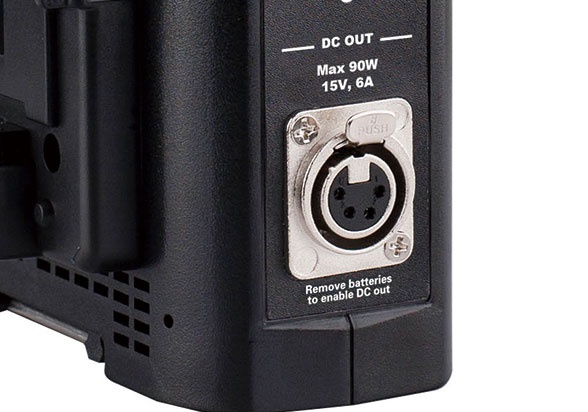

AC-DC Adapting Output
S-3822S has a 4-pin XLR female connector on the front panel.
Connected with SWIT S-7102 XLR female to male cable (optional
purchase), the S-3822S can be used as AC-DC adaptor of DC 15V,
6A, 90W output.
Please note the AC-DC adapting output will not work when battery
is charging.
Input | 100～240VA, 50/60Hz |
Power consumption | Max 136W |
Charging output | DC 16.8V, 3A×2-ch |
Adapting output | DC 15V, 6A |
Working temperature | 0°C～+40°C |
Working humidity | 10%～90% |
Dimensions | 228mm×140mm×120mm |
Net weight | Net 1.0kg; With package 1.45kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

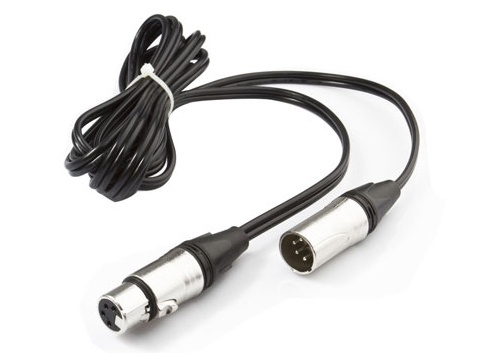

S-7102
4-pin XLR female to male cable, for 4-pin DC adapting output
