› PP+ Fiber glass case, strong and durable
› Install 4 x V-mount batteries
› 2-ch 3-pin XLR 28.8V DC output
› LED voltage display and warning
› Charging without take out batteries
› Intelligent protective circuit design
Long-lasting power solution for high draw devices

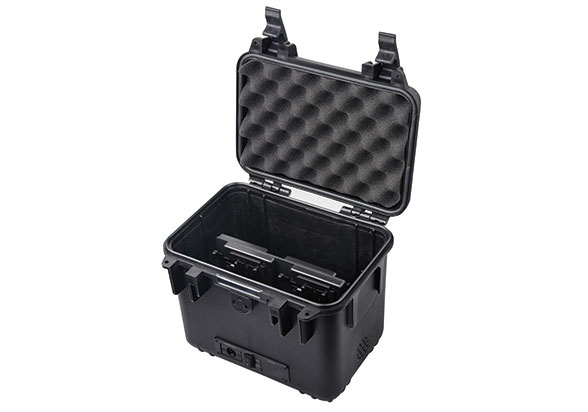

S-4030 power station box can install 4 pieces of
V-mount batteries which can provide more power
and longer power supply time comparing to single
Li-ion battery. It can meet the demand of different
users, and is very suitable for Cine cameras, lightings
for Film & Television and mobile studios.
PP+ Fiber glass case
S-4030 adopts PP+ Fiber glass case which is high intensity,
high toughness and high temperature resistant.

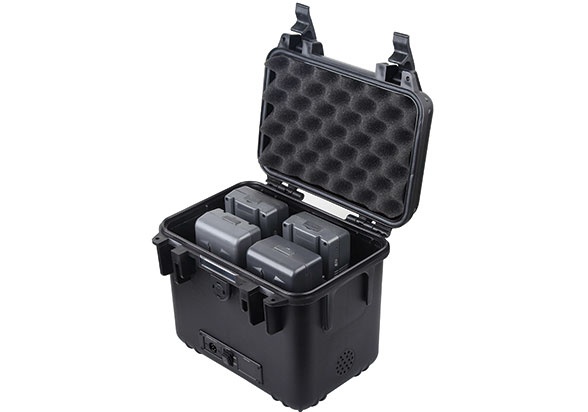

Power with 4 V-lock batteries
Considering the size, weight, power effeciency, and usability, S-4030 is designed to be powered with 2-4 V-lock bat-
teries. With auto-balanced circuite design, the different
models and capacities batteries can be mixed. The max
output power is limited by battery inside.
2-ch 4-pin XLR DC output
With 2-ch 3-pin XLR output sockets, S-4030 is capable of outputing 2-ch 22-33.6V, max 15A power simultaneously.
And S-4030 is designed with multiple circuit protections, such as over load, over voltage, and etc.

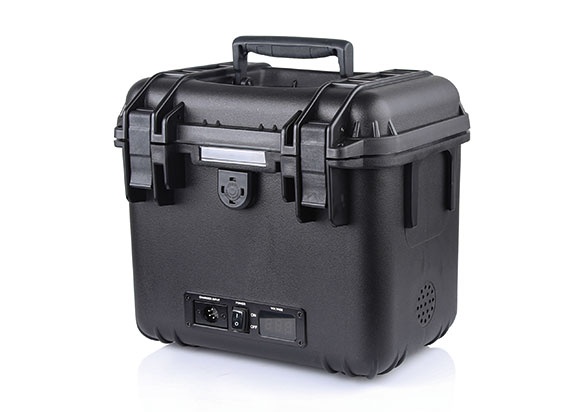

LED panel display status
With a LED panel, S-4030 can display real-time voltage, and when battery capacity is too low,
the LED panel will keep flashing to remind you to change or charge batteries.

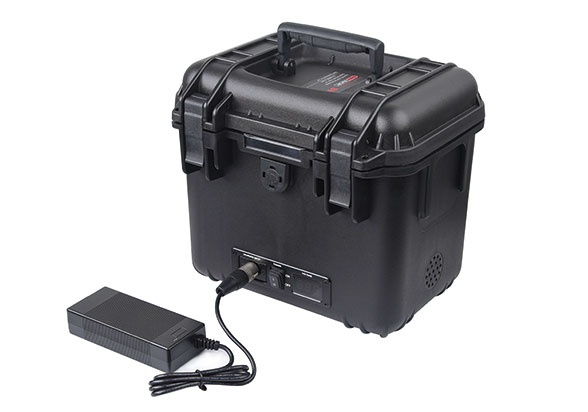

Charging with batteries inside
With the supplied 5A charger, user can charge the batteries
in the S-4030 directly, without taking out of them.
Cooling fan design
The fan keeps dissipating heat from the box, and
makes it safe when working in high temperature
environment.
Input | DC 16.8V 5A (Charging) |
Output | DC 22-33.6V 15A(360W) |
Working temperature: | 0°C～+40°C |
Working humidity: | 10%～90% |
Storage temperature: | -15℃～﹢60℃ |
Dimensions | 290mm x 221mm x 278mm |
Net weight | Net 3.45kg; With package 4.05kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

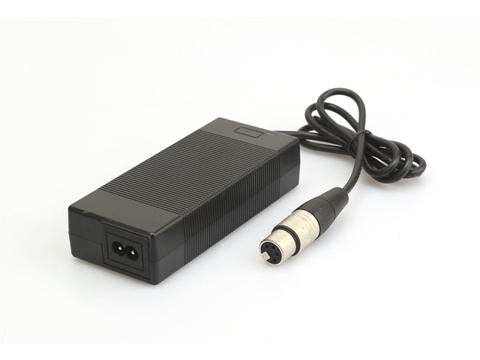

4-pin XLR 5A Charger
