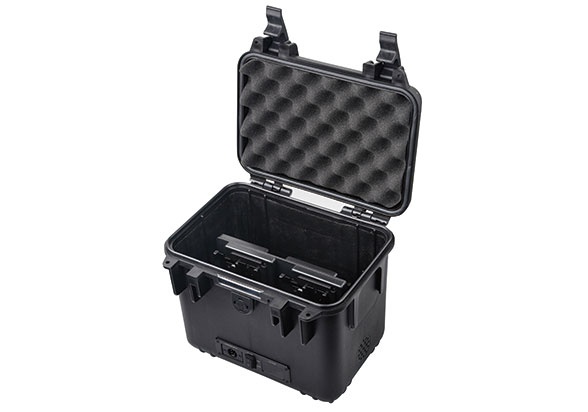

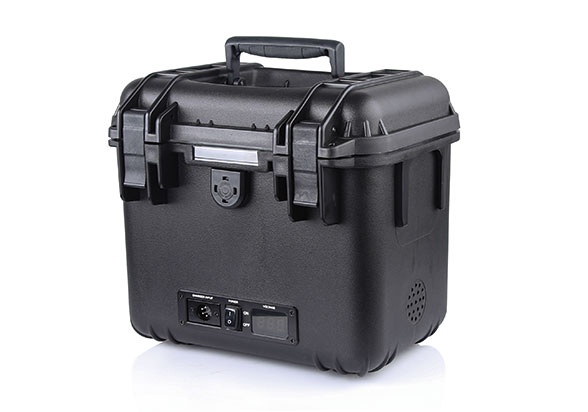

S-4010 Dual 14.4V Power Station Box

›  PP+ Fiber glass case, strong and durable

›  Install 4 x V-mount batteries

›  2-ch 14.4V 4-pin XLR DC output

›  LED voltage display and warning

›  Charging without take out batteries

›  Intelligent protective circuit design

Features

Long-lasting power solution for high draw devices

S-4010 power station box can install 4 pieces of V-mount batteries which can provide more power and longer power supply time comparing to single Li-ion battery. It can meet the demand of different users, and is very suitable for Cine cameras, lightings for Film & Television and mobile studios.

PP+ Fiber glass case

S-4010 adopts PP+ Fiber glass case which is high intensity, high toughness and high temperature resistant.

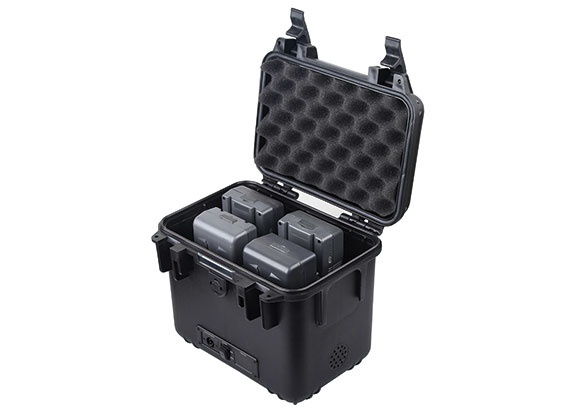

Power with 4 V-lock batteries

Considering the size, weight, power effeciency, and usability, S-4010 is designed to be powered with 1-4 V-lock bat- teries. With auto-balanced circuite design, the different models and capacities batteries can be mixed. The max output power is limited by battery inside.

2-ch 4-pin XLR DC output

With 2-ch 4-pin XLR output sockets, S-4010 is capable of outputing 2-ch 11-16.8V, max 15A power simultaneously. And S-4010 is designed with multiple circuit protections, such as over load, over voltage, and etc.

LED panel display status

With a LED panel, S-4010 can display real-time voltage, and when battery capacity is too low, the LED panel will keep flashing to remind you to change or charge batteries.

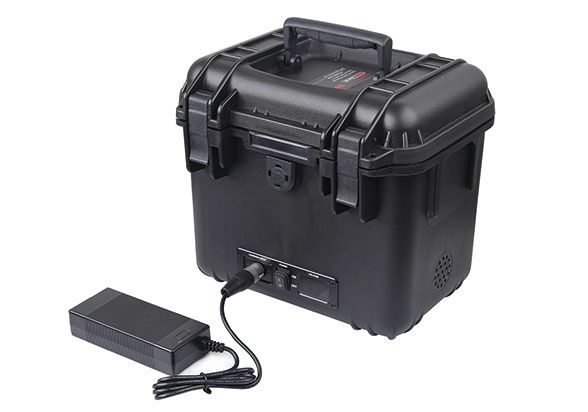

Charging with batteries inside

With the supplied 5A charger, user can charge the batteries in the S-4010 directly, without taking out of them.

Cooling fan design

The fan keeps dissipating heat from the box, and makes it safe when working in high temperature environment.

Input

DC 16.8V 5A (Charging)

Output

DC 11-16.8V 15Ax2(180Wx2)

Working temperature:

0°C~+40°C

Working humidity:

10%~90%

Storage temperature:

-15℃~﹢60℃

Dimensions

290mm x 221mm x 278mm

Net weight

Net 3.45kg; With package 4.05kg
Basic Package

MSRP

$8222

MSRP

$8222

MSRP

$8222

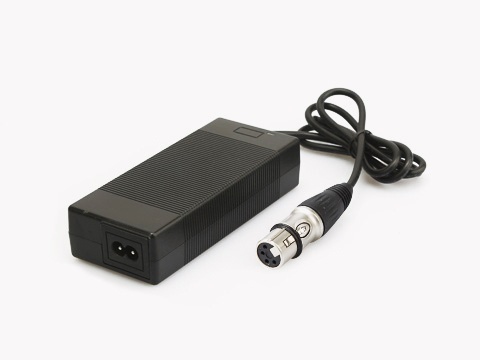

  • 4-pin XLR 5A Charger

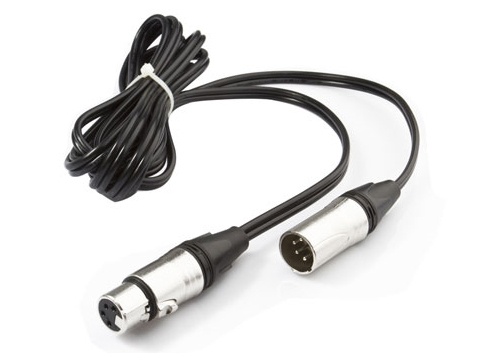

  • S-7102

    4-pin XLR female to male cable, for 4-pin DC adapting output
