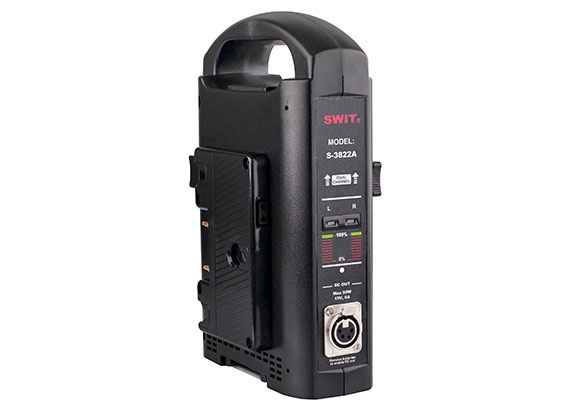

S-3822A 2-ch Gold Mount Fast Charger

›  Charging Gold Mount batteries

›  2-ch simultaneous charging

›  3A charging current per channel

›  LED charging indicators

›  Support AC to 4-pin XLR output

›  Light weight and portable

Features

2-ch Simultaneous Charger

Charging current: 3A per channel

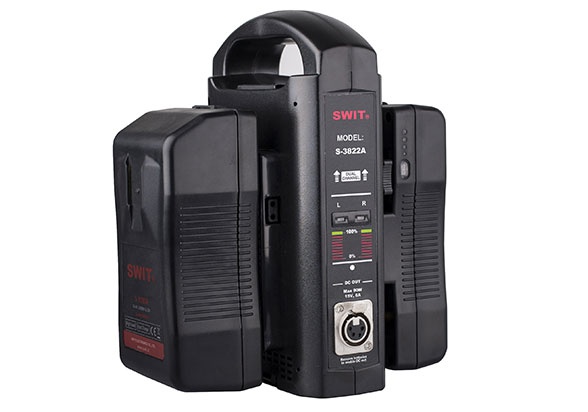

The portable charger S-3822A can charge 2 Gold mount batteries simultaneously. The charging output is DC 16.8V, 3A×2

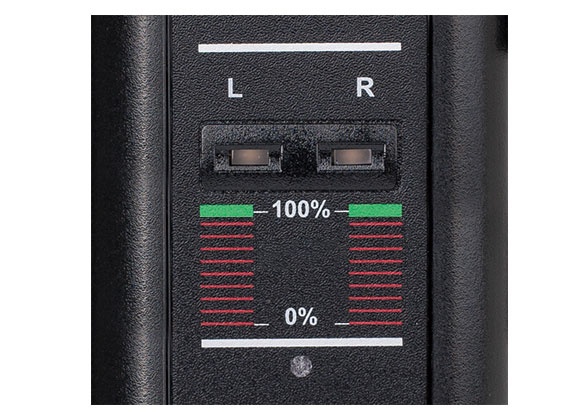

LED Charging Indicators

S-3822A has LED charging indicators on the front panel, indicates the real time capacity of each channel by different colors:

Red: the battery capacity is below 100%

Green: fully charged

Red flash: the charging may have problem

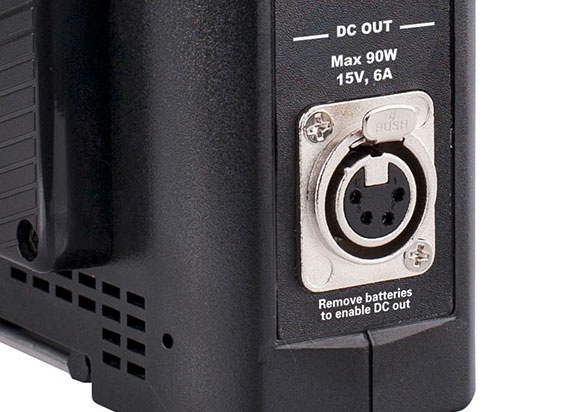

AC-DC Adapting Output

S-3822A has a 4-pin XLR female connector on the front panel. Connected with SWIT S-7102 XLR female to male cable (optional purchase), the S-3822A can be used as AC-DC adaptor of DC 15V, 6A, 90W output.
Please note the AC-DC adapting output will not work when battery is charging.

Input

100~240VA, 50/60Hz

Power consumption

Max 136W

Charging output

DC 16.8V, 3A×2-ch

Adapting output

DC 15V, 6A

Working temperature

0°C~+40°C

Working humidity

10%~90%

Dimensions

228mm×140mm×86mm

Net weight

Net 1.0kg; With package 1.45kg
Basic Package

MSRP

$8222

MSRP

$8222

MSRP

$8222

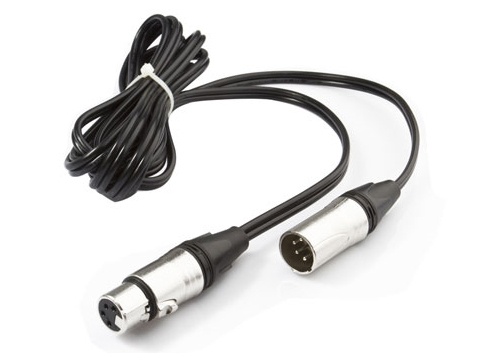

  • S-7102

    4-pin XLR female to male cable, for 4-pin DC adapting output
