S-3602F 2-ch SONY NP-F Charger and Adaptor

›  Charger for SWIT S-8975/8972/8970/8770 battery

›  2-ch simultaneous charging

›  Compatible with SONY L series DV batteries

›  2 DC adapting output sockets

›  4-level LED charging indicators

Features

SONY L series (NP-F) DV battery Charger

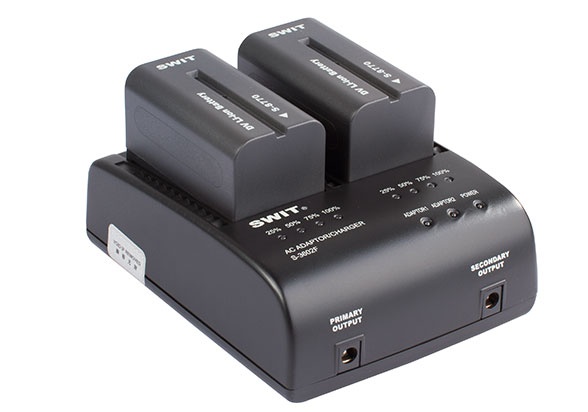

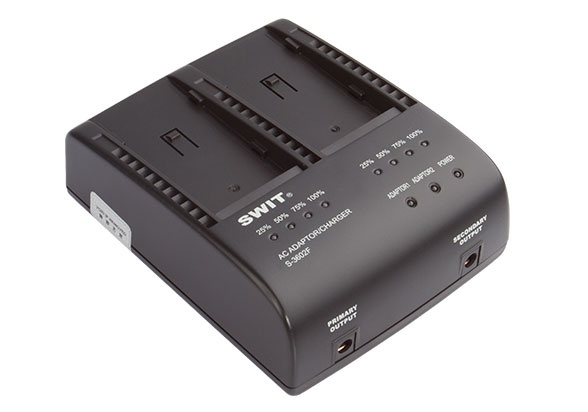

S-3602F is a dual channel charger for SWIT S-8972, S-8970, S-8770, and compatible with SONY L series NP-F970/770 DV batteries.

Dual Channel Simultaneous Charging

S-3602F has 2 charging channels, with DC 8.4V, 1.8A charging output for each channel, and can charge 2 batteries simultaneously.
The 4-level LED charging indicators are provided for each channel, which indicate the real time capacity by percentage when charging.

AC-DC Adapting Output

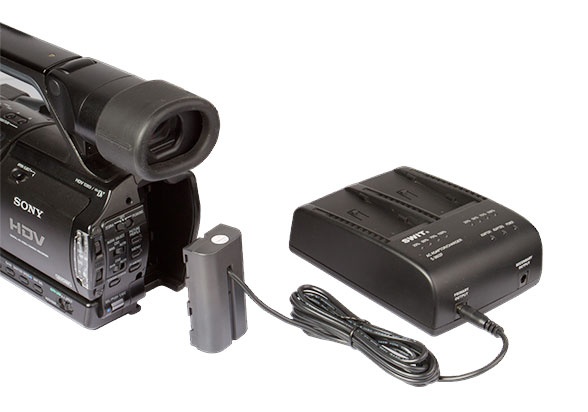

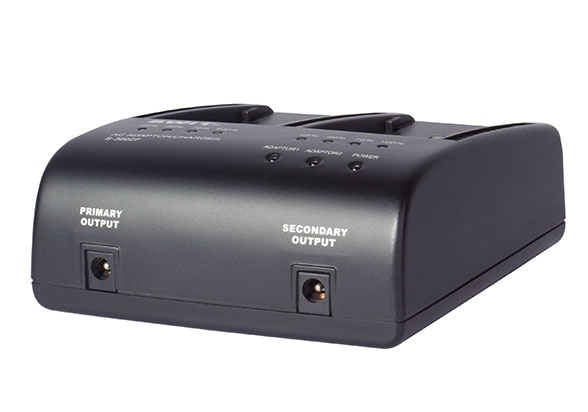

S-3602F has 2x 5.5mm/2.1mm pole sockets for DC adapting output. The DC outputs work simultaneously and provides DC 8.4V, 3.5A in total. Optional accessory: S-7500F dummy SONY L series battery adaptor for adapting SONY DV cameras that use L series batteries, or the equipments with SONY L series battery mounts.

Power input

AC 100V-240V 50/60Hz

Charging output

DC 7-8.4V, 1.8A×2

Adapting output

DC 8.4V, 3.5A

Applicable battery

S-8972, S-8970, S-8770

SONY L series NP-F770/970/960/950

Applicable camera

SONY HVR-V1E, HVR-Z1E/Z7E, etc

Dimensions

136×110×47mm

Net weight

Net 0.36kg; With package 0.65kg
Basic Package

MSRP

$8222

MSRP

$8222

MSRP

$8222

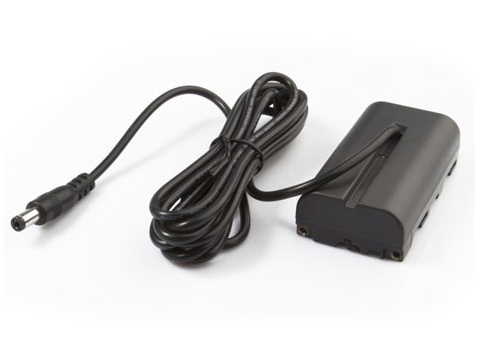

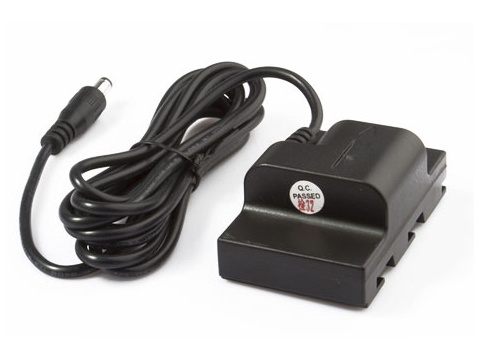

  • S-7500F

    SONY NP-F Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, SONY NP-F970/770 fit

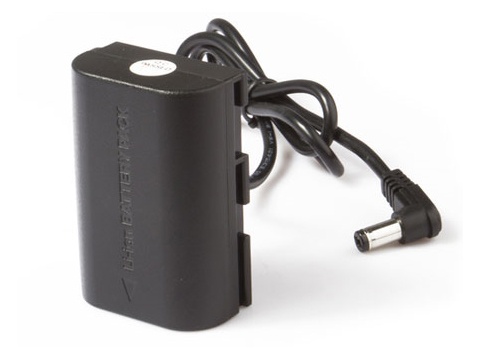

  • S-7500E

    Canon LP-E6 Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Canon LP-E6 fit
  • S-7500P

    Panasonic Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Panasonic CGA-D54, VW-VBD58, AG-VBR59 fit
  • S-7500i

    JVC SSL Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, SSL-JVC50 type fit
  • S-7500C

    Canon BP Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Canon BP-945 BP-970G fit
