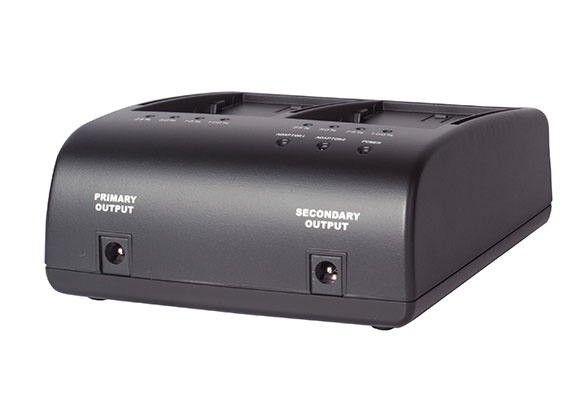

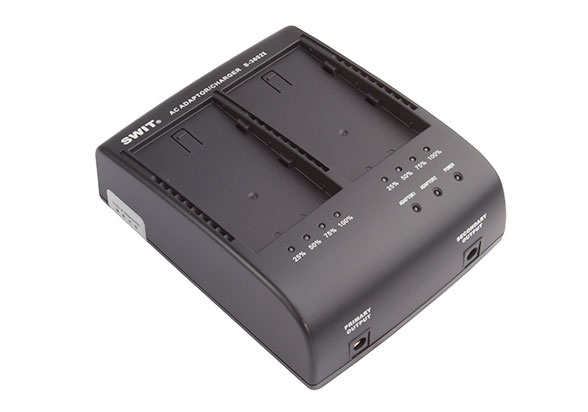

S-3602i 2-ch JVC SSL Charger and Adaptor

›  Charger for SWIT S-8i50 battery

›  2-ch simultaneous charging

›  Compatible with SSL-JVC50 battery

›  2 DC adapting output sockets

›  4-level LED charging indicators

Features

SSL-JVC50 DV battery Charger

S-3602I is a dual channel charger for SWIT S-8i50, and compatible with SSL-JVC50 DV battery that used on JVC GY-HM600/650/HMQ10 cameras.

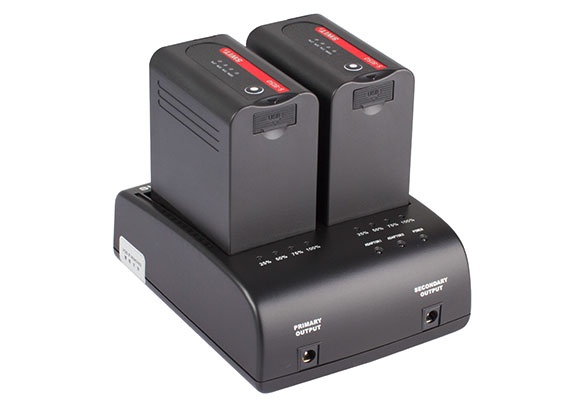

Dual Channel Simultaneous Charging

S-3602I has 2 charging channels, with DC 8.4V, 1.8A charging output for each channel, and can charge 2 batteries simultaneously.
The 4-level LED charging indicators are provided for each channel,which indicate the real time capacity by percentage when charging.

AC-DC Adapting Output

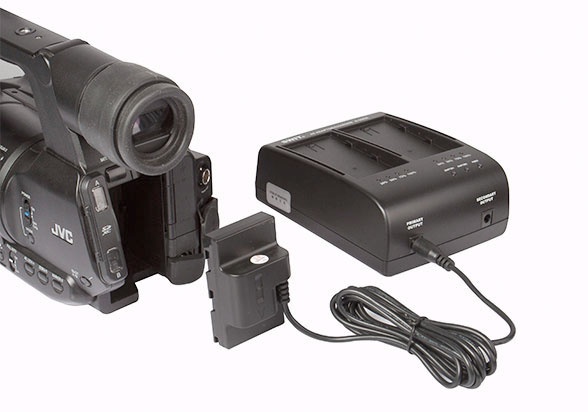

S-3602I has 2x 5.5mm/2.1mm pole sockets for DC adapting output. The DC outputs work simultaneously and provides DC 8.4V, 3.5A in total. Optional accessory: S-7500i dummy battery adaptor for adapting JVC GY-HM600/650 cameras, or the equipments with SSL-JVC50 battery mounts.

Power input

AC 100V-240V 50/60Hz

Charging output

DC 7-8.4V, 1.8A×2

Adapting output

DC 8.4V, 3.5A

Applicable battery

S-8i75, S-8i50

SSL-JVC50, SSL-JVC75

Applicable camera

JVC GY-HM600/650, HMQ10

Dimensions

136×110×47mm

Net weight

Net 0.36kg; With package 0.65kg
Basic Package

MSRP

$8222

MSRP

$8222

MSRP

$8222

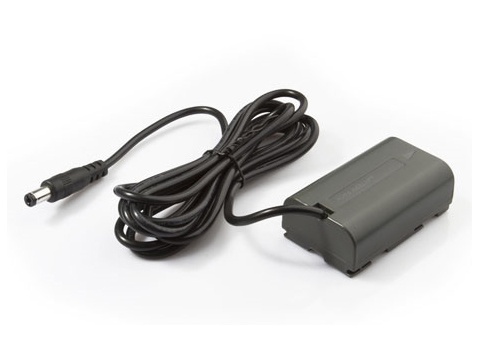

  • S-7500F

    SONY NP-F Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, SONY NP-F970/770 fit

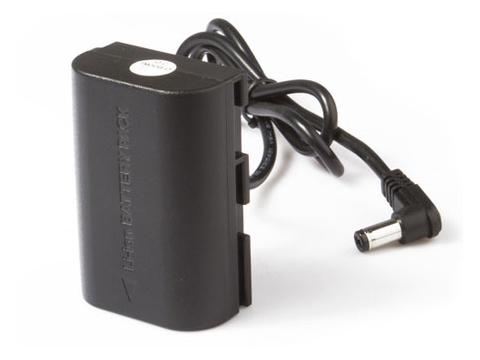

  • S-7500E

    Canon LP-E6 Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Canon LP-E6 fit

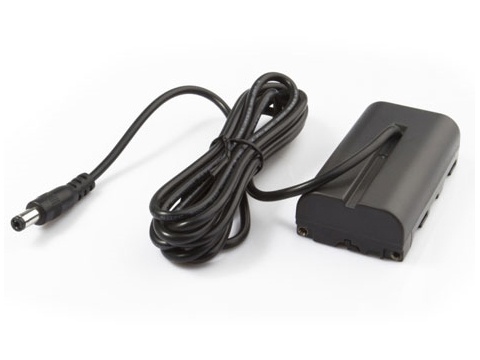

  • S-7500P

    Panasonic Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Panasonic CGA-D54, VW-VBD58, AG-VBR59 fit

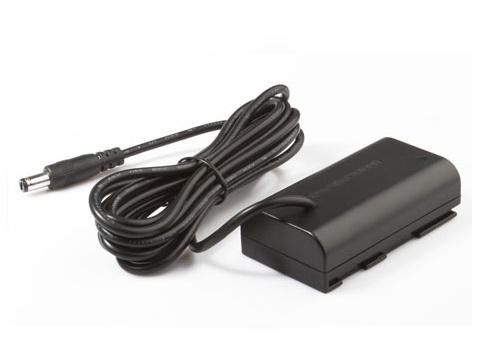

  • S-7500C

    Canon BP Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Canon BP-945 BP-970G fit

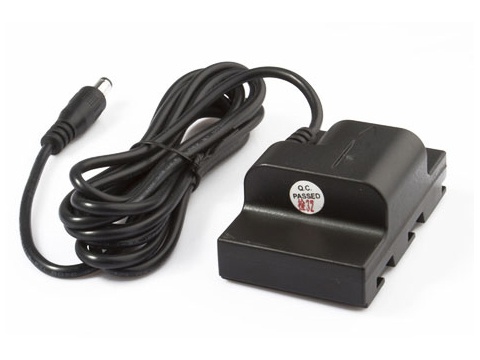

  • S-7500i

    JVC SSL Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, SSL-JVC50 type fit
