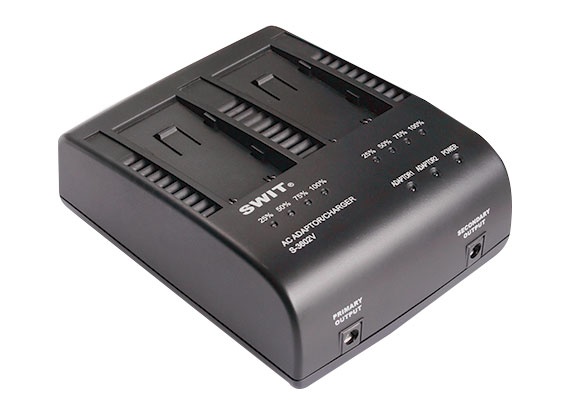

S-3602V 2-ch JVC BN-VF Charger and Adaptor
› Charger for SWIT S-8823 battery
› 2-ch simultaneous charging
› Compatible with JVC BN-VF823 DV battery
› 2 DC adapting output sockets
› 4-level LED charging indicators
JVC BN-VF823 DV Charger
S-3602V is a dual channel charger for SWIT
S-8823, and compatible with JVC BN-VF823 DV
battery.

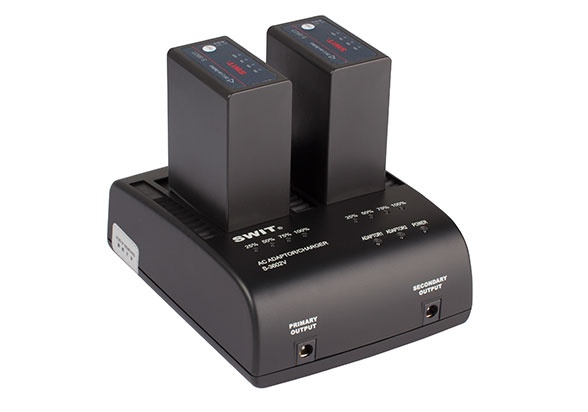

Dual Channel Simultaneous Charging
S-3602V has 2 charging channels, with DC 8.4V, 1.8A charging output
for each channel, and can charge 2 batteries simultaneously.
The 4-level LED charging indicators are provided for each channel,
which indicate the real time capacity by percentage when charging.
AC-DC Adapting Output

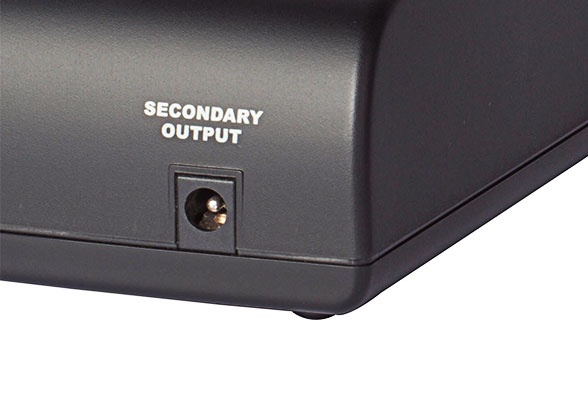

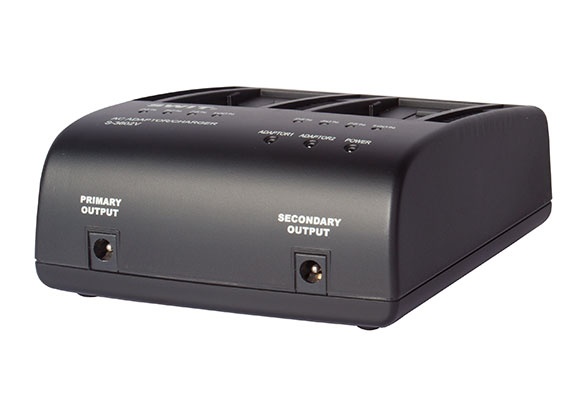

S-3602V has 2x 5.5mm/2.1mm pole sockets for DC
adapting output. The DC outputs work simultaneously and
provides DC 8.4V, 3.5A in total.
Power input | AC 100V-240V 50/60Hz |
Charging output | DC 7-8.4V, 1.8A×2 |
Adapting output | DC 8.4V, 3.5A |
Applicable battery | S-8823 |
JVC BN-VF823 | |
Dimensions | 136×110×47mm |
Net weight | Net 0.36kg; With package 0.65kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-
S-7500F

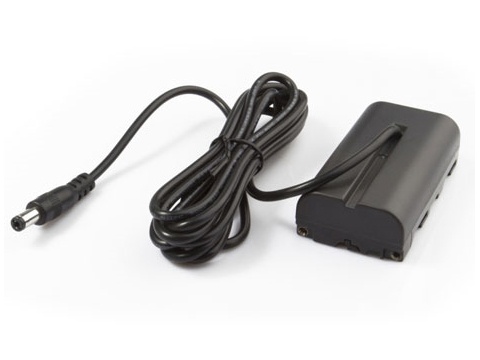

SONY NP-F Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, SONY NP-F970/770 fit -
S-7500E

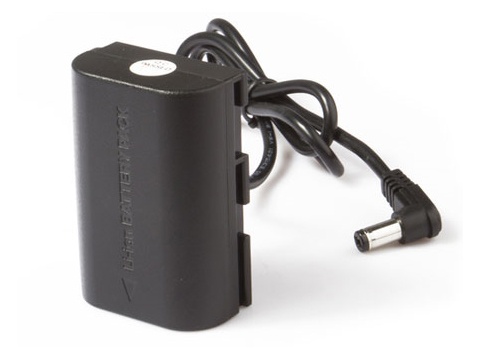

Canon LP-E6 Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Canon LP-E6 fit -
S-7500P

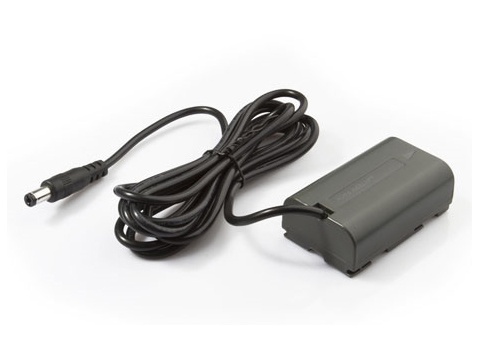

Panasonic Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Panasonic CGA-D54, VW-VBD58, AG-VBR59 fit -
