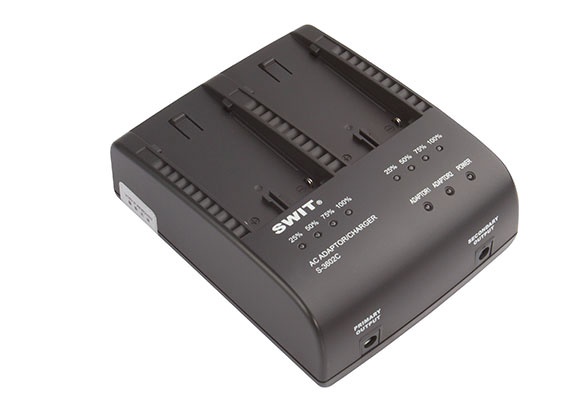

S-3602C 2-ch Canon BP Charger and Adaptor
› Charger for SWIT S-8845 battery
› 2-ch simultaneous charging
› Compatible with Canon BP series DV battery
› 2 DC adapting output sockets
› 4-level LED charging indicators
Canon BP series DV battery Charger
S-3602C is a dual channel charger for SWIT S-8845,
and compatible with Canon BP series DV batteries.

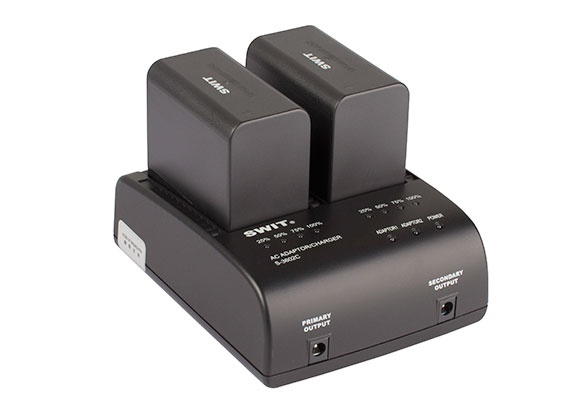

Dual Channel Simultaneous Charging
S-3602C has 2 charging channels, with DC 8.4V, 1.8A charging output for each channel, and can charge 2 batteries
simultaneously.
The 4-level LED charging indicators are provided
for each channel which indicate the real time capacity by percentage
when charging.
AC-DC Adapting Output

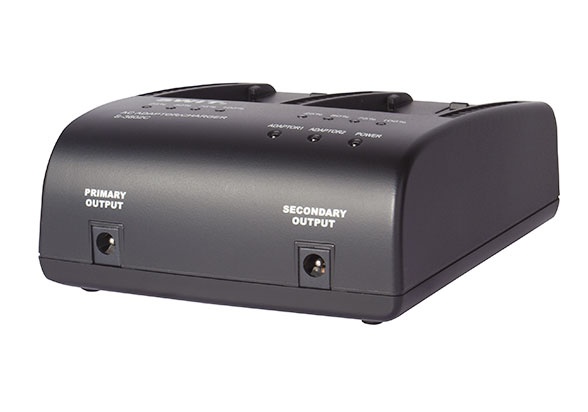

S-3602C has 2x 5.5mm/2.1mm pole sockets for DC adapting output. The DC outputs work
simultaneously and provides DC 8.4V, 3.5A in total.

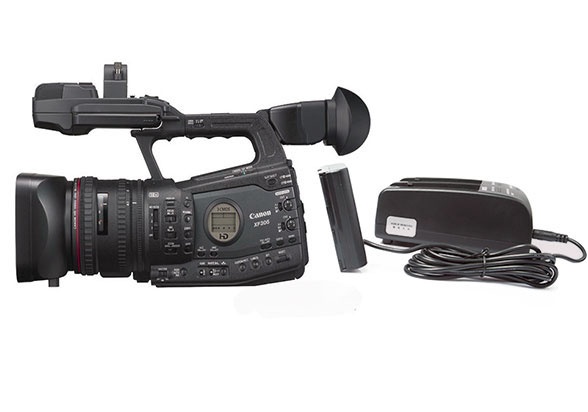

Optional accessory: S-7500C dummy Canon BP series battery adaptor for adapting
Canon DV cameras, or the equipments with Canon BP series battery mounts.
Power input | AC 100V-240V 50/60Hz |
Charging output | DC 7-8.4V, 1.8A×2 |
Adapting output | DC 8.4V, 3.5A |
Applicable battery | S-8845, S-8945 |
Canon BP-945, BP-970G | |
Applicable camera | Canon XF100/105/300/305 |
Canon XH-A1, XL-H1 | |
Dimensions | 136×110×47mm |
Net weight | Net 0.36kg; With package 0.65kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-
S-7500F
SONY NP-F Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, SONY NP-F970/770 fit -

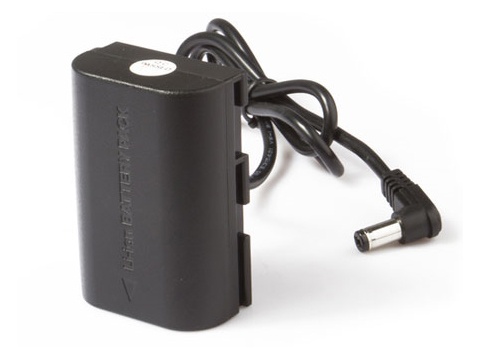

S-7500E
Canon LP-E6 Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Canon LP-E6 fit -

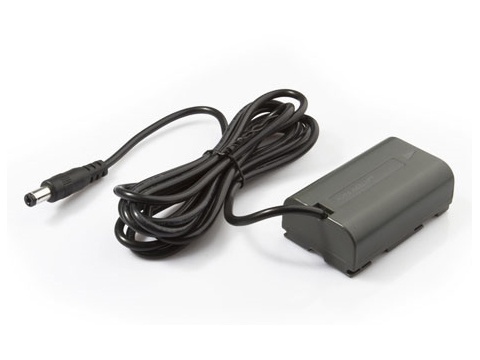

S-7500P
Panasonic Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Panasonic CGA-D54, VW-VBD58, AG-VBR59 fit -

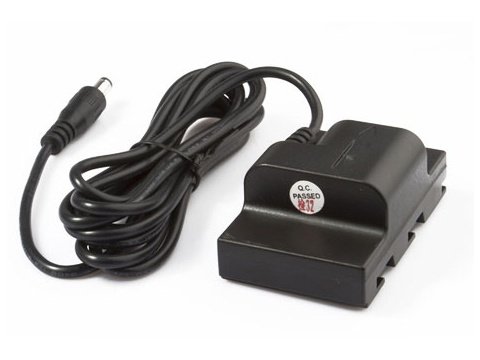

S-7500C
Canon BP Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Canon BP-945 BP-970G fit -

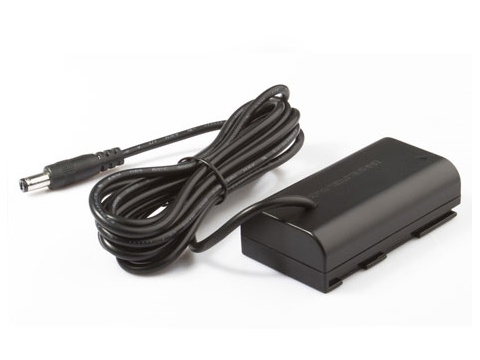

S-7500i
JVC SSL Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, SSL-JVC50 type fit
