› Standard V-mount plate
› For ARRI ALEXA LF/65/SXT etc
› Output 22-33.6V with PB-H290S
› Output original voltage with other batteries
› Aluminum CNC unibody housing
› High load reliable pins
› 2xD-tap, 1x LEMO, 1x USB output
› Multiple circuit protections

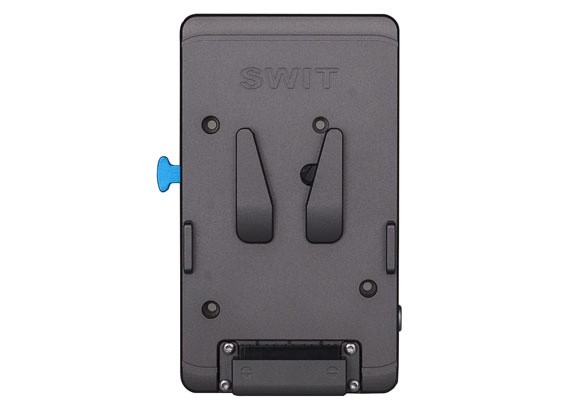

ALEXA Dedicated V-mount Plate
Aluminum CNC unibody housing

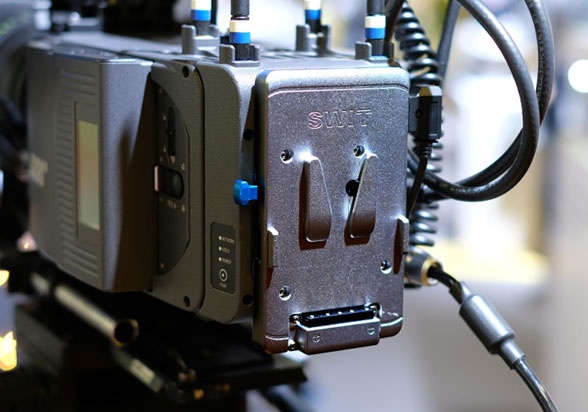

The V-mount plate KA-A20S is designed for ARRI ALEXA LF, ALEXA 65, ALEXA SXT etc, with Aluminum CNC unibody housing, perfectly match with ALEXA cameras, robust and reliable.
High Voltage to ALEXA
Match with PB-H290S to output 22-33.6V
SWIT Bi-voltage battery PB-H290S can recognize the KA-A20S plate and auto switch on 22-33.6V, to power Alexa LF/65/SXT etc.
Use other batteries, the KA-A20S plate will not change voltage, and directly power the camera.
High Load Reliable Pins
Battery Contact Pins:
Unique lantern type pins, wider contact surface,
support Max 16A current without overheating;

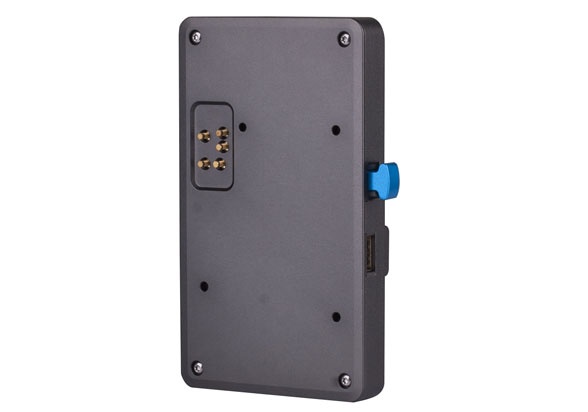

Camera Contact Pins:
Copper rod direct conducting (instead of spring
conducting), and the strong spring makes fully
contact with camera pins, ensure 10A reliable
current and prevent overheat.

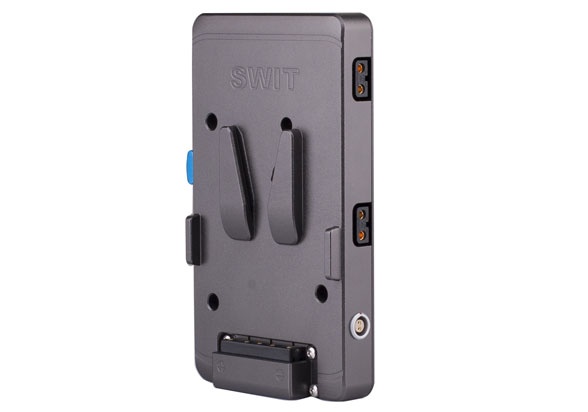

Multi DC Sockets
D-tap / LEMO / USB
KA-A20S plate provides 2x D-tap, 1x 2-pin LEMO and
1x 5V/2A USB output.
Under 22-33.6V power, the D-tap and LEMO outputs
constant 16V, Max 6A;
Under 11-16.8V power, the D-tap and LEMO outputs
original battery power.
Compatible cameras | ARRI ALEXA LF/65/SXT, AMIRA |
Compatible batteries | 14.4V standard V-mount battery (SXT) |
SWIT PB-H 14.4V/28.8V Bi-voltage battery (LF, 65, SXT) | |
DC output | D-tap x2 (Constant 16V/4A under high voltage) |
| 2-pin LEMO x1 (Constant 16V, Max 6A under high voltage) | |
USB 5V/2A x1 | |
Dimensions | 142×82×17mm |
Net weight | 350g |
