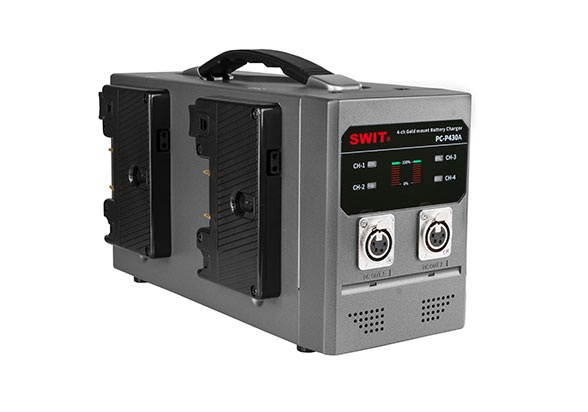

PC-P430A 4-ch Gold Mount Fast Charger

›  Gold mount battery charger

›  4-ch simultaneous charging

›  3A fast charging per channel

›  2x 15V/6A 4-pin XLR DC output

›  LED charging indicators

Features

4-ch Simultaneous Charger

For Gold mount batteries

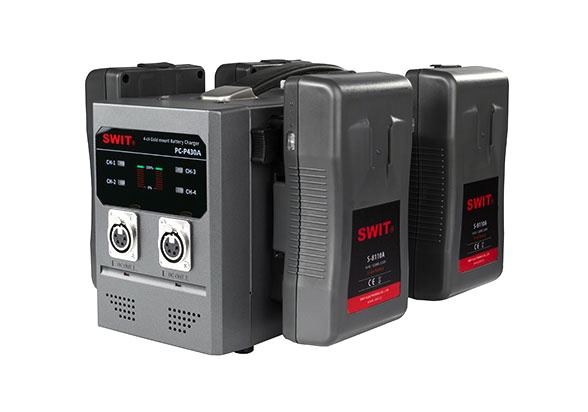

PC-P430A can charge 4pcs Gold Mount camera batteries simultaneously. The charging output is DC16.8V, 3A each channel.

LED Charging Indicators

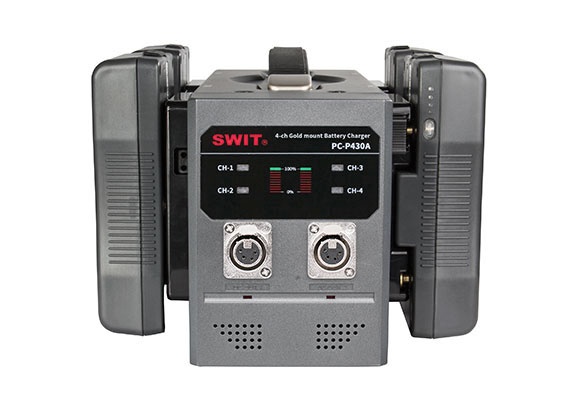

The PC-P430A has LED charging indicators on the front panel, indicates the real time capacity of each channel by different colors:
Display Red: Battery is charging, capacity below 80%;
Display Yellow: Battery is charging, capacity above 80%;
Display Green: Charging finished..

AC-DC Adapting Output

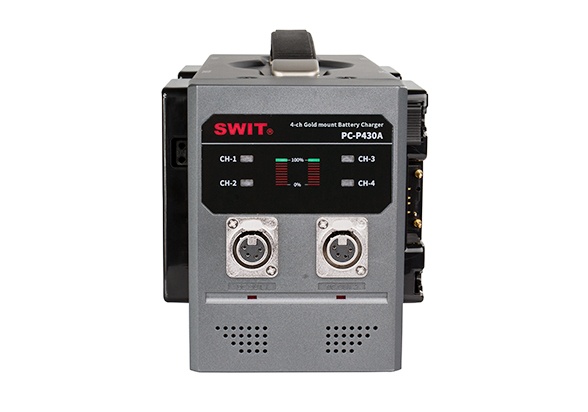

PC-P430A has 2x 4-pin XLR female connector on the front panel. Connected with SWIT S-7102 XLR female to male cable (optional purchase), the PC-P430A can be used as AC-DC adaptor of 2-ch DC 15V, 6A, 90W simultaneous output.
Please note the AC-DC adapting output will not work when battery is charging.

Power

Max 276W

Input

AC100V-240V 50/60Hz

Charging output

DC 16.8V, 3A×4

Adapting output

DC 15V, 6A×2

Dimensions

285×144×173mm

Net weight

3.27kg
Basic Package

MSRP

$8222

MSRP

$8222

MSRP

$8222

  • S-7102

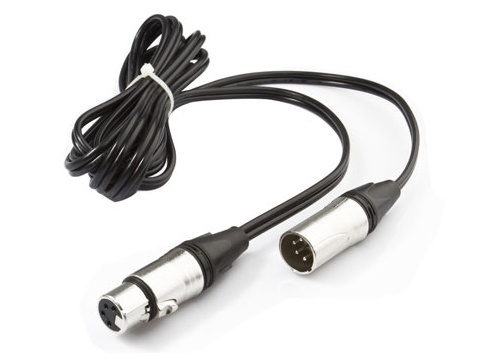

    4-pin XLR female to male cable, for 4-pin DC adapting output
  • PC-P430S

    4-ch V-mount Fast Charger

    3A×4 fast charging current; AC-DC adapter output, LED charging indicators

    $8222
  • S-3822A

    2-ch Gold Mount Fast Charger

    2-ch simultaneous charging, 3A fast charging, Portable, support AC-DC adaptor output

    $8222
  • S-3812A

    2-ch Gold mount Super Fast Charger

    2-ch simultaneous charging, Max 6A fast charging, support AC-DC and Battery-DC adaptor output, LCD display working status

    $8222
