› KUWI 5.1-5.9GHz Wireless Technology
› DFS Comply
› HDMI input and loop output
› USB Video Capture output for PC/Mac
› 500ft/150m (Line-of-Sight) distance
› Strong Wall-Cross Performance
› 2-ch HDMI audio transmission
› Auto detecting wireless environment and switching
› Support 7 pairs working in one location
› Wireless protocol & content double encryption
Wireless HDMI Transmission
New Update with USB Video Capture

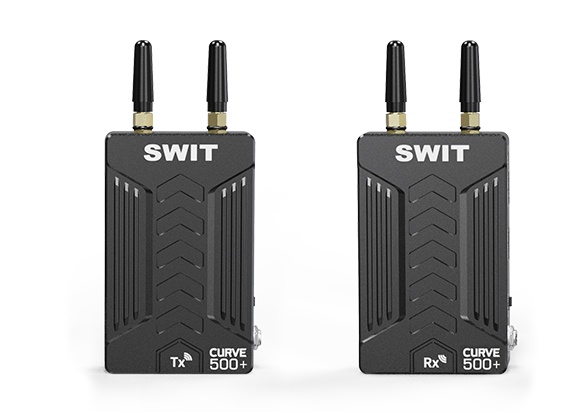

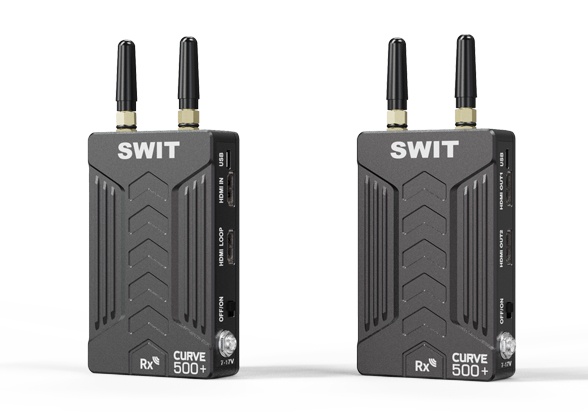

CURVE500+ wireless system is based on SWIT KUWI
wireless video technology, NOT WIFI, 5.1-5.9GHz
license free, DFS comply, supports HDMI 1080p60
transmit 500 feet (150 meters) Line-of-Sight distance.
As the updated version, CURVE500+ support USB video capture output to computer for live streaming.

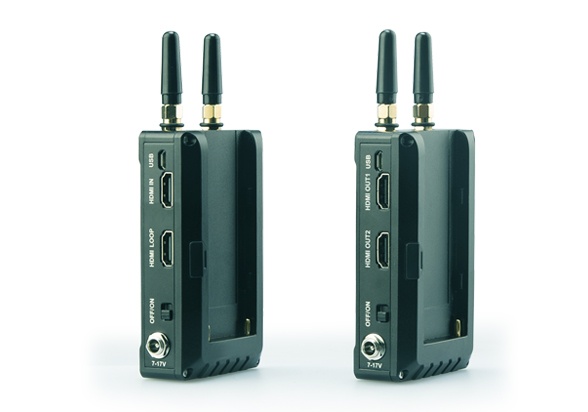

Input & Output
The Transmitter (Tx) supports
1x HDMI input
1x HDMI loop output
The Receiver (Rx) supports
2x HDMI output
1x Micro USB Video Capture output
USB Video Capture for PC/Mac
CURVE500+ Receiver provides an USB port for video capture
output to computer. You can find CURVE500+ wireless video
source from video conference software like MS Team, ZOOM
etc, to capture high quality up to 1080p60 video instead of computer webcam.
USB Video Capture for PC/Mac
You can pull CURVE500+ wireless receiving
video source to OBS studio, editing, switching
and live streaming broadcasting.
500ft/150m Strong Wall-cross
CURVE500+ supports 500ft/150m (Line-of-sight) reliable
wireless transmission, and featured stronger wall-cross
performance due to both RF optimize and image quality
optimize, so that will keep video transmission without
date lost or crash comparing to regular 5GHz wireless
transmitters.
* Supports HDMI embedded audio (CH1&2) transmission.
Backstage Frequency Jumping
CURVE500+ works between 5.1-5.9GHz, DFS comply,
and has built-in wireless scanner to detect wireless
condition and automatically jump to the best wireless
channel to keep reliable connection and transmission.
Up to 7 Pairs Work Together
At one location, you can use up to 7 pairs of CURVE500+
wireless system, without interference to each other.
Input / Output
Transmitter | HDMI 1.3 input ×1 HDMI 1.3 loop output x1 |
Receiver | HDMI 1.3 Primary output ×1 HDMI 1.3 Secondary output x1 Micro USB video capture output x1 |
Video Formats
HDMI | 1080p60, 1080p59.94, 1080p50 |
| 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; | |
| 1080psf23.98, 1080psf24 | |
| 1080i60, 1080i59.94, 1080i50; | |
| 720p60, 720p59.94, 720p50 | |
USB | 1080p60, 1080p59.94, 1080p50 |
| 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; | |
| 720p60, 720p59.94, 720p50 |
Wireless
Frequency | 5.17GHz-5.69GHz and 5.75GHz-5.83GHz |
RF Modules | OFDM 16QAM, 64QAM, QPSK, BPSK |
RF Power | 50mW |
Transmission Distance | 500 feet / 150 meters (Line of sight) |
General
Input voltage
| Transmitter DC 7-17V Receiver DC 7-17V |
Power Consumption
| Transmitter 7.5W Receiver 7W |
Dimension(w/o antenna)
| Transmitter 114.18×69.55×28 (mm) Receiver 114.18×69.55×28 (mm) |
Net weight
| Transmitter 180.8g Receiver 181.2g; With package 1.05kg |
Working Temperature | 0°C -+40°C |
MSRP
MSRP
MSRP
-

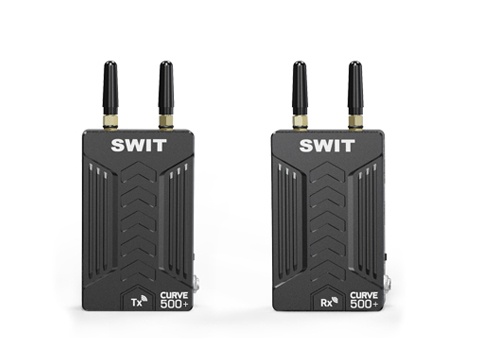

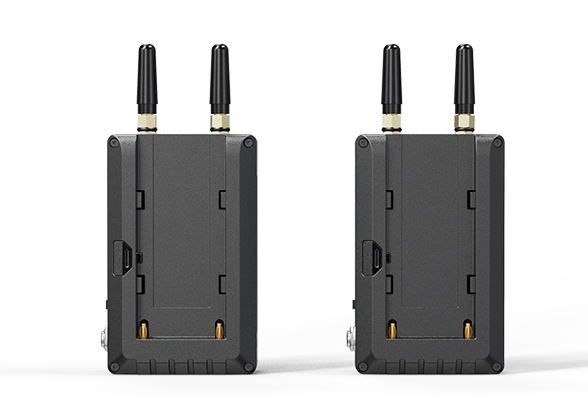

CURVE500+ 1x Transmitter 1x Receiver
-

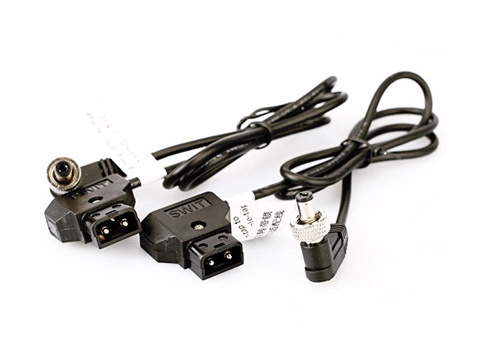

D-tap to lockable Pole-tap cable x2
-

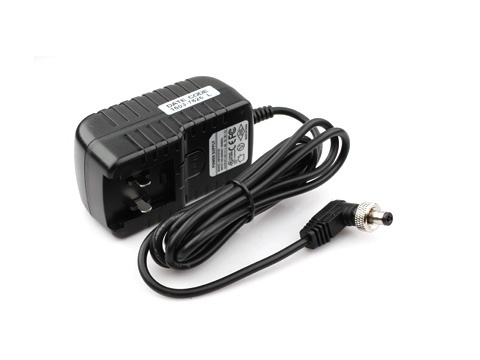

AC-DC Adaptor
-

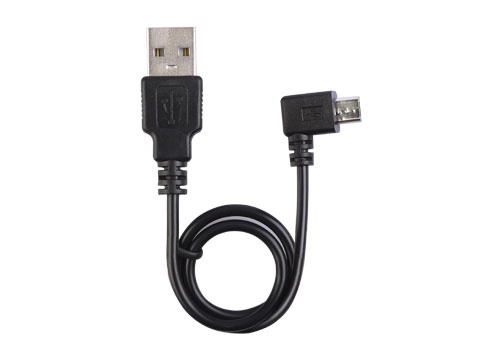

Micro USB to USB-A cable
-

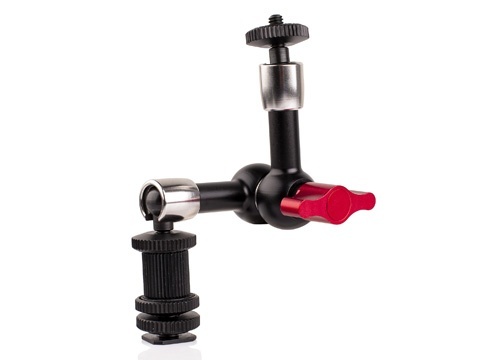

Arm Trestle
Cold shoe and 1/4" Arm Trestle to mount the Transmitter onto camera. -
Antenna
Spare omni antenna for FLOW500 and CURVE500+, both Transmitter and Receiver
