› 17.3-inch LCD Panel, 1920×1080 resolution
› 2K/3G/HD/SD-SDI( x2 ), HDMI monitoring
› Y/Pb/Pr, VGA, CVBS monitoring
› 3DLUT 17x17x17 color calibration
› Built-in Multiple De-log 3DLuts
› User LUTs upload by USB
› 16-ch Embedded audio meters with alert
› Select any 2 audio channels to output
› Waveform Y/Cb/Cr/R/G/B and single line
› Vector scope, histogram R/G/B/Y
› Peaking focus assist (red/blue switch)
› AFD, Timecode, H/V delay
› TSL UMD and text TALLY display
› Safety Marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
› False Color, R/G/B/Mono, Zebra stripes, Internal Color Bar
› V-mount / Gold mount battery plate optional
› 19inch Rack install, 7U height
› USB firmware upgrade

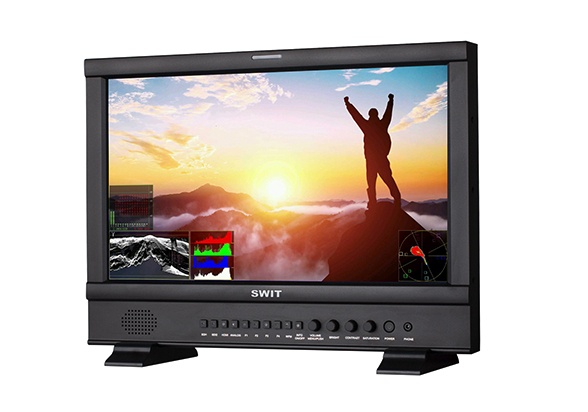

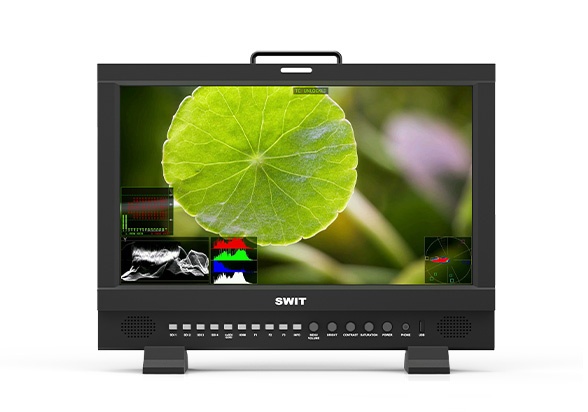

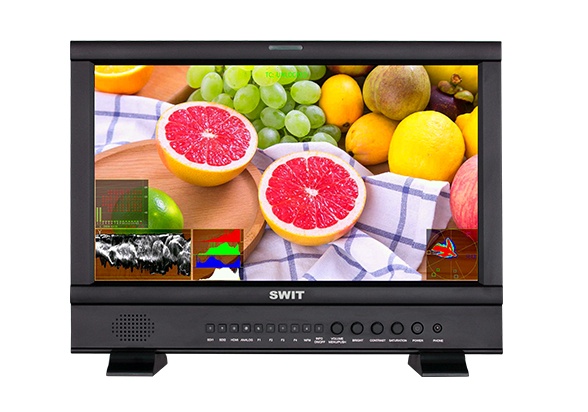

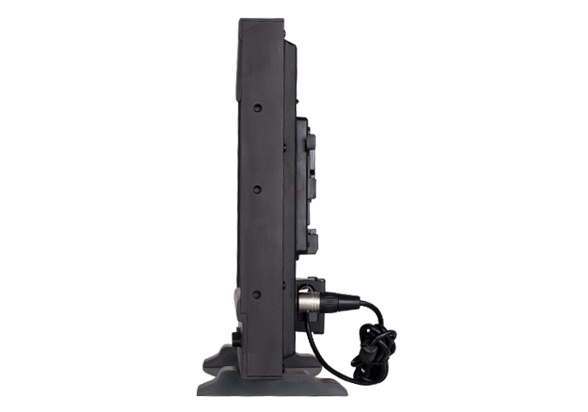

17.3-inch Full HD Studio LCD Monitor
AH-IPS LCD panel, LED backlight
S-1173F adopts a 17.3 -inch IPS (In-Plane Switching) LCD panel,
Full HD 1920×1080 resolution and LED backlight, 700:1 contrast
for accurate color reproduction. The viewing angle is Horizontal:
160° / Vertical: 160°.

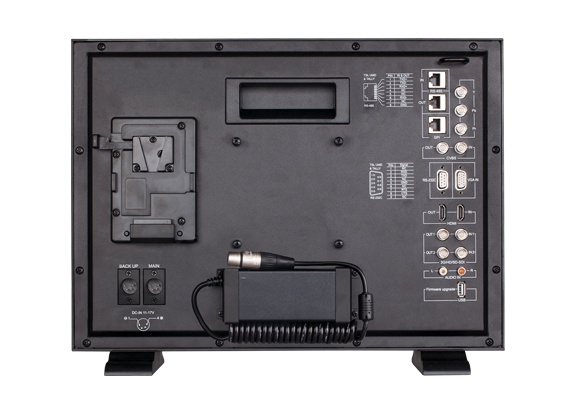

Multi-format Input/Output
S-1173F supports：
2K/3G/HD/SD-SDI input×2
2K/3G/HD/SD-SDI loop ×2
HDMI input ×1
HDMI loop×1
YUV input ×1
VGA input ×1
CVBS input ×1
CVBS loop ×1
RS485 UMD input×1
RS485 UMD output×1
RS232C UMD input ×1
RS485 GPI input ×1
L/R analog audio input×1
Video Analysis Assistant Pattern
Waveform / Vector scope / Histogram
S-1173F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the
digital video quality info (Luma, Color, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position
(Up/Down/Left/Right), size, color, and translucence.
Embedded audio monitoring
Up to 16-ch meters with alert and select output
S-1173F supports SDI-16ch and HDMI-8ch embedded
audio meters display, with marks and audio abnormal alert
info. Users can also select any 2 channels audio to output
via 3.5mm socket or speakers. The audio meter pattern
position can be selected from Up/Down/Left/Right, and
you can select to display only 2 channels, 8 channels, and
full 16 channels. Also scale markers, alert info, and
translucent of the audio meter pattern are selectable.
UMD and Text-Tally Display
TSL 3.1/4.0 Protocol
S-1173F supports UMD and Text-Tally display of
TSL 3.1/4.0 protocol, with 1-126 TSL address
selection, and Max 8 letters displayed. The UMD
inputs via RS485 or RS232C port and outputs via
RS485 port.
Peaking, R/G/B/Mono only, Zebra, False color
Timecode, H/V delay, AFD, Scale Markers
3DLUT Color Calibration
Built-in De-Log LUTs and User LUT upload
Support 17x17x17 3DLUT accurate color calibration. Use
professional color analyzer (KONICA MINOLTA CA310 e.g.)
and 3DLUT calibration software (SpectralCal CalMAN5 e.g.)
to measure and generate 3DLUT cube file to upload to the
monitor by USB stick.
The monitor also has built-in camera logs to Rec 709 con-
version LUTs, including Log-C, C-log, S-log2， S-log3,
V-log, J-log1, RedLogFilm.
You can import own 3DLUTs to monitor by USB stick.
USB Firmware Upgrade
S-1173F provides a standard USB port for
firmware upgrade. Users can download
the latest firmware file to a USB stick, and
directly insert into S-1173F monitor to
upgrade, without PC connection.
Multiple Power Sources
AC adaptor / V-mount / Gold mount
S-1173F provides a 4-pin XLR socket of DC 11-17V
power input, and V-mount or Gold mount plate for
outdoor using.
3-color TALLY Light
RS485 input signal
There are three colors for the Tally light: Red,
Green and Yellow. Users can define the pins of RS485 port to control the TALLY lights.
Dimension
LCD Performance
Size | 17.3inches |
Display area | 381.89×214.8mm |
Resolution | 1920×1080 |
Aspect ratio | 16:9 (4:3 adjustable) |
Brightness | 300cd/m2 |
Contrast | 700:1 |
Color depth | 16.77 million color |
Viewing angle | 160°(H)∕160°(V) |
Input
BNC ×2 | 2k/3G/HD/SD-SDI input×2 |
BNC ×1 | CVBS input |
BNC ×3 | Y/Pb/Pr input |
HDMI ×1 | HDMI input |
RS485 ×2 | GPI×1, UMD×1 |
RS232C ×1 | UMD |
VGA ×1 | VGA input |
RCA ×2 | L/R audio input |
USB ×1 | USB input (firmware upgrade) |
Output
BNC ×2 | 2K/3G/HD/SD-SDI Loop output |
BNC ×1 | CVBS Loop output |
HDMI ×1 | HDMI Loop output |
RS485 ×1 | UMD×1 |
3.5mm ×1 | SDI/HDMI embedded audio output, analog audio output |
Video Format
CVBS | NTSC∕PAL |
SDI | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50) | |
| 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94) | |
| 576i (50) | |
HDMI | 480i/ 576i / 480p / 576p |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
Y/Pb/Pr | 480i/ 576i / 480p / 576p, 720p (50/60), 1080i (50/60), 1080p (50/60) |
VGA | 640×480 / 800×600 / 1024×768 / 1152×864 / 1280×768 |
| 1280×960 / 1280×1024 / 1600×1200 |
General
Input voltage | AC: 100V-240V DC: 11V-17V |
Power consumption | ≤32W |
Working temperature | 0°C～+40°C |
Working humidity | 10%～90% |
Storage temperature | -15°C～+60°C |
Storage humidity | 10%～90% |
Dimensions | 430×310×73mm |
Net weight (main body) | Net 4.65kg; With package 7.45kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

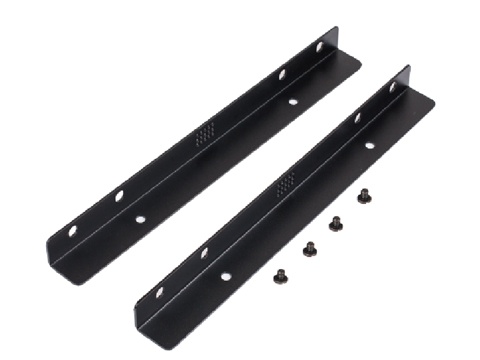

19-inch rack bracket
-

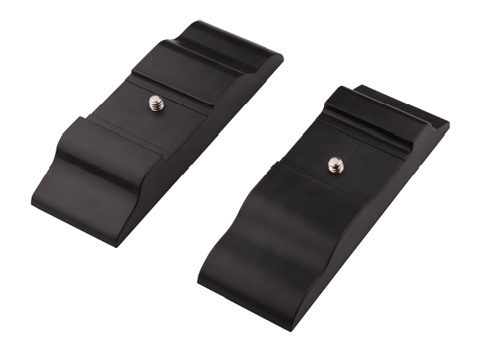

Desktop feet
-

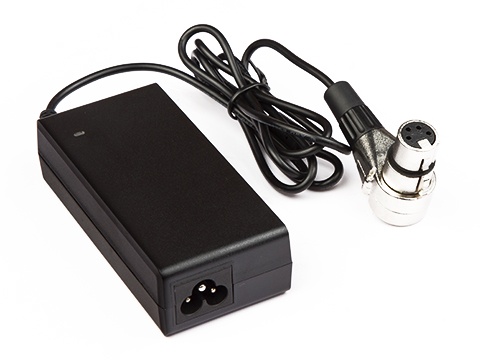

AC-DC Adaptor
-

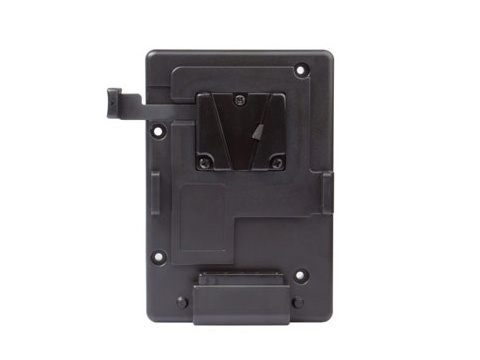

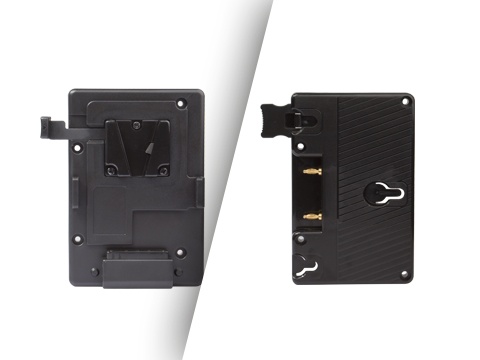

S-7004S (V-mount) / S-7004A (Gold mount) plate
-
S-7004A

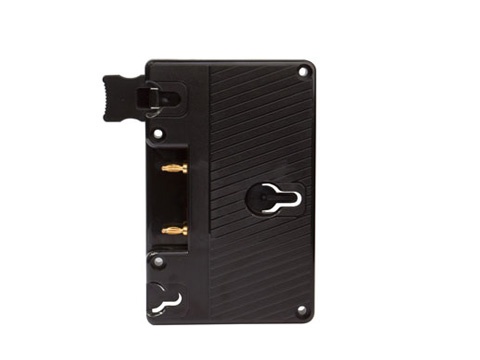

Gold mount plate with 2-pin power connector to plug into the monitor internally, without external DC cable. -
S-7004S
V-mount plate with 2-pin power connector to plug into the monitor internally, without external DC cable.
