› Li-ion, 14.4V, 160Wh large capacity
› At least 200W, 16A constant load
› D-tap output socket
› 4-level LED power indicator

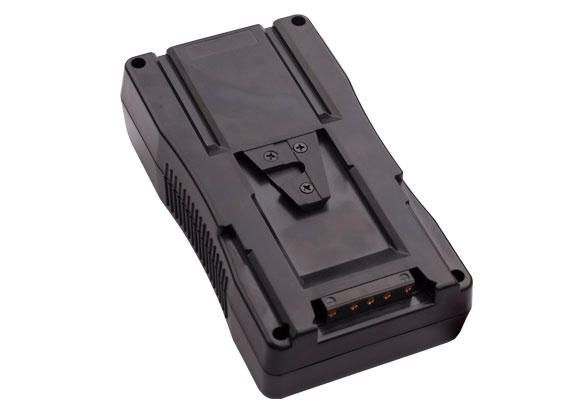

› V-mount connection
› Multiple circuit protections
High-Load Li-ion Cells
Normal Li-ion batteries offer 100W/8A output and suitable for most ENG cameras, but the Cine Cameras such as ALEXA require around 85W high draw which is too heavy for the normal Li-ion batteries: the battery life will be reduced if long time full draw powering. Moreover, if there’re monitor, lighting work together, and total power will be above 100W, and the normal batteries can not draw completely.
Using S-8113S high-load battery, you can get at least 200W/16A constant power output, which can drive more high power cameras, lightings and other equipments easily, and won’t reduce battery life during long time high power output.
160Wh / 11.1Ah High Capacity
Consists of 16pcs 18650 battery cells, and reaches
160Wh/11.1Ah high capacity.
run approx 5 hours for normal 30W ENG cameras.
6A Fast Charging
S-8113S supports 6A fast charging, to save
more than 50% charging time, can be
charged from 0 to 80% after 1.5 hours, and
fully charged within 2.5 hours.

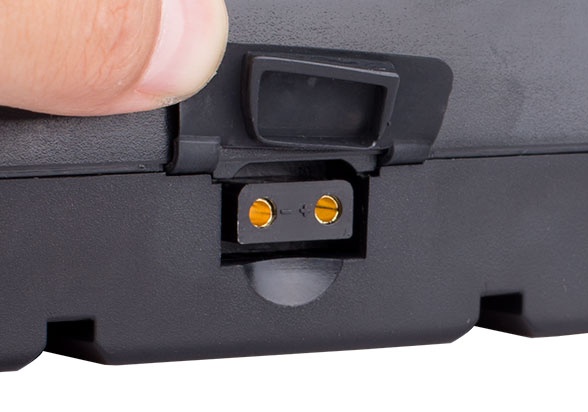

Build-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the top side of S-8113S
battery, for DC14.4V (Nominate) connection, such as on-camera
lights, monitors, wireless transmitter, etc..
The Max Power from D-tap is 120W, 10A.

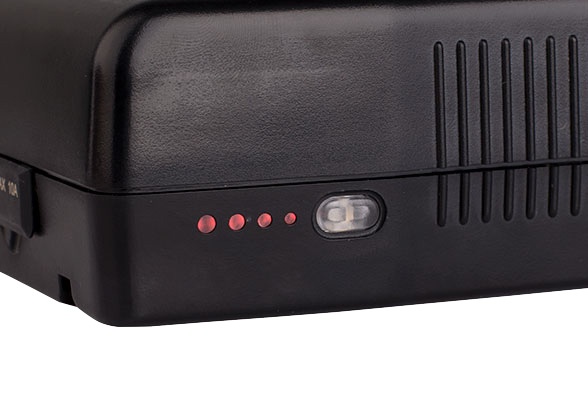

4-level LED Power Indicator
On the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity.
You can get a quick view of capacity before using.
Nominal Voltage | 14.4V |
Capacity | 160Wh/11.1Ah |
Max output power | In total:200W |
| Electrodes:200W,16A | |
| D-tap:120W,10A | |
Mount Type | V-mount |
Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C（Capacity and Max Load may decrease when operating below 0°） |
Net weight | Approx 0.9kg |
Dimensions | 165×90×51mm |
