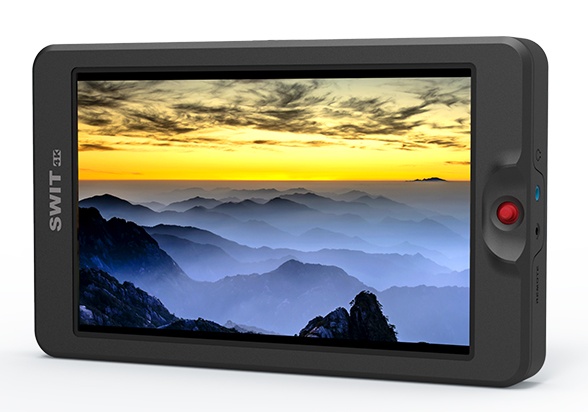

CM-S75C 7 inch 3000nit Super Bright HDR LCD Monitor

›  7-inch IPS LCD, 1920×1200 FHD

›  3000nit super bright, sunlight visible

›  PQ/HLG HDR monitoring

›  HDMI 1.4 (4K30p) input and loop out

›  2x 4x Quick zoom-in and Pan

›  Peaking focus assist and precision adjust

›  Waveform / Vector / Histogram

›  Build-in 30 kinds of De-log 3DLUTs

›  User DIT 3DLUT import by SD card

›  2-ch HDMI audio meters display

›  Super False color, Zebra stripes, Anamorphic

›  Built-in NP-F plate, V-mount for option

Features

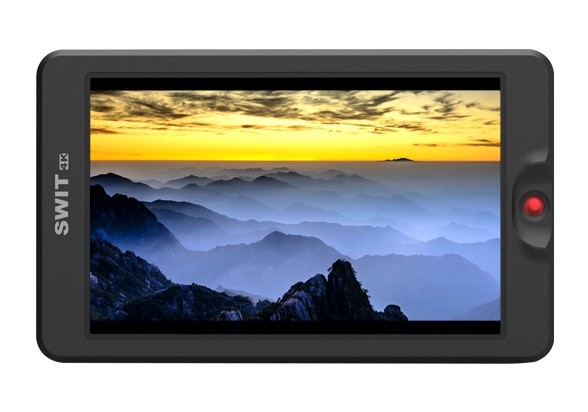

3000nit Super Bright

Sunlight visible, PQ/HLG HDR

The CM-S75C adopts a 7-inch super high bright LCD, the Max brightness is 3000nit, visible under sunlight, and built-in PQ, HLG HDR.
The native resolution is Full HD 1920×1200, contrast 1200:1

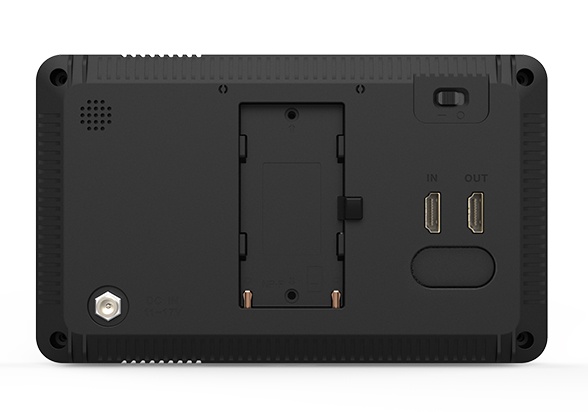

Input/Output Interfaces

4K-HDMI input and loop out

CM-S75C monitor supports:
HDMI 1.4 (4K30p) input × 1
HDMI 1.4 (4K30p) loop output × 1
3.5mm embedded audio output

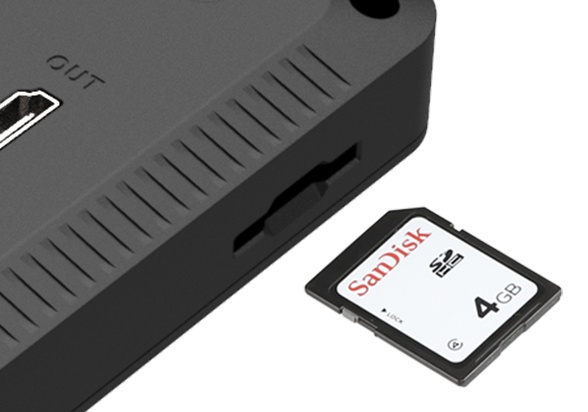

SD card input for 3DLUT upload and Firmware upgrade



Single Joystick Operation

The monitor operation can be easily realized by only one Joystick:
Up: Quick Zoom-in mode
Down: Quick adjust backlight
Long Down: Delete current scene
Left/Right: Preset Scenes switching
Long Left: Enter Menu system
Long Right: Add a new scene
Press down: Edit tools shortcuts / Confirm settings

Scene Layout Edit and Switch

Different from the traditional multi-buttons monitors, the CM-S75C adopts the preset scenes and switching operations. You can add up to 8 scenes, and add 8 function shortcuts to each scene. Scroll the joystick left / right to switch between the layout scenes easily, instead of complex menu buttons operations.

Built-in De-log 3DLUT

CM-S75C has built-in HLG, PQ3000, PQ10000 HDR 3DLUTs and 30 kinds of Rec709 De-log 3DLUT, Includes S-log2/3, V-log, C-log1/2/3, Log-C, J-log1, RedLog, BMD, FujiFilm, GoPro, DJI etc, to convert log mode to REC709 for all major cameras.

User 3DLUT upload

User 3DLUT cube or calibration 3DLUT cube can be uploaded to the monitor by SD card. Support 17^3, 33^3 and 65^3 cubes. Max 16 user 3DLUTs can be restored.

Anamorphic
De-Squeeze

Enables de-squeeze the image from a camera utilizing anamorphic lens, Aspect Formats:
16x9,
4x3,
x1.3 Anamorphic De-Squeeze
x2.0 Anamorphic De-Squeeze
x2.0 MAG Anamorphic De-Squeeze

Quick Zoom-in and Pan

Scroll the joystick up, to zoom-in the image by 2x or 4x; and during zoom-in mode, press the joystick, you can easily pan the image up/down/left/right by the joystick.

Video Tools

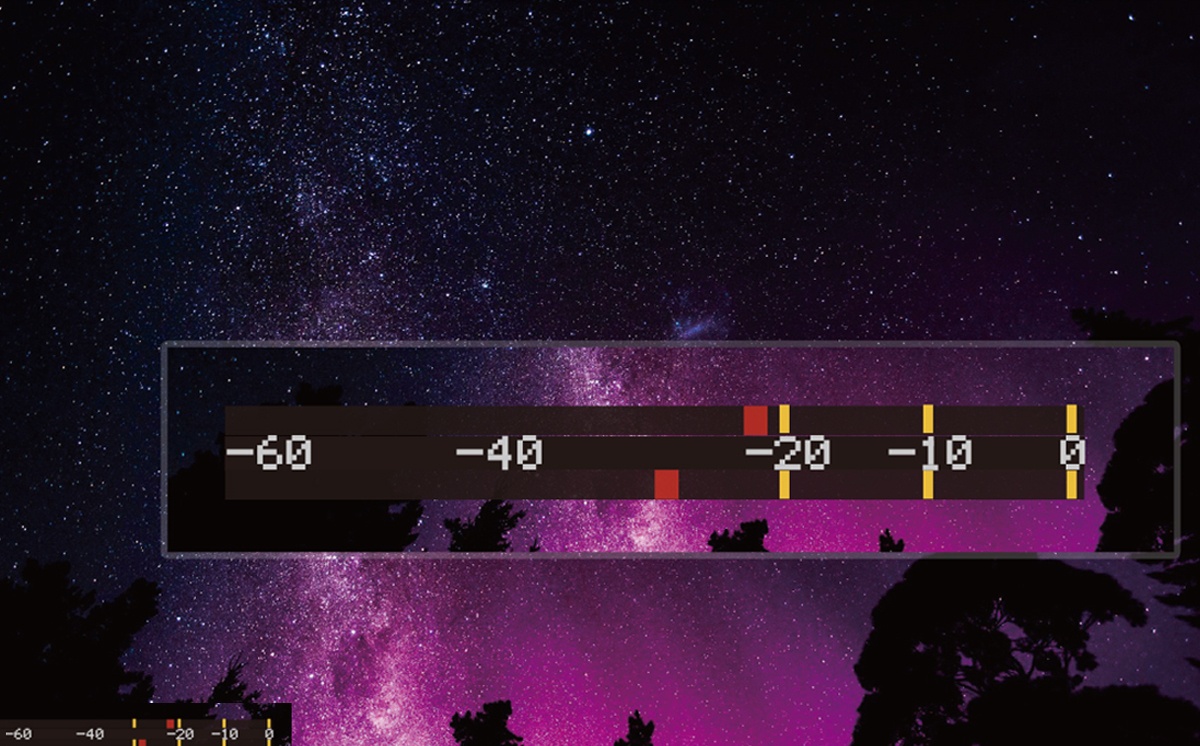

2-ch HDMI embedded audio meters

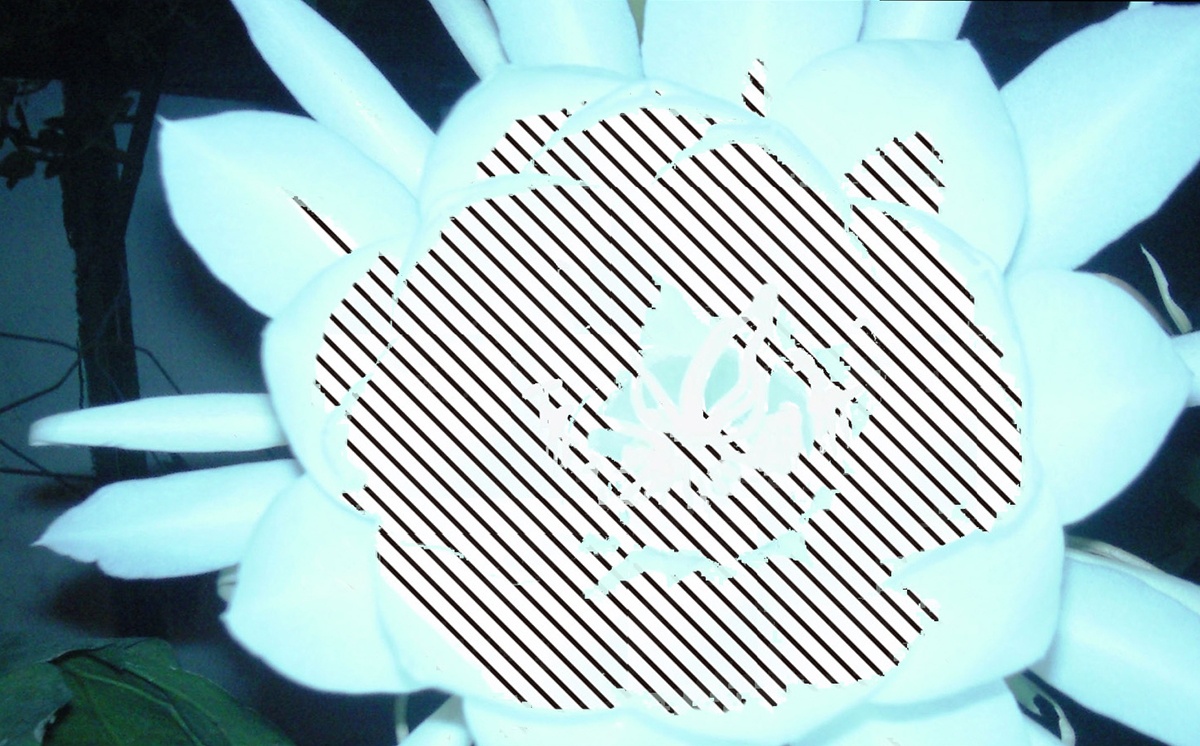

Zebra stripes with level adjustment

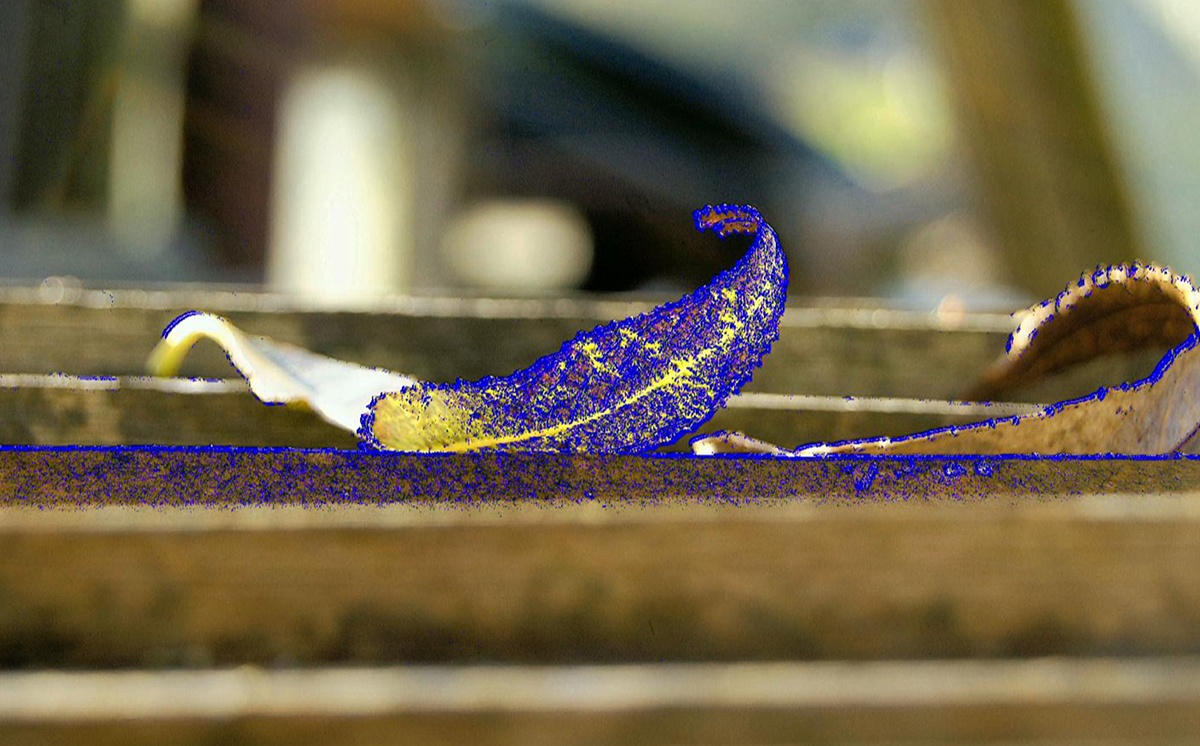

R/G/B 3-color Focus assist

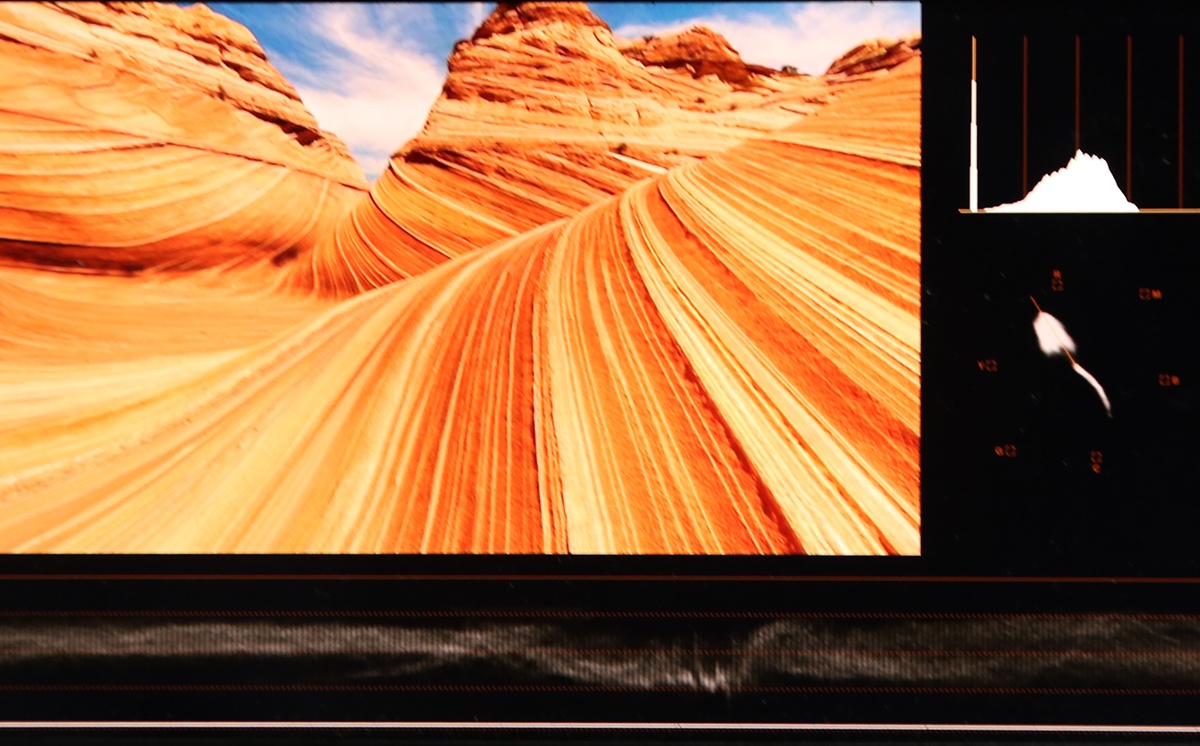

Waveform, Vector scope, Histogram

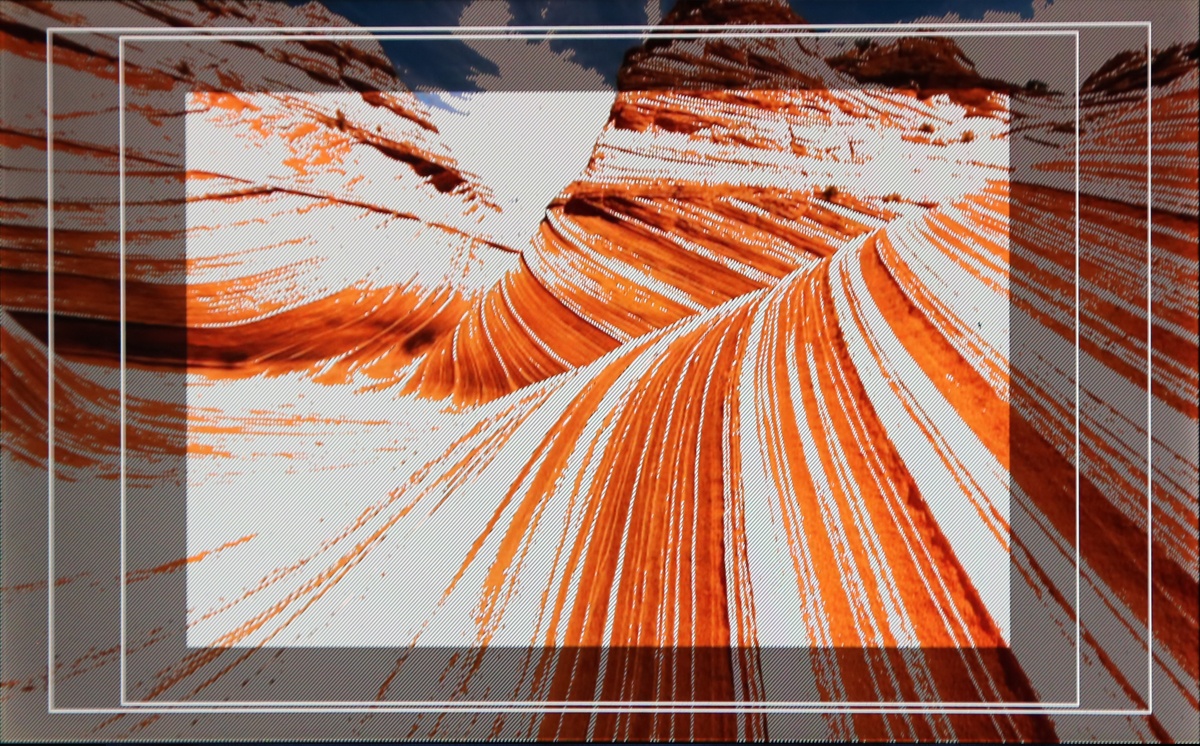

Aspect ratios, safe area (action & title)

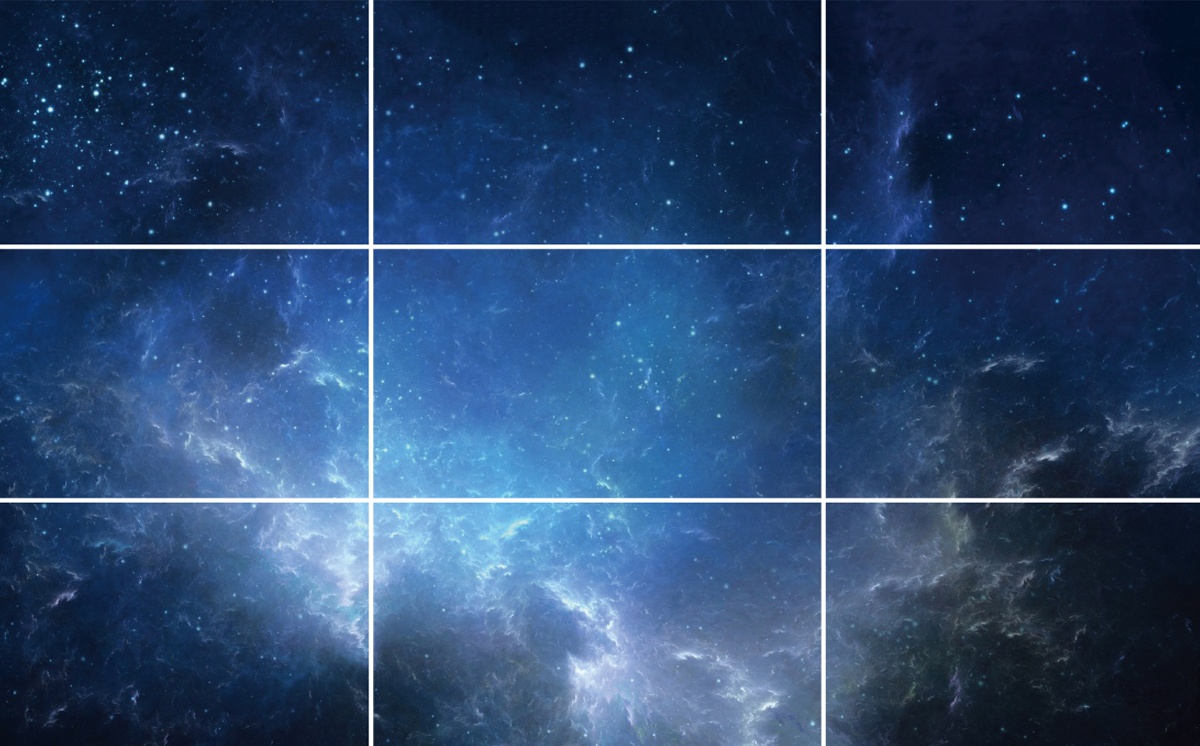

Crosshatch 3x3 to 10x10 selectable

Super False Color Exposure Assist

Besides normal spectrum false color, the CM-S75C supports more powerful Super False Color mode, including un- der-exposure / Over-exposure A/ 18 degree grey / Skin tone indications, to help you to get a correct exposure easily. The exposure indicators are calculated for different cameras. You can select the log curves from SONY 709/S-log2/3, Panasonic 709/V-log, BMD/4K, Canon C-log2/3, ARRI 709/Log-C, REDLogfilm, RED RG3/4/RL3G10.

Power Input

CM-S75C has a built-in NP-F DV battery slot, supports 11-17V DC-IN (5.5/2.1mm pole-tap), and provides an optional V-mount plate to install V-mount batteries.
The Max power consumption is 16.2W with full 3000nit backlight.

Reviewed by Matthew Allard

See CM-S75F/C newsshooter review, by Matthew Allard, the multi-award-winning ACS accredited freelance Director of Photography with 29 years' experience working.
Matthew has won 41 ACS Awards, including four prestigious Golden Tripods. In 2016 he won the Award for Best Cinematography at the 21st Asian Television Awards.

LCD Performance

Size

7 inches

Display area

151.2×94.5mm

Resolution

1920×1200

Aspect ratio

16:10

Brightness

3000 nit

Contrast

1200:1

Color

16.77 million colors

Viewing angle

Horizontal: 160°; Vertical: 120°

Input

HDMI-A ×1

HDMI 1.4 input

SD card ×1

3DLUT upload and Firmware upgrade

Output

HDMI-A ×1

HDMI 1.4 loop output

3.5mm ×1

HDMI embedded audio output

Speaker

HDMI embedded audio output

Video Format

HDMI

4096×2160p (30 / 29.97 / 25 / 24 / 23.98)

3840×2160p (30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
480p / 576p

General

Input voltage

5.5/2.1mm Pole-tap DC 11-17V input; NP-F battery 6-8.4V input

Power consumption

Max 16.2W

Working temperature

0°C~+50°C

Working humidity

10%~90%

Storage temperature

-15°C~+60°C

Storage humidity

10%~90%

Dimensions

192×116.3×24.7mm

Net weight (main body)

438g
Basic Package

MSRP

$9000

MSRP

$12000

MSRP

$13000

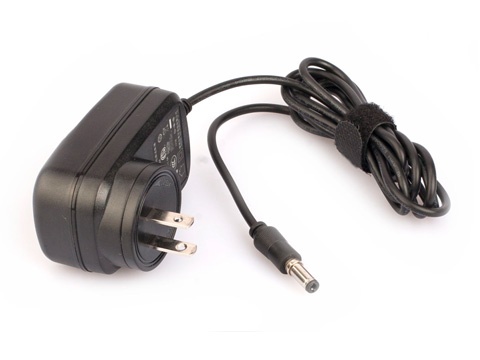

  • AC-DC Adaptor

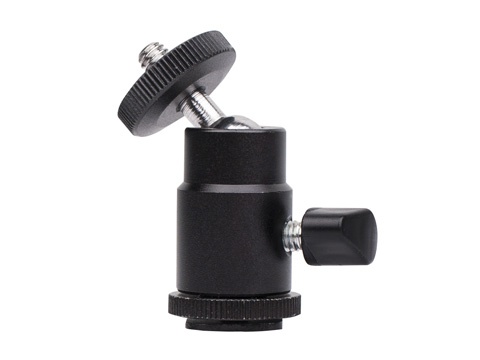

  • Ball head

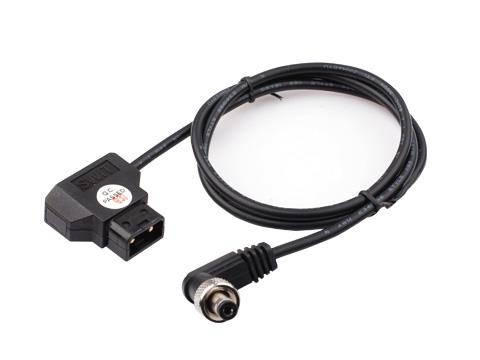

  • D-tap to DC cable

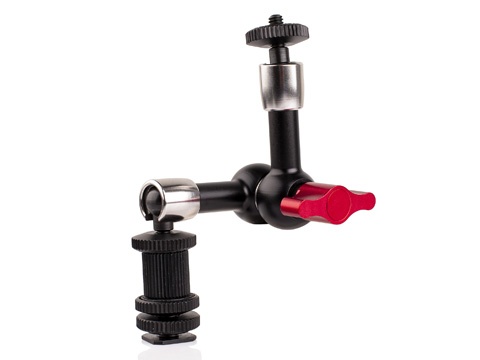

  • Arm Trestle

    Cold shoe or 1/4" screw installed onto cameras, and 1/4" screw to install monitor.

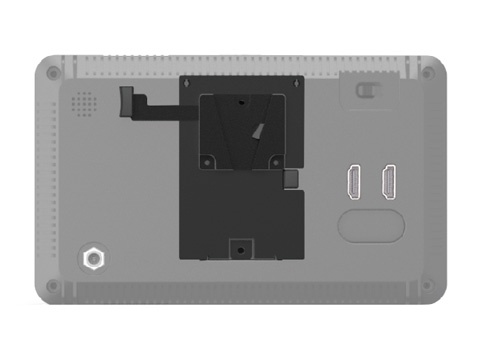

  • V-mount plate

    Spare V-mount plate to be installed on the backside of the monitor, by screws. Attach with V-mount battery, and power the monitor by D-tap to DC cable.

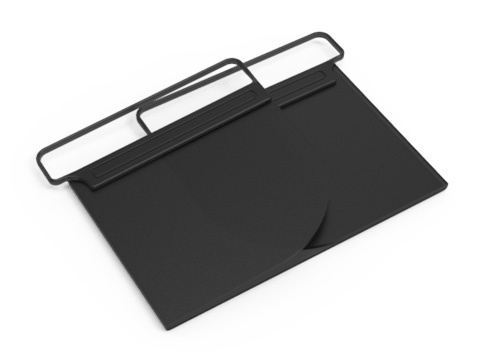

  • Sun hood

    Foldable sun hood for the monitor

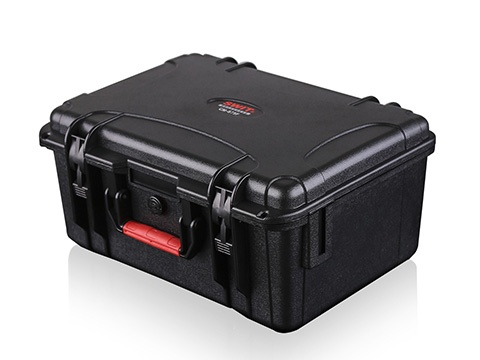

  • Carrying case

    Engineering case for monitor and all accessories
