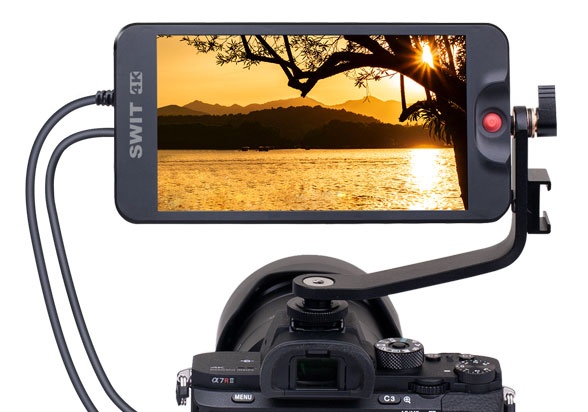

CM-55C 5.5 inch Full HD 4K-HDMI LCD Monitor

›  5.5-inch IPS LCD, 1920×1080 FHD

›  HDMI 1.4 (4K30p) input

›  2x 4x Quick zoom-in and Pan

›  Peaking focus assist and precision adjust

›  Waveform / Vector / Histogram

›  Build-in 30 kinds of De-log 3DLUTs

›  16x User 3DLUT upload by SD card

›  2-ch HDMI audio meters display

›  False color, Zebra, Anamorphic desqueeze

›  Single joystick quick operation

›  Battery slot for both NP-F & LP-E6

›  DC out with dummy battery adaptor


Features

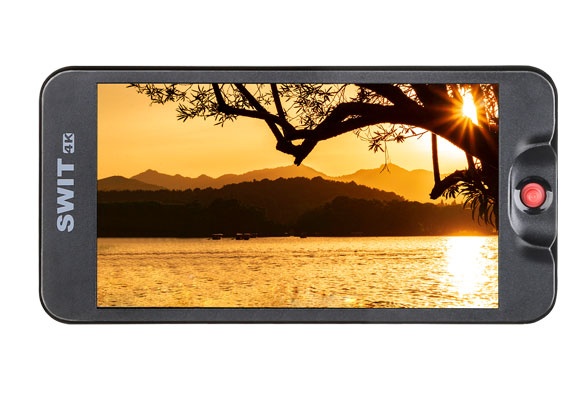

5.5-inch Full HD LCD

IPS panel with LED backlight

The CM-55C adopts a 5.5-inch LCD panel with LED backlight, The native resolution is Full HD 1920×1080, contrast 1000:1, brightness 450nit, and viewing angle is Horizontal/Vertical: 178°

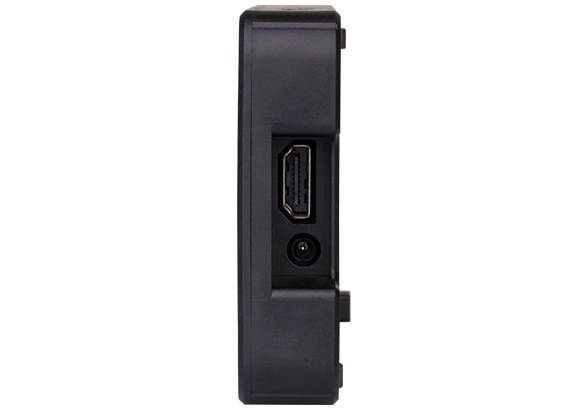

Video / Audio Interface

HDMI 1.4 (4K30p) input × 1
3.5mm audio output × 1

Single Joystick Operation

The monitor operation can be easily realized by only one Joystick:
Up: Quick Zoom-in mode
Down: Quick adjust backlight
Long Down: Delete current scene
Left/Right: Preset Scenes switching
Long Left: Enter Menu system
Long Right: Add a new scene



Scene Layout Edit and Switch

Different from the traditional multi-buttons monitors, the CM-55C adopts the preset scenes and switching operations. You can add up to 8 scenes, and add 8 function shortcuts to each scene. Scroll the joystick left / right to switch between the layout scenes easily, instead of complex menu buttons operations.

Quick Zoom-in and Pan

Scroll the joystick up, to zoom-in the image by 2x or 4x; and during zoom-in mode, press the joystick, you can easily pan the image up/down/left/right by the joystick.

Built-in Delog 3DLUTs

CM-55C provides more than 20 De-log 3DLUTs, Includes S-log2/3, V-log, C-log1/2/3, Log-C, J-log1, RedLog, BMD, FujiFilm, GoPro, DJI etc, to convert log mode to REC709 for all major cameras.

User 3DLUT upload

User creative 3DLUT cube or calibration 3DLUT cube can be uploaded to CM-55C by SD card. Max 16 user 3DLUT can be restored.

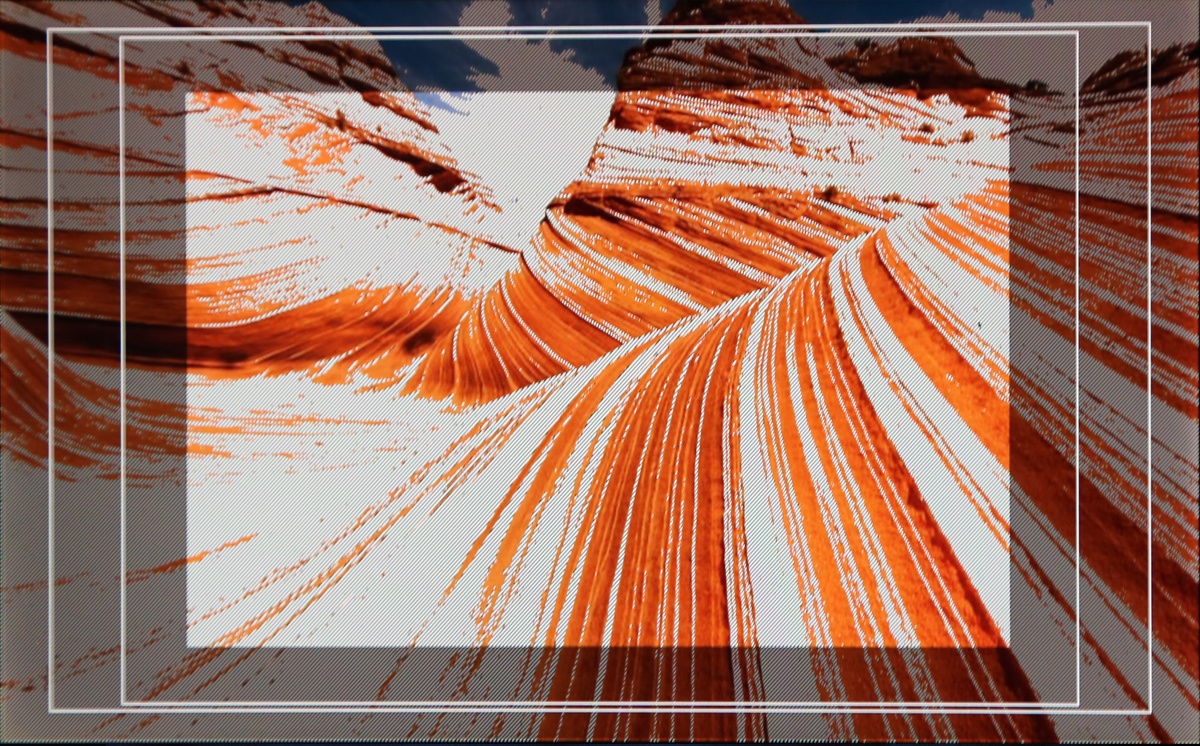

Super False Color Exposure Assist

Besides normal spectrum false color, the CM-55C supports more powerful Super False Color mode, including under-exposure / Over-exposure / 18 degree grey / Skin tone indications, to help you to get a correct exposure easily. The exposure indicators are calculated for different cameras. You can select the log curves from SONY 709/S-log2/3, Panasonic 709/V-log, BMD/4K, Canon C-log2/3, ARRI 709/Log-C, REDLogfilm, RED RG3/4/RL3G10.

Video Tools

Multi-scale Marker

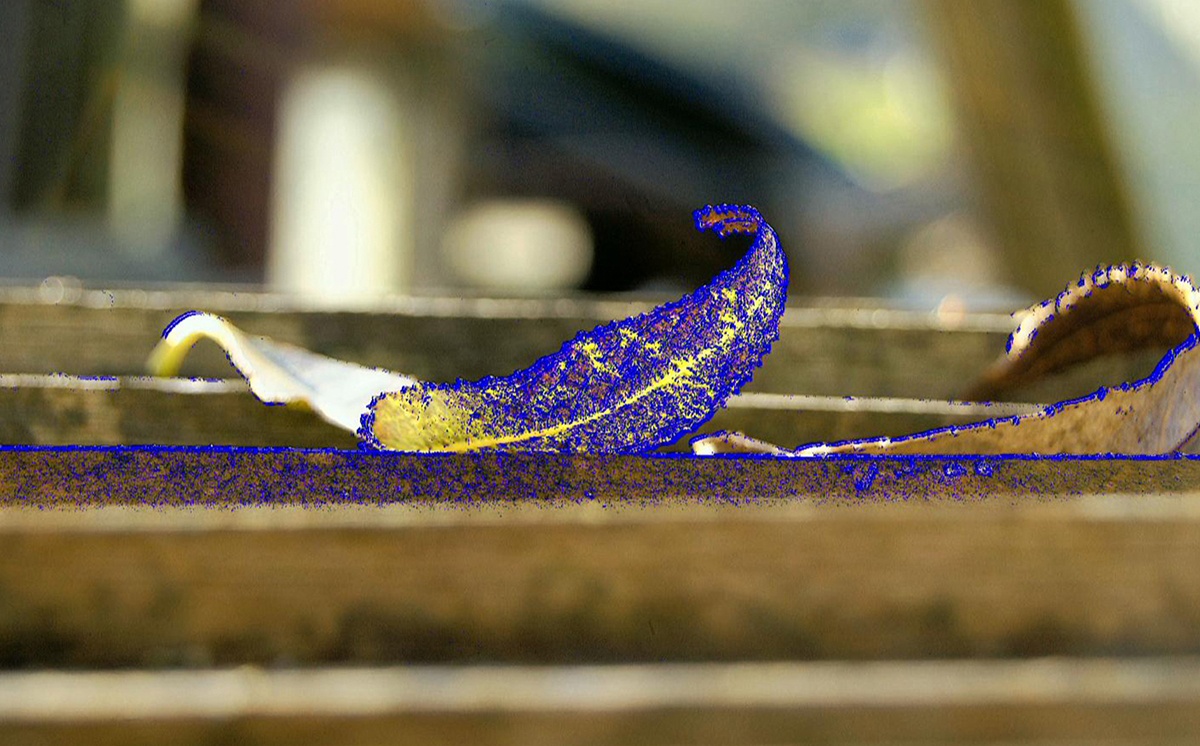

Peaking and Focus assist

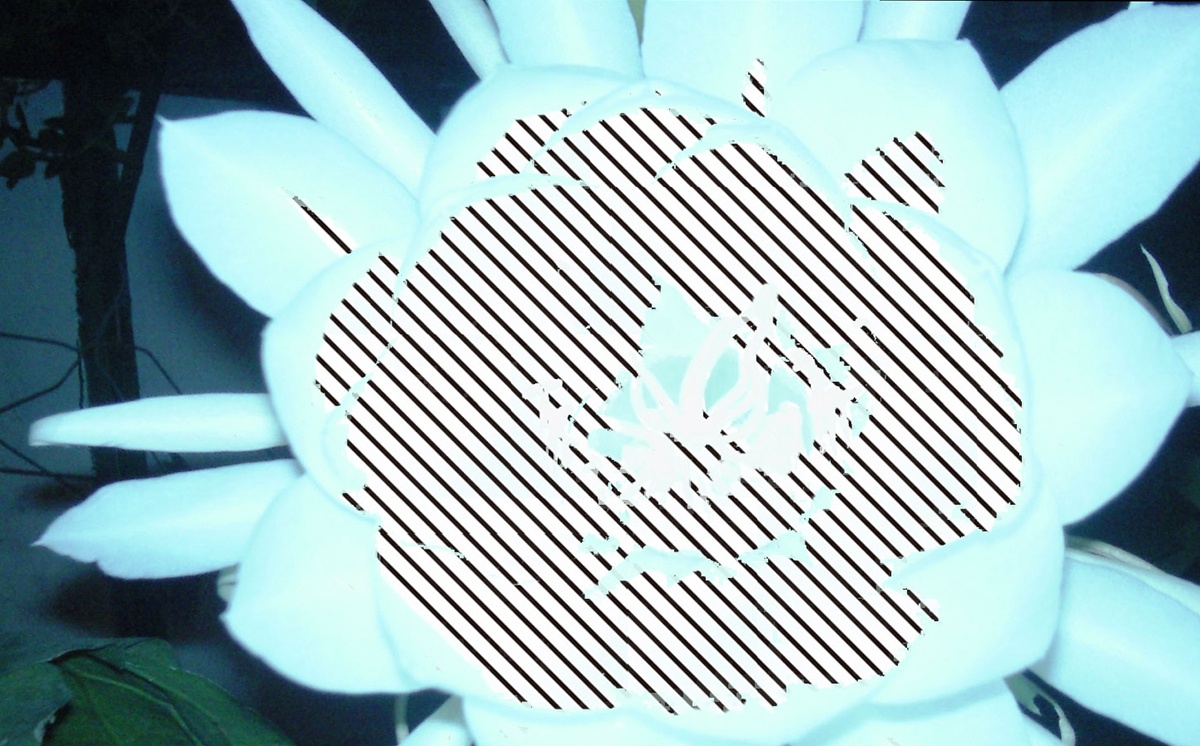

Zebra Stripes Over exposure warning

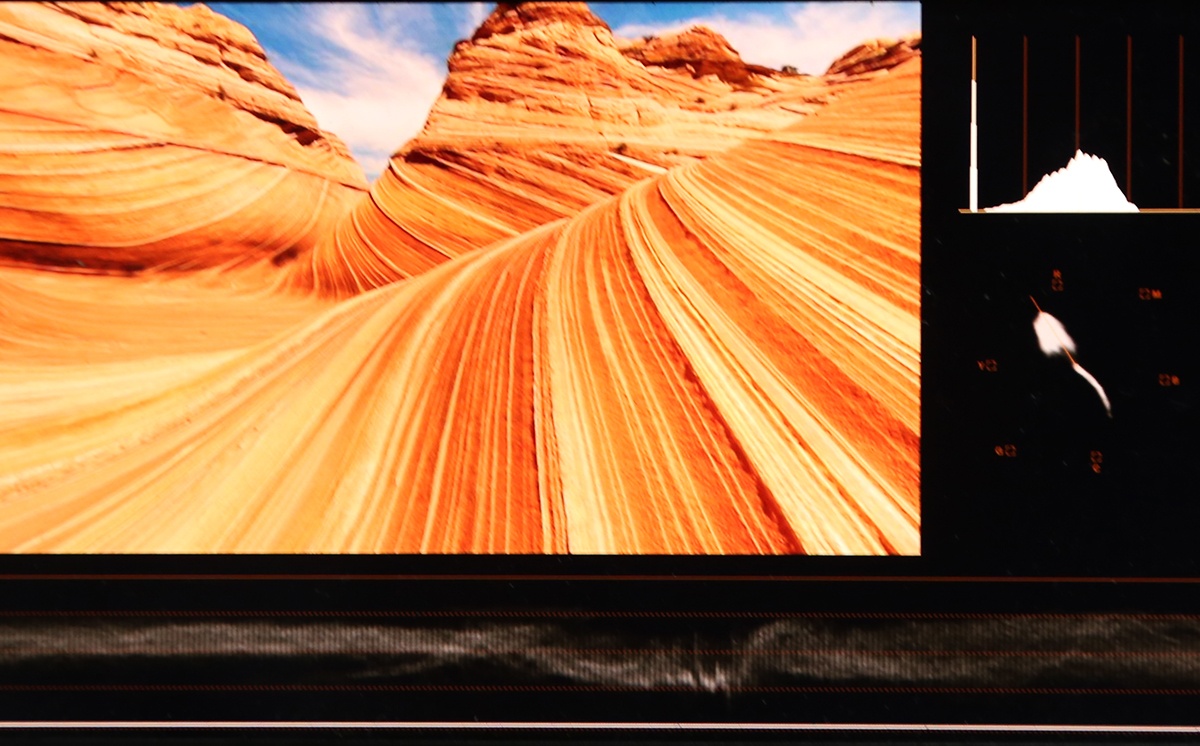

Waveform, Vector scope, Histogram

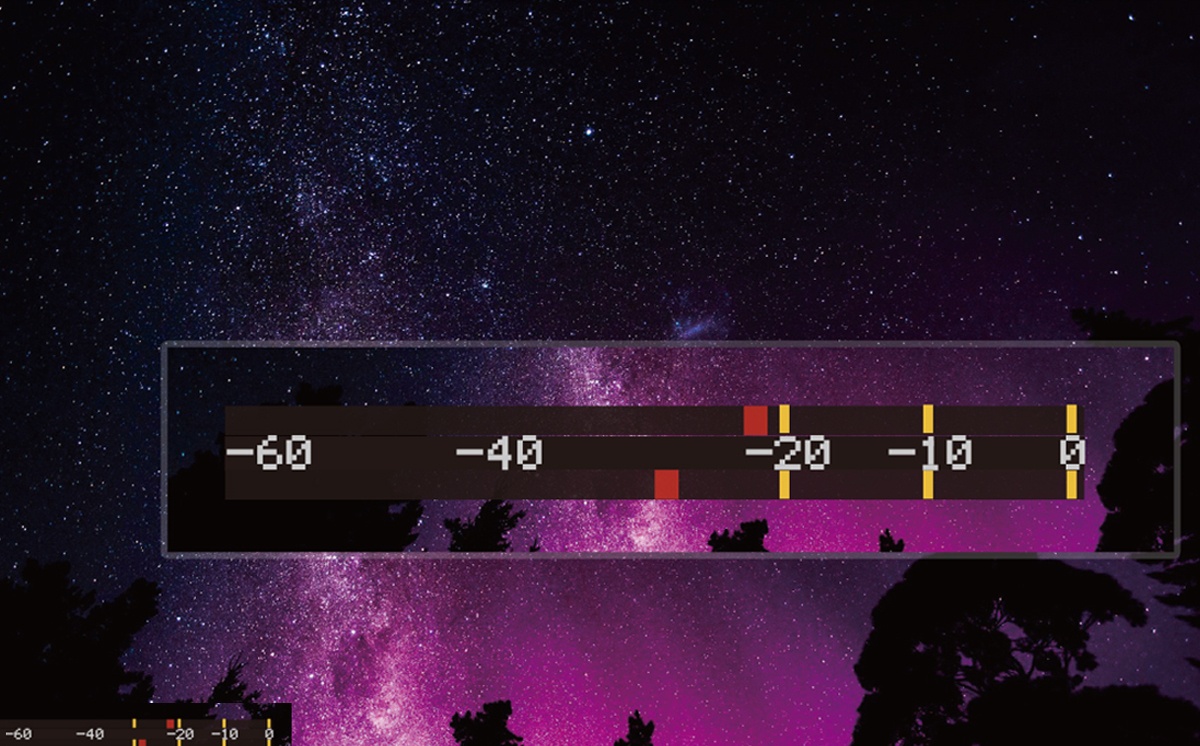

2-ch Audio meters

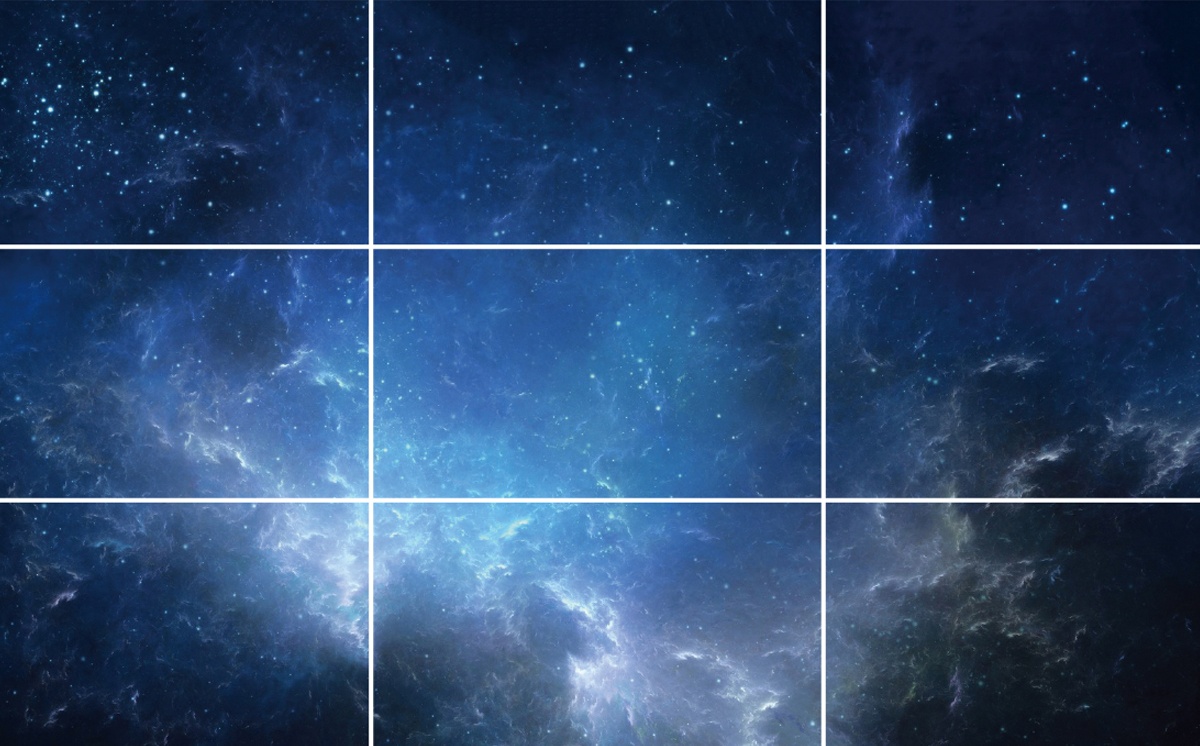

Crosshatch 3x3 to 10x10

Power Input

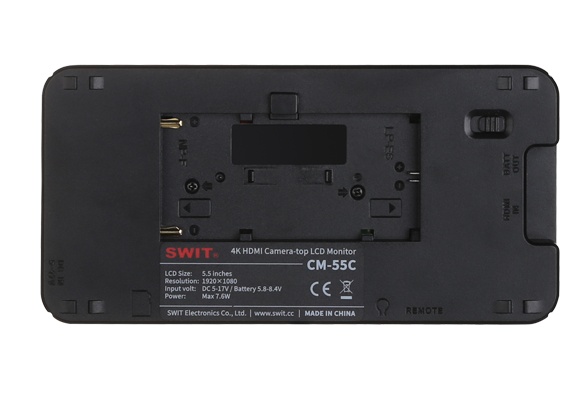

CM-55C has a built-in battery slot, supports both SONY NP-F and Canon LP-E6 batteries.
The power consumption is only 5.5W. The monitor also supports Micro USB power input.
You can use smart phone charger or power bank to power the monitor. (At least 5V/1.5A)

Dummy Battery Power Out

When the monitor is powered by battery, the BATT OUT socket can output battery DC power to cameras by using the dummy battery adaptors.
We provide the following dummy battery adaptors for option:
1. SONY NP-FW50 dummy battery adaptor
2. SONY NP-FZ100 dummy battery adaptor
3. Panasonic BLF19 dummy battery adaptor
4. Canon LP-E6 dummy battery adaptor



LCD Performance

Size

5.5 inches

Display area

120.96×68.04mm

Resolution

1920×1080

Aspect ratio

16:9 (4:3 adjustable)

Brightness

450cd/m2

Contrast

1000:1

Color

16.77 million colors

Viewing angle

Horizontal: 178°; Vertical: 178°

Input

HDMI-A ×1

HDMI 1.4 input

SD card ×1

3DLUT upload and Firmware upgrade

Output

3.5mm ×1

SDI, HDMI embedded audio output

Video Format

HDMI

4096×2160p (30 / 29.97 / 25 / 24 / 23.98)

3840×2160p (30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
480p / 576p

General

Input voltage

5-17V Micro USB DC input, 6-8.4V battery input

BATT Output voltage

The same as battery voltage

Power consumption

Max 5.5W

Working temperature

-10°C~+50°C

Working humidity

10%~90%

Storage temperature

-15°C~+60°C

Storage humidity

10%~90%

Dimensions

156×78×20mm

Net weight (main body)

160g
Basic Package

MSRP

$249

MSRP

$8222

MSRP

$8222

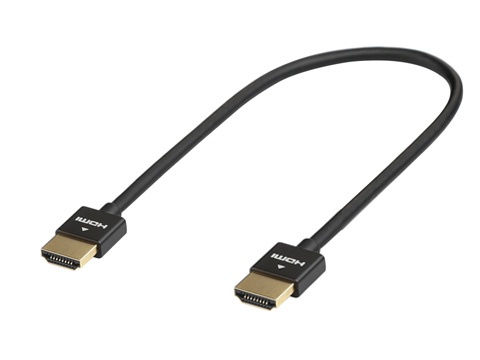

  • 30cm HDMI A to A cable

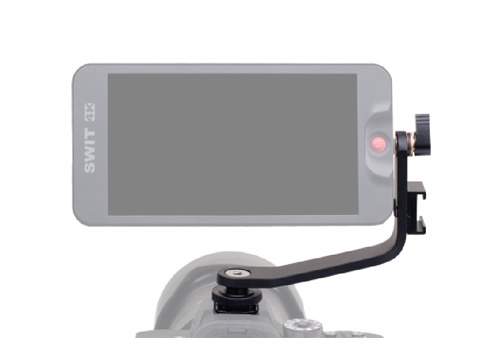

  • Tilt Arm Bracket

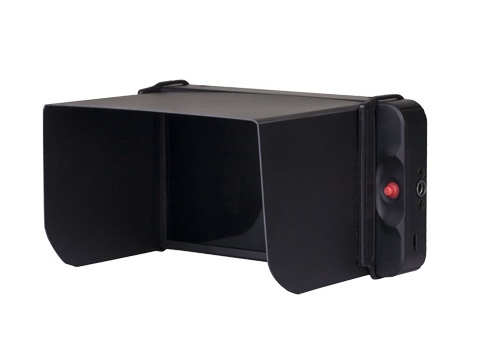

  • Sun hood

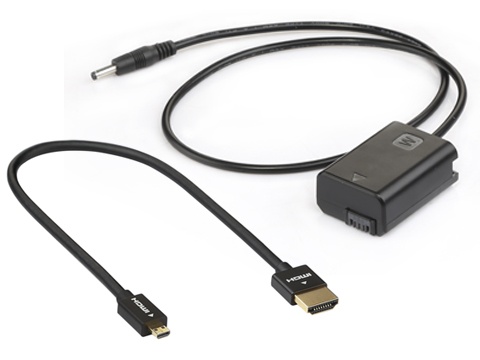

  • MA-55C1

    Add-on package includes: 1x NP-FW50 dummy adaptor and 1x 30cm HDMI-A to Micro HDMI cable, for SONY α7II/α7RII/α7SII

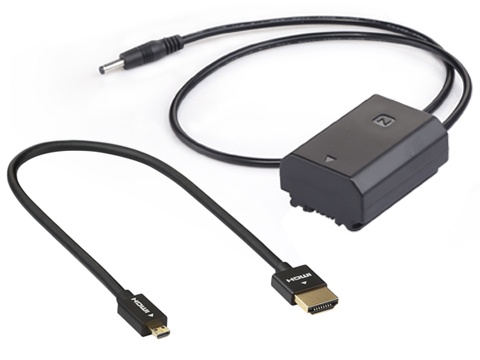

  • MA-55C2

    Add-on package includes: 1x NP-FZ100 dummy adaptor and 1x 30cm HDMI-A to Micro HDMI cable, for SONY α7III/α7RIII/α9

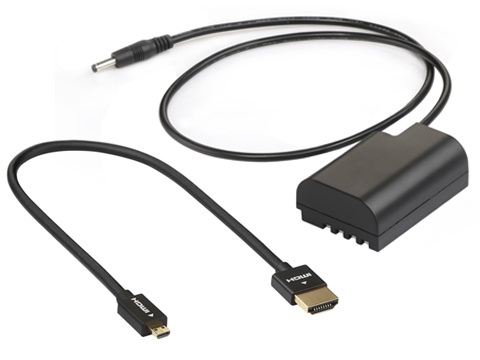

  • MA-55C3

    Add-on package includes: 1x BLF19 dummy adaptor and 1x 30cm HDMI-A to Micro HDMI cable, for Panasonic GH4/GH5/GH5S

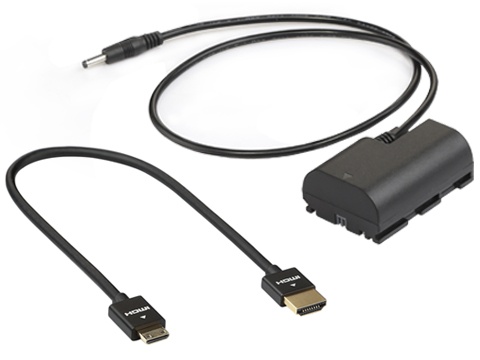

  • MA-55C4

    Add-on package includes: 1x LP-E6 dummy adaptor and 1x 30cm HDMI-A to Mini HDMI cable, for Canon EOS 5D2/3/4, 6D/2, 7D/2, etc
