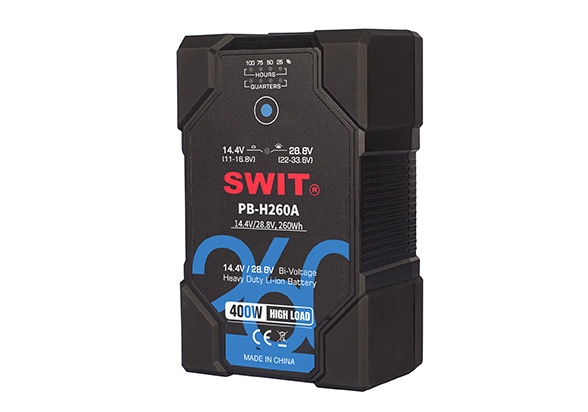

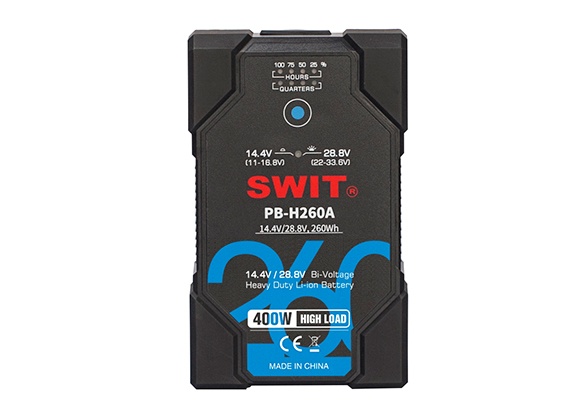

PB-H260A 260Wh High Load Bi-voltage Battery

›  14.4V/28.8V Bi-voltage auto switch

›  Power normal 11-16.8V equipment

›  Power high 22-33.6V equipment

›  Charge by normal 16.8V chargers

›  260Wh capacity, 400W constant load

›  16V D-tap output socket

›  6A fast charging support

›  8-LED remaining time indicators

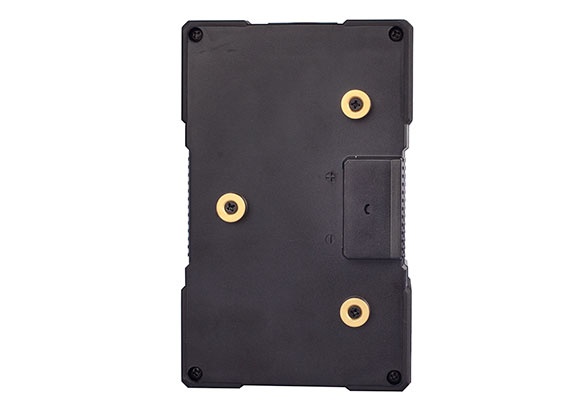

›  Normal Gold mount connection

›  1.5m drop-off proof

›  Multiple circuit protections


Features

14.4V/28.8V Bi-Voltage

Auto detect and switching

Many high power film devices are designed 22-33.6V high power input, to reduce current. If a standard Gold mount battery output high voltage directly, it will damage normal 14.4V voltage devices.
SWIT innovative “Bi-voltage” battery adopts standard Gold mount, and output 11-16.8V normal voltage or 22-33.6V high voltage by automatic recognition and switching, and compatible for all normal voltage chargers, safe and reliable.

Active 22-33.6V output

By SWIT TD-R210A adaptor

PB-H260A will detect SWIT dedicated Gold mount plate and output 22-33.6V high voltage.
With TD-R210A Dual Batteries Light Stand Adaptor, PB-H260A will output 22-33.6V, and 2x PB-H260A can output Max 48V/500W, for Skypanel S60/S120 100% output.

260Wh Capacity

400W High Load

PB-H260A consists of 24pcs high class 18650 battery cells, and reaches 260Wh high capacity.
On 11-16.8V output, the Max constant load is 250W;
On 22-33.6V output, the Max constant load is 400W
To drive high power cine camera and lights, and the high load battery will have longer life time than normal battery if always under full load power.

6A Fast Charging

Using SWIT S-3812A fast charger

PB-H260A supports 6A fast charging by SWIT S-3812A fast charger, to save up to 60% charging time, can be charged from 0 to 80% after 2 hours 15 minutes, and fully charged within 4 hours.

D-tap Socket

A D-tap DC output socket is equipped on the top side of the battery pack, to power the other on-camera equipment to- gether.
Under 14.4V (11-16.8V) output mode, D-tap output 11-16.8V and Max load 120W/10A;
Under 28.8V (22-33.6V) output mode, D-tap output con- stant 16V and Max load 50W/3A;

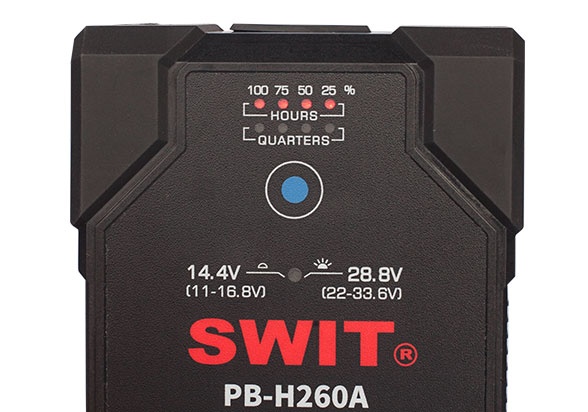

Digital Power Indicator

8-LED remaining time read

When battery is discharging:
Press "Power Check" button, Upper 4 LEDs display remaining working hours, and Lower 4 LEDs display remaining working minutes, under current output power.
The LED will flash when remaining time is less than 15 minutes to remind changing battery.
When battery is charging:
Upper 4 LEDs flashing constantly, indicates the real-time capacity percentage 25%, 50%, 75% and 100%.
When battery is free:
Press "Power Check" button, Upper 4 LEDs light up, to indicate the remaining capacity percentage 25%, 50%, 75% and 100%.

1.5m Drop-off Proof

Dual housing + Rubber cover

PB-H260A has innovative dual housing structure: the inner cell cage and outer anti-shock housing with rubber covers. The new structure makes the battery quite strong, anti-shock. The battery can survive from 1.5 meters any angles drop-off.

Nominal Voltage

14.4V or 28.8V auto switching

Capacity

260Wh

Max output power (14.4V)

Total: 250W

Pins: 250W / 20A

D-tap: 120W / 10A

Max output power (28.8V)

Total: 400W

Pins: 400W / 16A

D-tap (16V): 50W / 3A

Max charging current

16.8V / 10A

Mount Type

Gold mount

Charging Temperature

0 ~ 40°C
     Discharging Temperature-20°C ~ 50°C(Capacity and Max Load may decrease when operating below 0°

Dimension

162×101×75mm

Net weight

1.5kg
Basic Package

MSRP

$8222

MSRP

MSRP
