S-4040 24V/48V Power Station Box

›  PP+ Fiber glass case, strong and durable

›  Install 4 x V-mount batteries

›  4-pin regulated 24V 10A DC output

›  3-pin regulated 48V 10A DC output

›  LED voltage display and warning

›  Charging without take out batteries

›  Intelligent protective circuit design

Features

Long-lasting Power Solution for High Draw Cine Gears

S-4040 power station box can install 4 pieces of V-mount batteries and output regulated 24V or 48V DC for high power cine cameras or lights, with higher draw and longer power supply time comparing to single Li-ion battery.

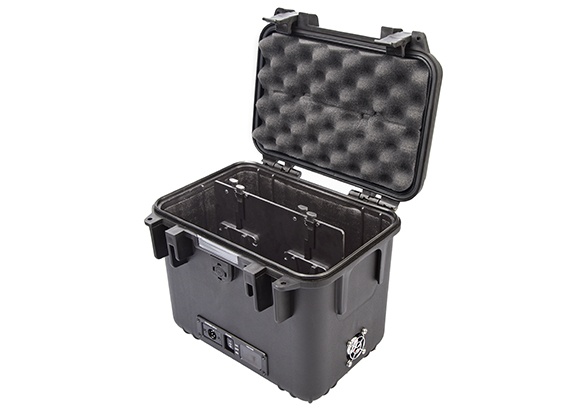

PP+ Fiber glass case

S-4040 adopts PP+ Fiber glass case which is high intensity, high toughness and high temperature resistant.

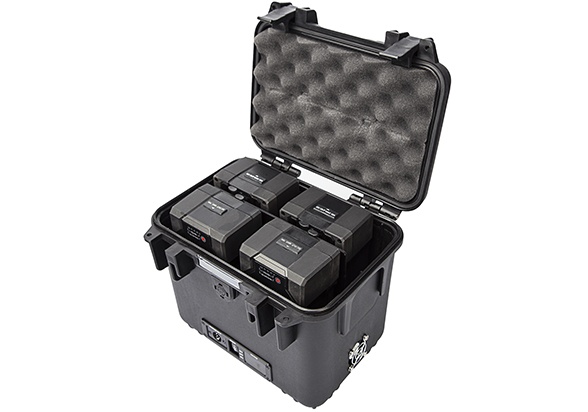

Power with 4 V-lock batteries

Considering the size, weight, power effeciency, and usability, S-4040 is designed to be powered with 4 V-lock batteries. With auto-balanced circuite design, the different models and capacities batteries can be mixed.

24V/48V DC output

S-4040 switched with 1x 4-pin XLR regulated 24V DC output and 1x 3-pin XLR regulated 48V DC output, max 10A draw. It's recommended use 4 same model and same capacity batteries to reach 10A draw. The power station box requires 4 batteries to output 48V DC, and no limitation of battery quantity to output 24V DC.

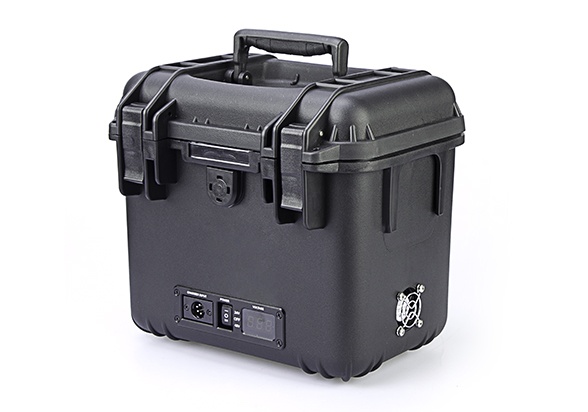

Battery voltage display

The S-4040 LED displays real-time average voltage of inner batteries, to judge the remaining capacity. The LED panel will keep flashing to remind you to change or charge batteries.

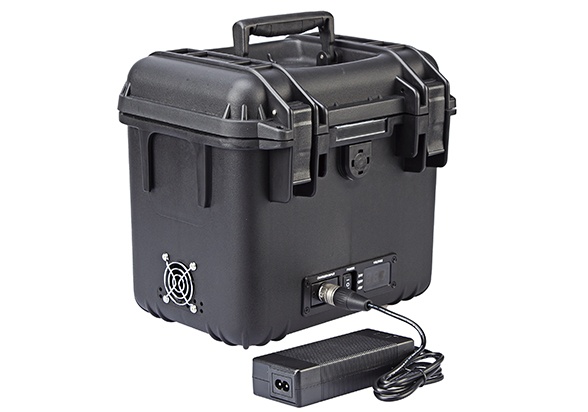

Charging with batteries inside

With the supplied 5A charger, user can charge the batteries in the S-4040 directly, without taking out of them.

Cooling fan design

The fan keeps dissipating heat from the box, and makes it safe when working in high temperature environment.

Input

DC 16.8V 5A (Charging)

Output

DC 48V 10A, 480W or

DC 24V 10A, 240W

Working temperature:

-20°C~+40°C

Working humidity:

10%~90%

Storage temperature:

-15℃~﹢60℃

Dimensions

290mm x 221mm x 278mm

Net weight

Net 3.1kg; With package 3.85kg
Basic Package

MSRP

MSRP

MSRP

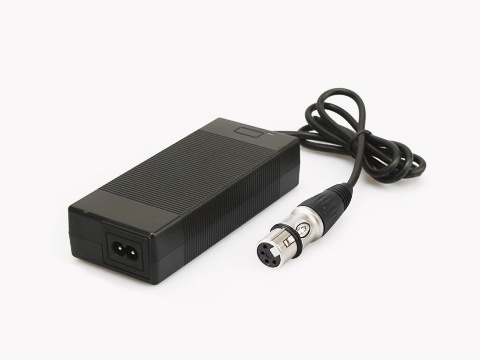

  • 4-pin XLR 5A Charger
