› Portable 3G/HD/SD-SDI to Optical Fiber Converter
› 1 SDI input, 1 Fiber output, and 1 SDI loop output
› Single mode Optical Fiber, LC connector
› Max 20km reliable transmission
› Support hot swap of the optical module
› Power / SDI input status indicator
› Pole-tap 6-18V DC power input
› Heavy duty aluminium housing
› Bottom screw threads for installing

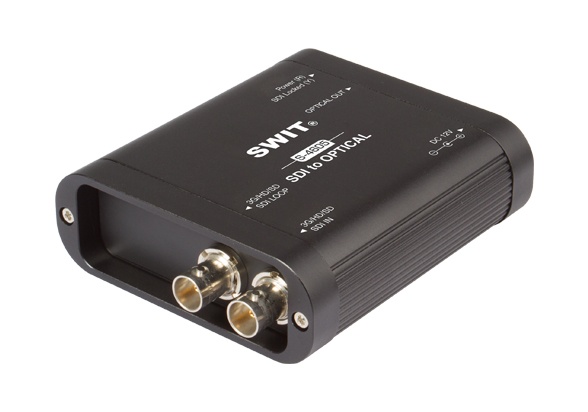

Portable Mini Converter
SDI to Optical Fiber
S-4605 is a mini converter for SDI
to LC single mode Optical Fiber
conversion, widely used on trans-
mitting SDI in a long distance.

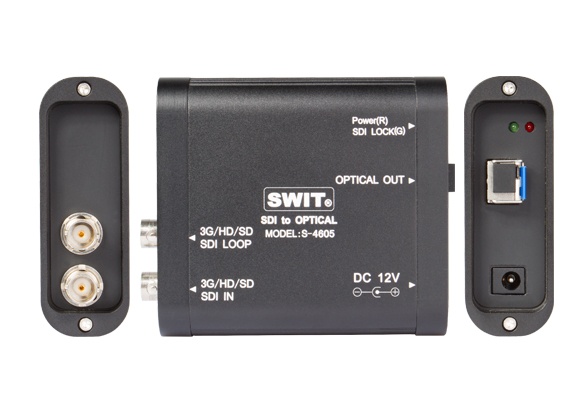

Input and Output
S-4605 offers:
1× 3G/HD/SD-SDI input
1× 3G/HD/SD-SDI loop output (Reclocked)
1× LC Optical Fiber output
Encoder and Decoder
Working together with S-4606
The S-4605 convert SDI to Optical fiber at encoder end, and you can use SWIT S-4606 to convert Optical fiber back to
SDI at the decoder end. The reliable transmission distance is up to 20km.

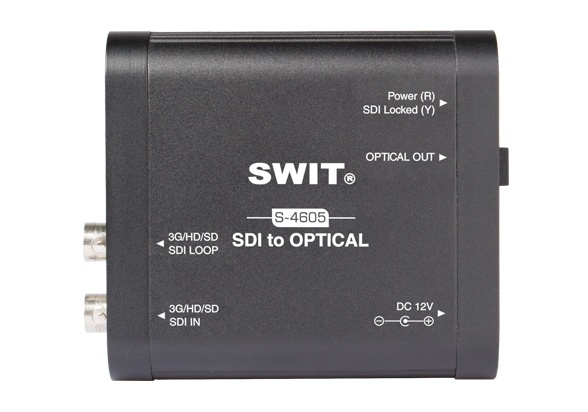

Status Indicators
Power / Input
S-4605 provides 2 LED indictors, to check if
the power is connected, and if the input SDI is
recognized.
Power Supply
The mini converter is powered by pole-tap DC socket. The package includes an
AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.
Heavy Duty Housing
The S-4605 mini converter adopts
unibody aluminium alloy housing, strong
for field using and protects the BNC
connectors effectively.

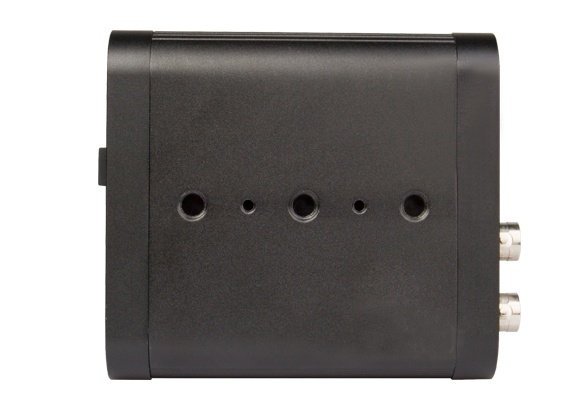

Installation
S-4605 provides the bottom 1/4-inch screw threads for fixing on cameras, and
an installing plate is supplied in the package, for fixing on wall and bind-
ing the BNC cables and optical fibers.
Input
BNC×1 | 3G/HD/SD-SDI input |
Output
BNC ×1 | 3G/HD/SD-SDI loop output |
LC ×1 | Converted Optical fiber output |
Video Format
SDI | 1080p (60 / 59.94 / 50) |
| 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94) | |
| 576i (50) | |
Optical Fiber | SMPTE 297-2006 |
| 1310nm wavelength |
General
Power | ≤3W |
Working Voltage | DC 6-18V |
Working Environment | Temperature: 0°C-+70°C, Humidity:10%-90% |
Dimensions | 98×84×29 mm |
Net weight | Net 220g; With package 0.5kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

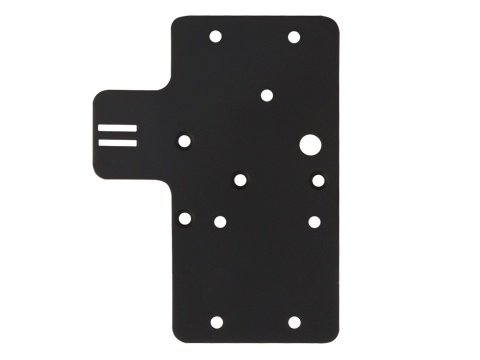

Installation plate
-

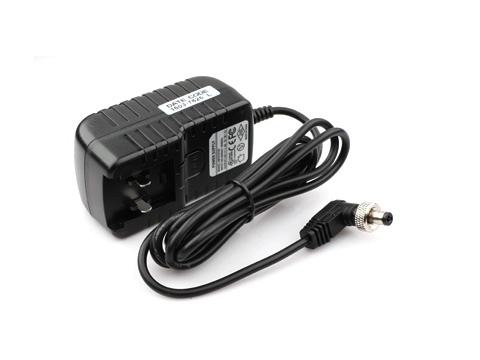

AC-DC Adaptor
