› Portable Audio to SDI Embedder
› 3G/HD/SD-SDI supported
› Embed audio to any 2 channels of SDI first 8-ch positions
› AES/EBU audio input and embed
› 6.35mm balanced audio input and embed
› 2x SDI output with new embedded audio
› Power/input/output status indicator
› Pole-tap 6-18V DC power input
› Heavy duty aluminium housing
› Bottom screw threads for installing

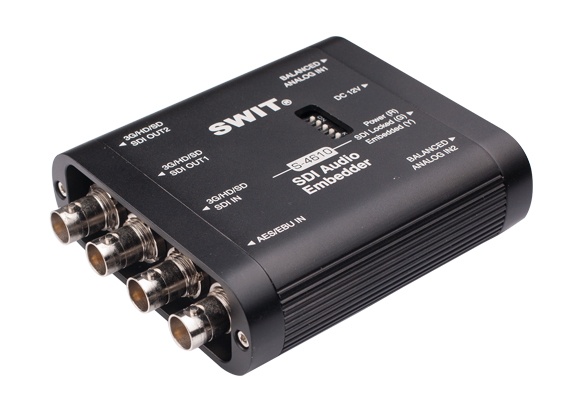

Portable Mini Converter
SDI audio Embedder
S-4610 is a portable mini
converter of SDI audio embedder,
supports digital audio or analog
audio to embed, and SDI up to
3Gb/s. It’s widely used in
broadcast field production and
professional audio/video
conversion and transmission.

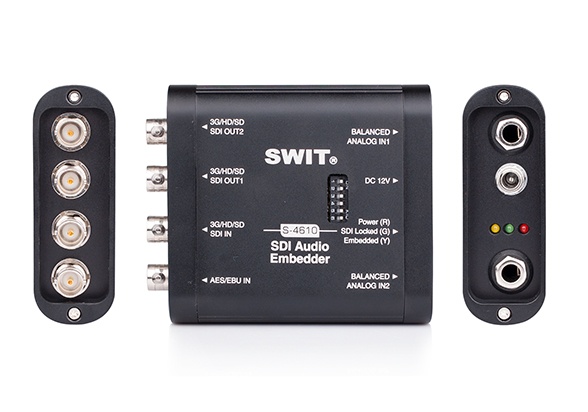

Input and Output
S-4610 provides:
1x 3G/HD/SD-SDI input
1x AES/EBU digital audio input (2-ch)
2x 6.35mm analog audio input (balanced)
2x New embedded 3G/HD/SD-SDI output
*If both AES/EBU audio and analog audio is
connected, only AES/EBU audio can be embed-ded

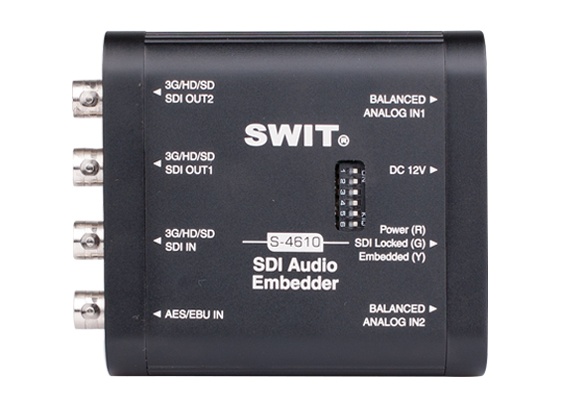

De-embed Channel Selection
By 6 switchers
S-4610 can embed 2-ch audio to any 2 positions of SDI first 8 audio channels. User can select the channel number to be

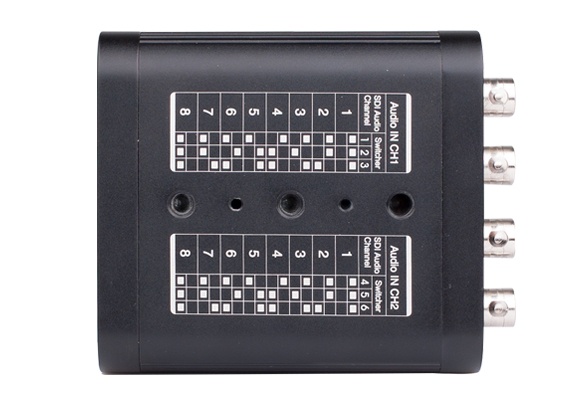

embedded by the 6 switchers on the front panel of the product. And on the rear side, S-4610 provides the description of the 6
switchers for reference.
Status Indicators
Power / SDI / Embedder
S-4610 provides 3 LED indictors, to check if
the power is connected, if the SDI input is
recognized, and if new embedded SDI
outputs.
Power Supply
Pole-tap DC input
The mini converter is powered by pole-tap DC socket. The

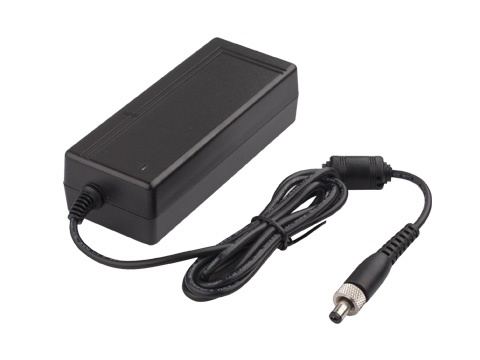

package includes an AC-DC power adaptor, and you can also
connect DC cable from 6-18V batteries.
Heavy Duty Housing
The S-4610 mini converter adopts
unibody aluminium alloy housing, strong
for field using and protects the
audio/video connectors effectively.
Installation
S-4610 provides the bottom 1/4-inch screw threads for fixing on cameras, and
an installing plate is supplied in the package, for fixing on wall and binding the
BNC/audio cables.
Input
BNC ×1 | 3G/HD/SD-SDI input ×1 |
BNC ×1 | AES/EBU digital audio input ×1 |
6.35mm ×2 | Analog audio (balanced) input ×2 |
Output
BNC ×2 | 3G/HD/SD-SDI embedded output ×2 |
Video Format
SDI | 1080p (60 / 59.94 / 50) |
| 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94) | |
| 576i (50) |
Audio Formats
Digital audio | Type: AES/EBU |
| Output level: 5Vp-p | |
| Sample frequency: 48KHz | |
Analog audio | Max output level: +24dbu |
| Bandwidth: 20Hz-20KHz |
General
Power consumption | ≤3W |
Working Voltage | DC 6-18V |
Working Environment | Temperature: 0°C-+70°C, Humidity:10%-90% |
Dimensions | 98×84×29 mm |
Net weight | Net 235g; With package 0.55kg |
