› Portable DVI to 3G/HD/SD-SDI Converter
› 1 DVI input, 1 analog audio input, 2 SDI output
› Embed Analog audio into SDI output
› Power/input/output status indicator
› Pole-tap 6-18V DC power input
› Heavy duty aluminium housing
› Bottom screw threads for installing
Portable Mini Converter
DVI (DVI-D, 18+1) to SDI
S-4612 is a mini converter for DVI
to SDI conversion, (DVI-D, 18+1
connector), which can be widely
used for DVI video source to
deliver and broadcast, support up
to 1080p 50/60 format DVI to
convert to SDI.

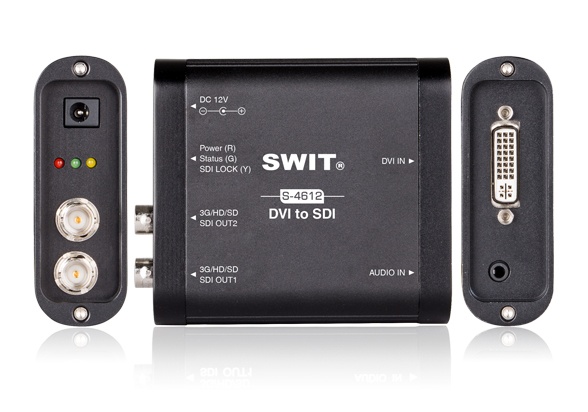

Input and Output
S-4612 offers:
1× DVI-D (18+1) input
2× 3G/HD/SD-SDI output (Reclocked)
1× 3.5mm audio input
(The DVI to SDI supports the same format conversion only.)
S-4612 features low SDI jitter and SDI re-clocking so that you can use the longest SDI cable lengths and maintain pristine quality images.
Embed Analog audio into SDI output
Analog audio input and embed to SDI
S-4612 support 3.5mm analog audio input, and can be
embedded into SDI to output. The audio supports 48kHz
sample rate.

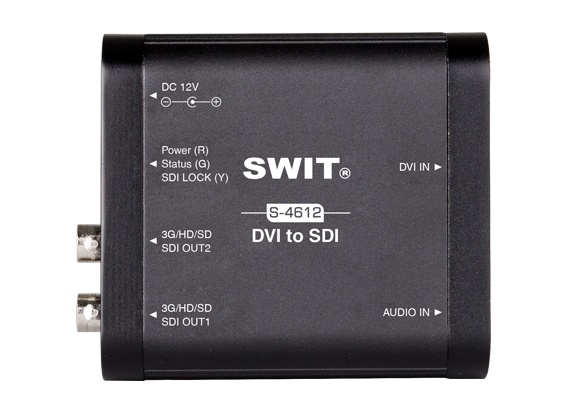

Status Indicators
Power / Input / Output
S-4612 provides 3 LED indictors, to check if
the power is connected, and if the
input/output signal is delivered.
Power Supply
Pole-tap DC input
The mini converter is powered by pole-tap DC socket. The
package includes an AC-DC power adaptor, and you can also
connect DC cable from 6-18V batteries.

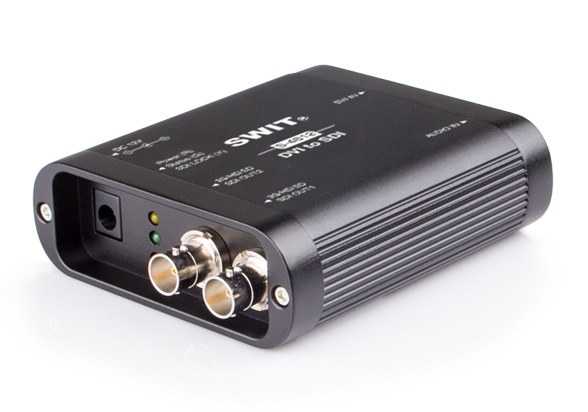

Heavy Duty Housing
The S-4612 mini converter adopts
unibody aluminium alloy housing, strong
for field using and protects the BNC
connectors effectively.
Installation

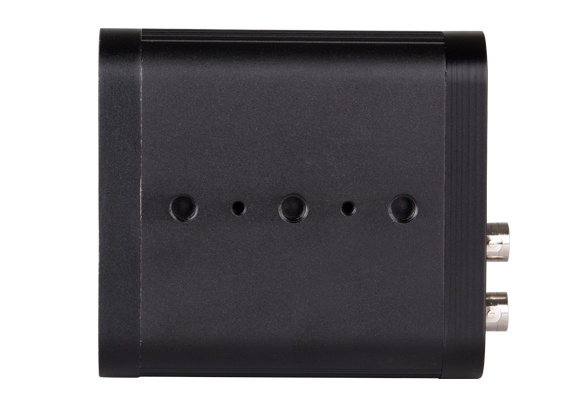

S-4612 provides the bottom 1/4-inch screw threads for fixing on cameras, and
an installing plate is supplied in the package, for fixing on wall and binding
the BNC/DVI cables.
Input
DVI-D ×1 | DVI input |
3.5mm×1 | Analog audio input |
Output
BNC ×2 | Converted 3G/HD/SD-SDI output |
Video Format
SDI | 1080p (60 / 59.94 / 50) |
| 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94) | |
| 576i (50) | |
DVI | 1080p (60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) | |
| 480i / 576i | |
Audio | 48KHz Sync |
General
Power | ≤3W |
Working Voltage | DC 6-18V |
Working Environment | Temperature: 0°C-+70°C, Humidity:10%-90% |
Dimensions | 98×84×29 mm |
Net weight | Net 207g; With package 0.5kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

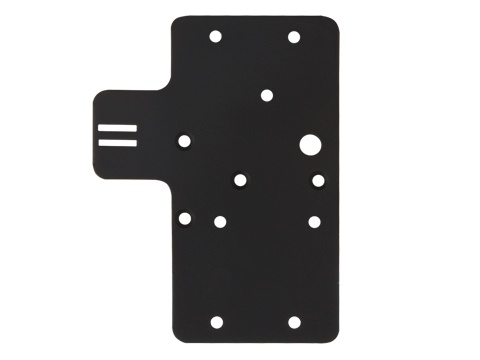

Installation plate
-

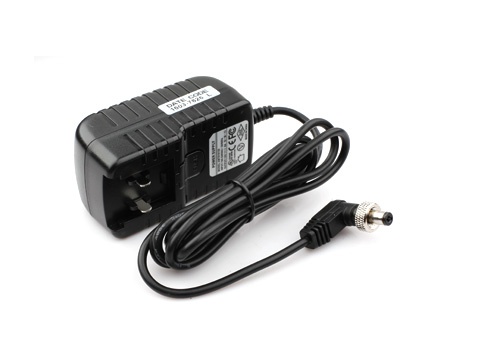

AC-DC Adaptor
