› Portable 3G/HD/SD-SDI to DVI Converter
› 1 SDI input, 1 DVI output, and 1 SDI loop
› SDI audio output via 3.5mm socket
› Power/input/output status indicator
› Pole-tap 6-18V DC power input
› Heavy duty aluminium housing
› Bottom screw threads for installing
Portable Mini Converter
SDI to DVI, (DVI-D, 18+1)

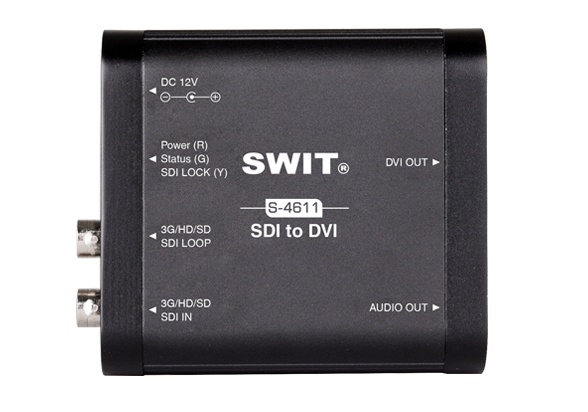

S-4611 is a mini converter for SDI
to DVI conversion, (DVI-D, 18+1
connector), which can be widely
used to display up to 3Gb/s
broadcast SDI video on DVI
monitor, televisions, LED board or
projectors.

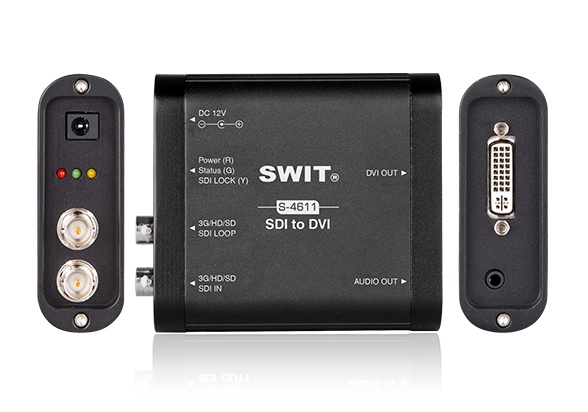

Input and Output
S-4611 offers:
1× 3G/HD/SD-SDI input
1× 3G/HD/SD-SDI loop output (Reclocked)
1× DVI-D output
1× 3.5mm audio output
(The SDI to DVI supports the same format con-
version only.)
Embedded Audio output
Via 3.5mm socket
The SDI embedded audio ch-1 & ch-2 can be converted to
analog audio and output via 3.5mm headphone socket,
supports 48kHz sample rate.
Status Indicators
Power / Input / Output
S-4611 provides 3 LED indictors, to check if
the power is connected, and if the
input/output signal is delivered.
Power Supply
Pole-tap DC input
The mini converter is powered by pole-tap DC socket. The
package includes an AC-DC power adaptor, and you can also
connect DC cable from 6-18V batteries.

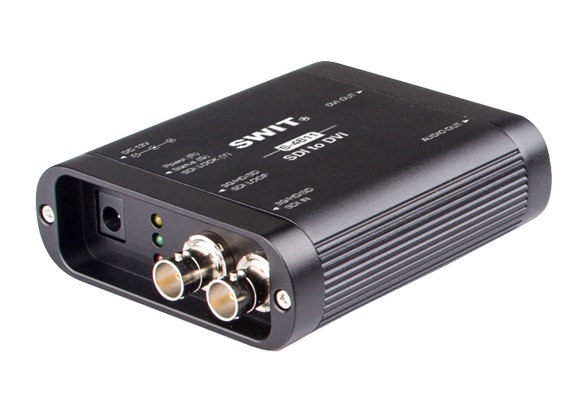

Heavy Duty Housing
The S-4611 mini converter adopts
unibody aluminium alloy housing, strong
for field using and protects the BNC
connectors effectively.

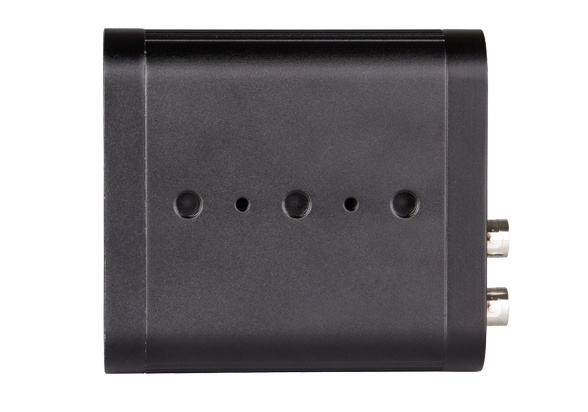

Installation
S-4611 provides the bottom 1/4-inch screw threads for fixing on cameras, and
an installing plate is supplied in the package, for fixing on wall and binding
the BNC/DVI cables.
Input
BNC ×1 | 3G/HD/SD-SDI input |
Output
BNC ×1 | 3G/HD/SD-SDI loop output |
DVI-D ×1 | Converted DVI output |
3.5mm ×1 | SDI audio output |
Video Format
SDI | 1080p (60 / 59.94 / 50) |
| 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94) | |
| 576i (50) | |
DVI | 1080p (60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) | |
| 480i / 576i | |
Audio | 48KHz Sync |
General
Power | ≤3W |
Working Voltage | DC 6-18V |
Working Environment | Temperature: 0°C-+70°C, Humidity:10%-90% |
Dimensions | 98×84×29 mm |
Net weight | Net 209g; With package 0.5kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

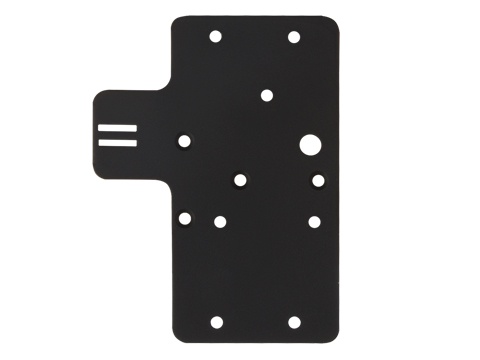

Installation plate
-

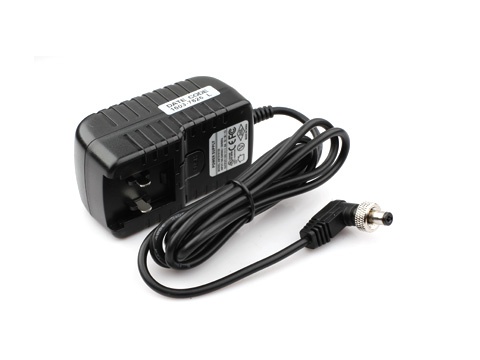

AC-DC Adaptor
